Mooney Power Tug |
|
|
|
When was the last time you had to get your Mooney into the hanger by yourself? Yes, it can be done, but it can also be a back wrenching job if the ramp apron has even a small slope away from to hanger threshold to preclude flooding. The M03 Powertug is the minature superhero that will provide the back saving assistence everyone appreciates.
Unique "powered" mount and dismount.
Small and light only 7 pounds! You can take it with you.
No battery! Electrical power is supplied by the Mooney electrical bus via a connector* mounted deep n the passenger side cabin air intake vent.
* Mating Power interface connector is included.
Chain drive (No fricton roller to tear up nosewheel tire.) |
|
|
|
 |
|
|
|
|
|

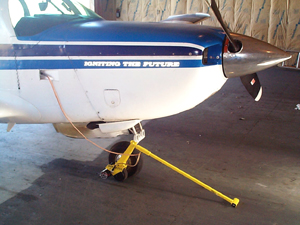

M03 Powertug Installed on Mooney 231
M20K |
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
Position Tug
Behind Mooney Axle |
|
|
|
|
|
|
Pulse Power (Forward to Mount and Reverse to dismount) |
|
Insert Guidebar |
|
|
|
|
|
|
|
|
"Powered" Load / Unload Sequence |
|
|
|
Simply position the Powertug behind the Mooney nosewheel axle and pulse the Forward power control. The Powertug will crawl under the axle and lift it into the Powertug saddle.
Insert the Guide bar handle and your are ready to roll. |
|
|
|
The Power Tug Towbar handle is supplied with a control cable and a Forward/ Off / Reverse direction Switch. |
|
|
|
 |
|
|
 |
|
|
|
|
 |
|
|
|
|
|

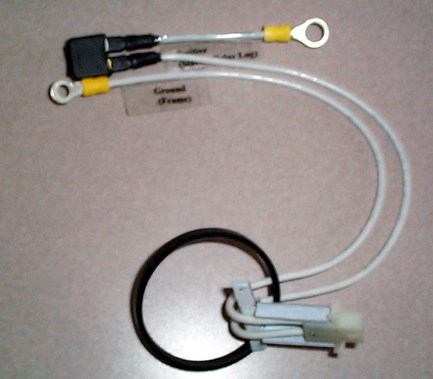

Power Tug mating connector & circuit breaker Installs in right seat passanger air intake vent. |
|
|
|
|
Connector Installed in deep recess of right side air intake vent. |
|
|
|
|
|
|
|
|
Guidebar T handle with
Forward / Reverse
Direction Thumbswitch |
|
|
|
|
|
|
|
|
|
|
|
|
|
Price $650
