PROMOSI KOMPETENSI SISWA SMK
TINGKAT NASIONAL – XII Th. 2004
KELOMPOK
TEKNOLOGI SEMARANG, 20 – 24 JUNI 2004
|
|
Prototype Design
1. The
competitor must choose to
assemble or design
only one complete circuit by choosing from the components supply the
competition may design only one of the following items as follows. 1.1
Regulator circuit
or 1.2
Speaker protector
circuit or 1.3
Pulse generator
circuit or 1.4 Any other from the competitor ’s own idea, using the components available. 2.
The competition must do as follows ; 2.1
Draw the completed circuit under design. 2.2
Give the name of the circuit design. 2.3
List the components using in the circuit design. 2.4
The circuit under design must do function properly
when testing on
the d.c. power supply. Time :
2 Hours |
|
PROMOSI KOMPETENSI SISWA SMK
TINGKAT NASIONAL – XII Th. 2004
KELOMPOK
TEKNOLOGI SEMARANG, 20 – 24 JUNI 2004
|
|
Number |
Description |
Quantity |
1 |
Relay DPDT
12 V |
1
|
2 |
R 8.2 K
Ohm |
3 |
3 |
R 100 Ohm |
4 |
4 |
R 39 K Ohm |
2 |
5 |
R 1.5 K
Ohm |
2 |
6 |
R 10 K Ohm |
2 |
7 |
R 10 Ohm |
2 |
8 |
R 500 Ohm |
2 |
9 |
R 1 K Ohm |
2 |
10 |
VR 1 M Ohm |
1 |
11 |
VR 10K Ohm |
1 |
12 |
C 100 uF
16 V |
3 |
13 |
C 100 uF
35 V |
2 |
14 |
C 470 uF
35 V |
2 |
15 |
C 1uF
50 V |
2 |
16 |
D 1N4148 |
4 |
17 |
D 1N4001 |
4 |
18 |
ZD 12V |
1 |
19 |

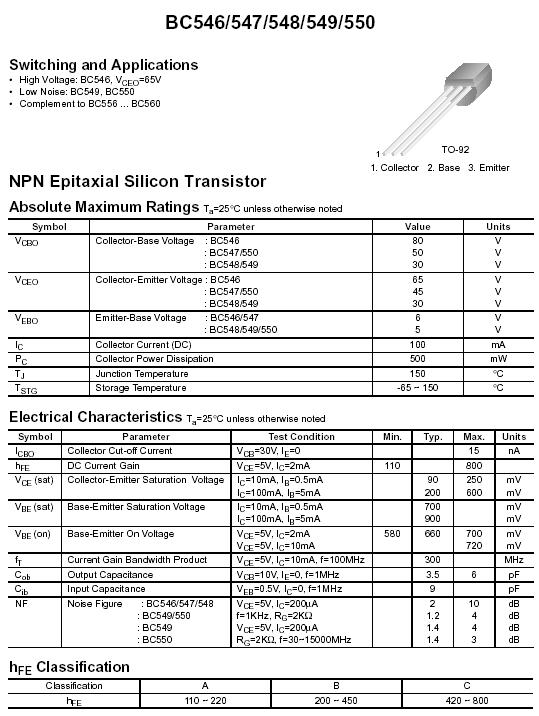

TR BC547 |
2 |
20 |

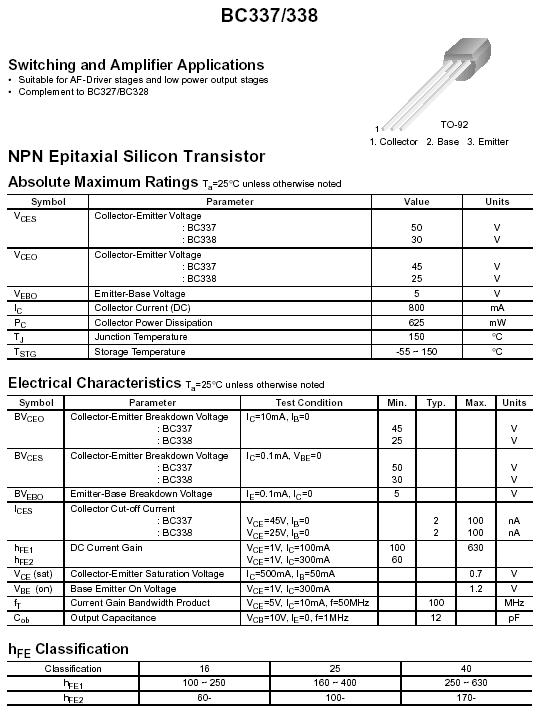

TR BC337 |
2 |
21 |

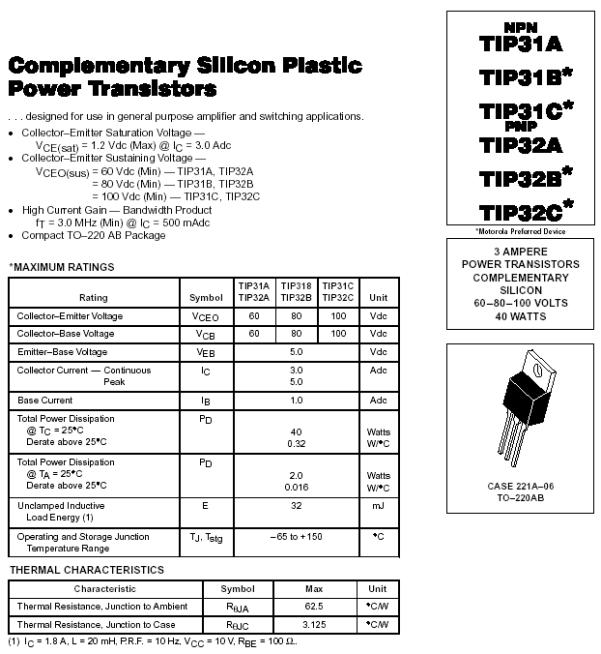

TR TIP31A |
1 |
22 |
IC 7812 |
1 |
23 |

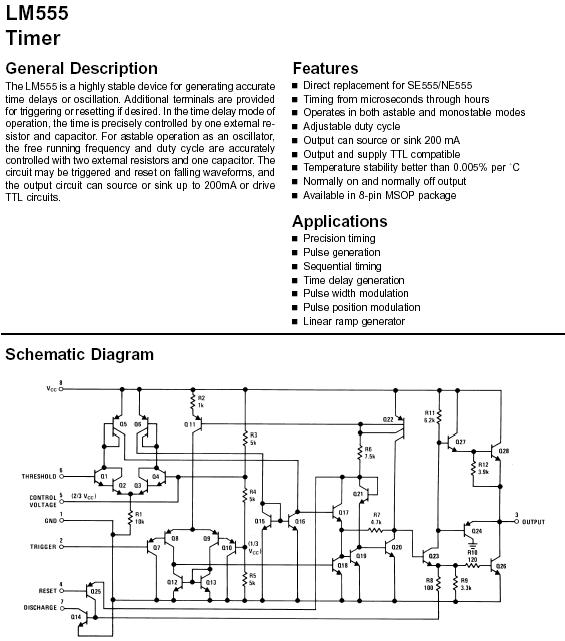

IC 555 |
1 |
24 |
LED |
4 |
Remark ; The components listed above
are take from the following circuits :
1)
Regulator circuits.
2)
Speaker protector circuit
3)
Pulse generator circuit
Connection
Pin LM7812
