1.
The Competitor will inspect the components and tools within 30 minutes.
The competitors are allowed to change incorrect or fault components with no loss
of score. The competitor who wants to ask questions or change components will
raise their hands for permission.
2.
The competitors will assembly a “Equipment depend on the host
province” within the prescribed time of 4 hours.
3.
The competitors must adjust the Digital Clock Circuit in order to
function properly.
4.
On completion, the competitors will submit their assembled equipment to
the referee and leave the area immediately.
Time : 4 hours 30 minutes

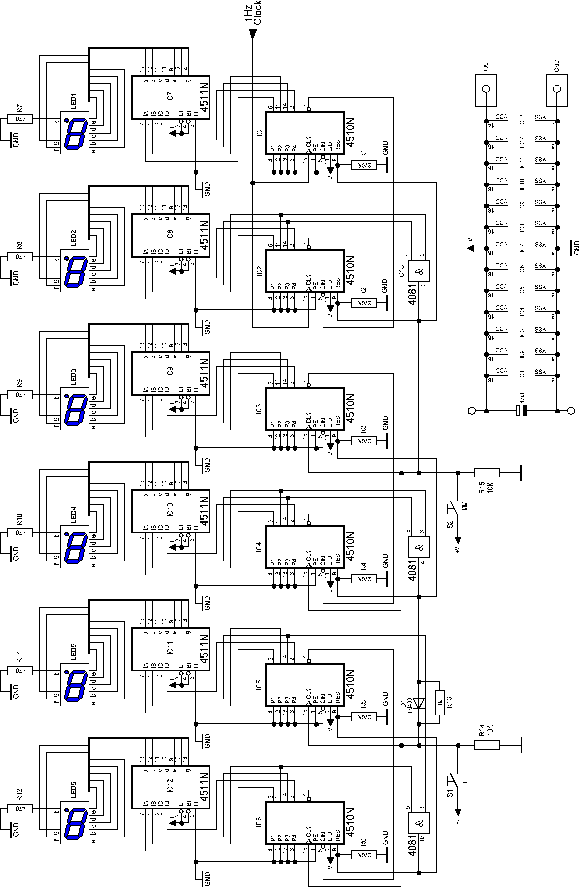

SCHEMATIC
DIGITAL CLOCK

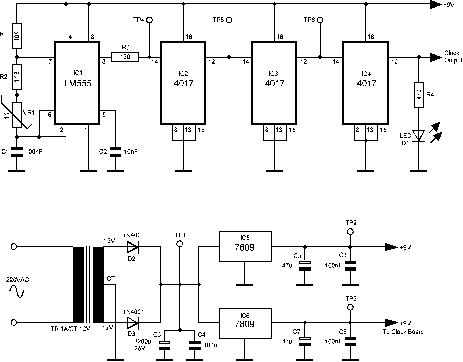

SCHEMATIC
POWER SUPPLY AND 1Hz CLOCK

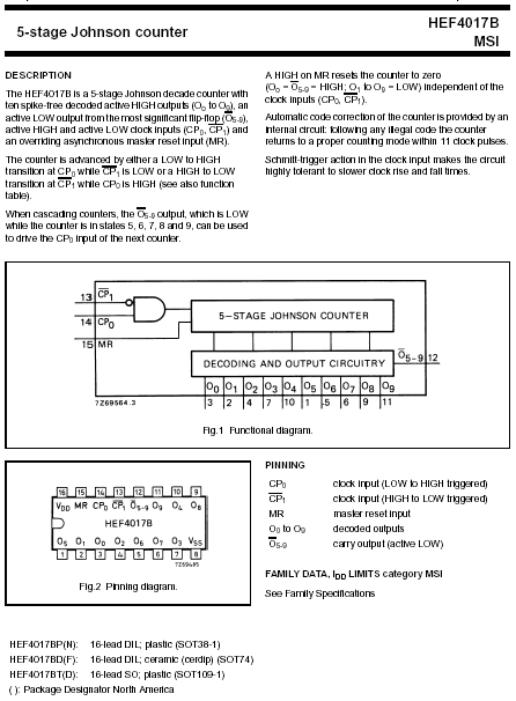

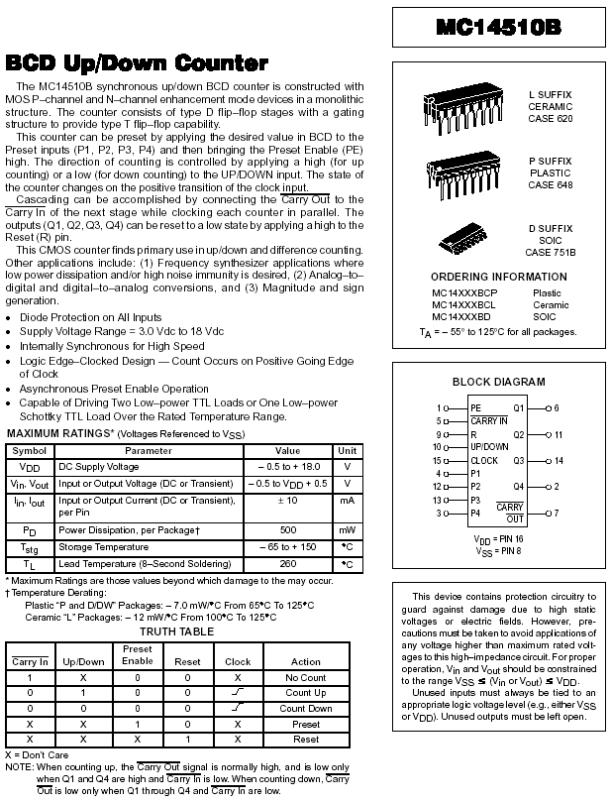

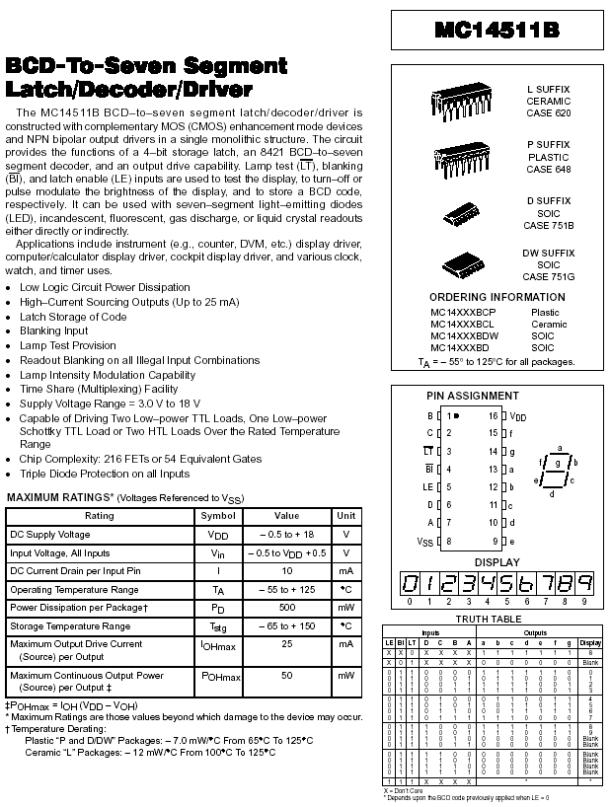

Component Data Sheets

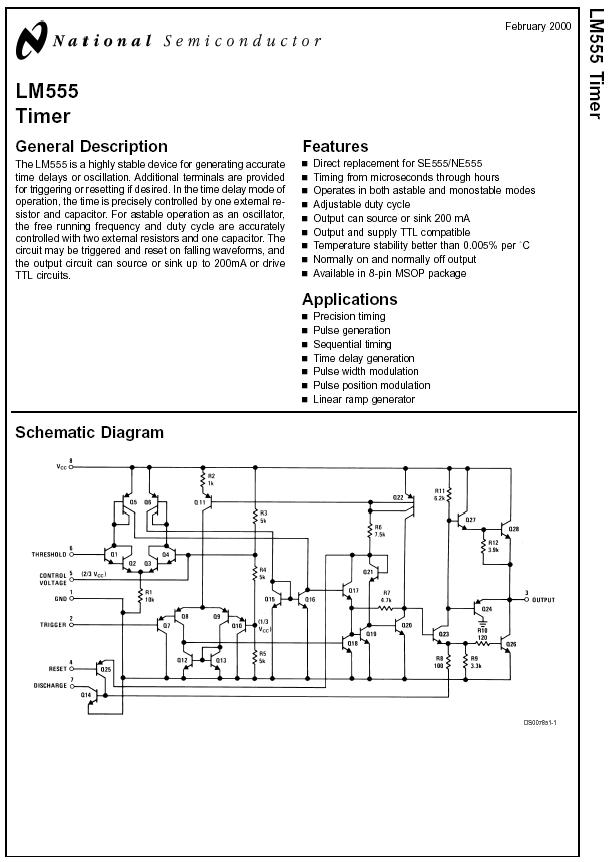

Connection Pin LM555
Connection Pin LM7809
Top
View
Connection Pin 7 Segment Display
COMPONENTS LIST DIGITAL
CLOCK
|
Number |
Notation |
Description |
|
1 |
R1,
R2, R3, R4, R5, R6 |
270k Ohm / 0.25 Watt |
|
2 |
R7,
R8, R9, R10, R11, R12 |
470 Ohm / 0.5 Watt |
|
3 |
R13 |
1M Ohm / 0.25 Watt |
|
4 |
R14,
R15 |
10K Ohm / 0.25 Watt |
|
5 |
D1 |
1N4001 |
|
6 |
IC1,
IC2, IC3, IC4, IC5, IC6 |
CD 4510N |
|
7 |
IC7,
IC8, IC9, IC10, IC11, IC12 |
CD 4511N |
|
8 |
IC
13 |
CD 4081 |
|
9 |
S1,
S2 |
Push On Switch |
|
10 |
LED1,
LED2, LED3, LED4, LED5, LED6 |
Kingbright SC05 |
COMPONENTS LIST POWER
SUPPLY AND 1Hz CLOCK
|
Number |
Notation |
Description |
|
1 |
R1 |
10K Ohm / 0.25 Watt 1% |
|
2 |
R2 |
1K8 Ohm / 0.25 Watt 1% |
|
3 |
R3 |
120 Ohm / 0.25 Watt |
|
4 |
R4 |
470 Ohm / 0.25 Watt |
|
5 |
VR1 |
1K Ohm Multitune |
|
6 |
D1 |
RED LED 5mm |
|
7 |
D2,
D3 |
1N4001 |
|
8 |
IC1 |
LM 555 |
|
9 |
IC2,
IC3, IC4 |
CD 4017 |
|
10 |
IC5,
IC6 |
LM 7809 |
|
11 |
C1 |
100nF Polyester |
|
12 |
C2 |
10nF Ceramic |
|
13 |
C3 |
2200uF / 25V |
|
14 |
C4,
C6, C8 |
100nF |
|
15 |
C5,
C7 |
47uF / 25V |
|
16 |
TR |
Transformer 1A/CT 12V |
|
17 |
TP1,
TP2, TP3, TP4, TP5, TP6 |
PCB PIN 10mm |
COMPONENT LIST MONTAGE
AND BOX
|
Number |
Notation |
Description |
Paces |
|
1 |
Box |
20x20x7.5
cm |
1 |
|
2 |
3mm
Strain king |
15
cm |
1 |
|
3 |
Fizzer |
10
mm |
8 |
|
4 |
Power
Switch |
|
1 |
|
5 |
Fuse
Holder + Fuse 100mA |
Medium |
1 |
|
6 |
AC
Cable |
1.5
m |
1 |
|
7 |
Million
Cable Red |
1m |
1 |
|
8 |
Million
Cable Black |
1m |
1 |
|
9 |
Million
Cable Blue |
1m |
1 |
|
10 |
Rubber
foot |
1cm |
4 |
|
11 |
Nut |
3mm |
6 |
|
12 |
Digital
Clock PCB |
170
x 95 mm |
1 |
|
13 |
Display
PCB |
170
x 45 mm |
1 |
|
14 |
Power
Supply PCB |
120
x 75 mm |
1 |
|
|
PROMOSI
KOMPETENSI SISWA SMK TINGKAT
NASIONAL – XII Th. 2004
KELOMPOK
TEKNOLOGI SEMARANG, 20 – 24 JUNI 2004
|
|
Name
:
Number :

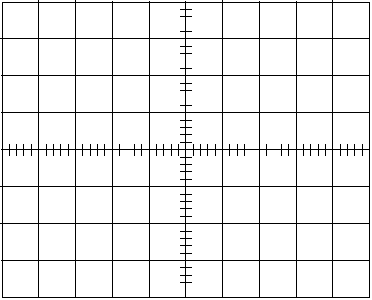

MEASUREMENT
|
Number |
Test
Point |
Result |
|
1 |
TP1 |
.
. . . . . . . . . . .Volt DC |
|
2 |
TP2 |
.
. . . . . . . . . . .Volt DC |
|
3 |
TP3 |
.
. . . . . . . . . . .Volt DC |
|
4 |
TP4 |
Volt/Div =
. . . . . . . . . . . . . . Time/Div = . . . . . .
. . . . . . . . Frequency = . . . . . .
. . . . . . . |
5 |
TP5 |
Volt/Div
= . . . . . . . . . . . . . . Time/Div = . . . . . .
. . . . . . . . Frequency = . . . . . .
. . . . . . . |
|
6 |
TP6 |
Volt/Div
= . . . . . . . . . . . . . . Time/Div = . . . . . .
. . . . . . . . Frequency = . . . . . .
. . . . . . . |
