| ok then, trial fit was successful, but ill admit i made a mistake, hey we all do, just some not as dumb as mine!!, i forgot to allow room for the thickness of the carpeting im using on the outside of the box, i diddnt take any pics of that, coz theres no point, its just a dumb ass move on my part | ||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||

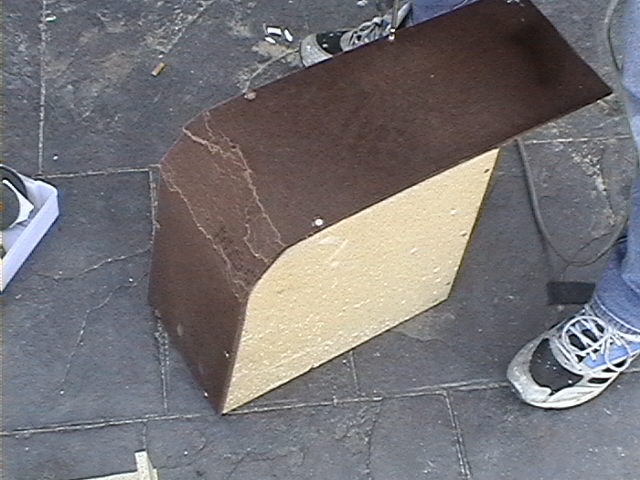

| now, this is box lid ver 1.0 ...or mabey not even that... mabey beta, it is a piece of mdf that resided in the tub for a few days so i could repoduce the curve of the speaker box | ||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||

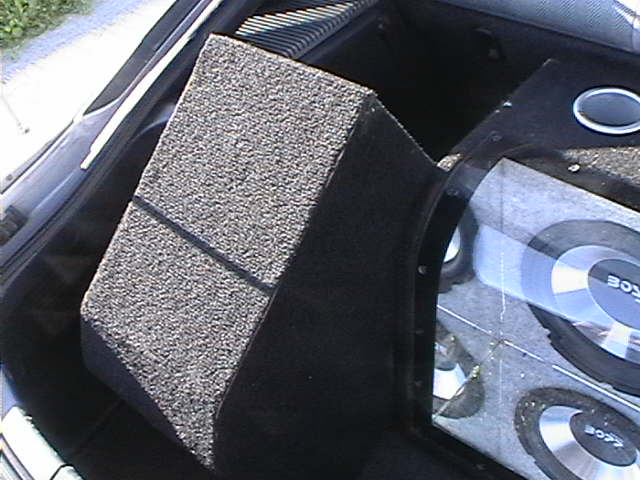

| ok this is where i realised i diddnt ----> allow for the carpet..... sad frustrating day for me, but i got there in the end |
||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||

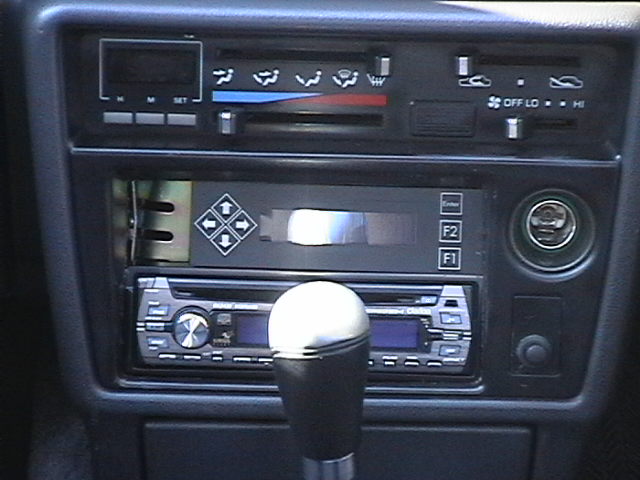

| this is the shiny new Matrix Orbital i purchaced, with 7 key intigraded pad, usb interface, free software including all the winamp interface you need!, and incase your curious, the gold bracket on the side is for a touch screen mount i am working on for a 21cm screen from a truck (i need moe work on the electrics to get 24v from a 12vbattery) but more on that later ant the button undernieth the cigarette lighter socket is of-course the power button for the PC, the inverter is never off, it just goes into standby untill it recieves a current draw or something and it kicks in.... all i know is i dont have to get out of the seat, and thats what matters right?!! | ||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||

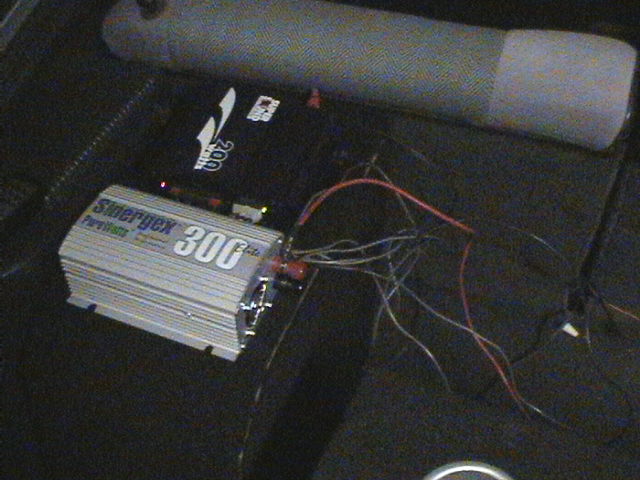

| ghetto wiring i know, but i needed to finnish it up, so i could drive it to keyton and have a LAN with a clan i used to be with | ||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||

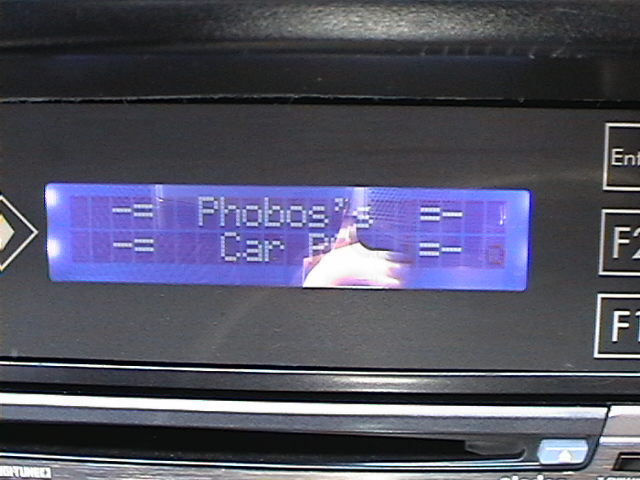

| the LCD, PC and everything wired up, with my logo apon startup | ||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||

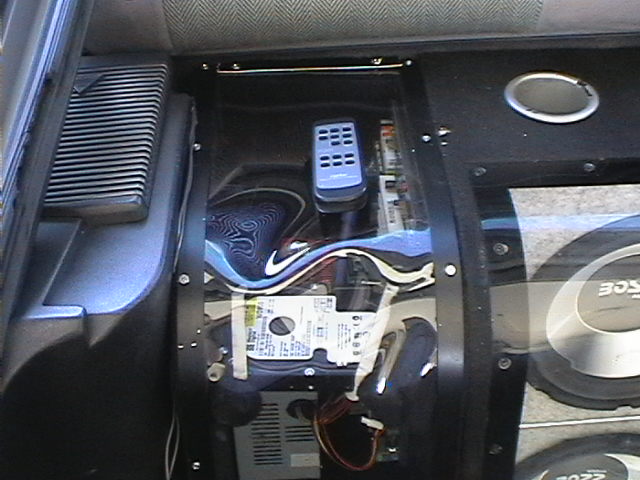

| MK II lid, i found some of that plastic they use on outdoor dining hotels....ahem, lying around and used that instead of the MDF with plans to put blue lights in the case, not a bat turnout if i do say so myself, i was quite happy with it for 6 or so months..... untill a show called "Rides" appeared on discovery channel, damn that infernal cable!! anyway that show inspired my second install... for a couple extra pics continue on, if your on dialup i am soooo sorry for no fore warning |
||||||||||||||||||||||||||||||
