Bicicletta da TRIATHLON |

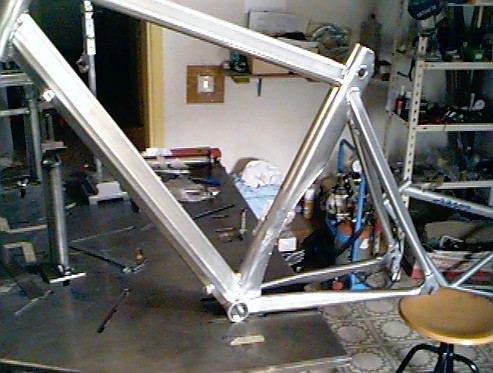

Questo � un telaio in alluminio DEDACCIAI, per la pratica dello sport del Triathlon.Ha il top tube slooping, e possiede il tubo verticale aerodinamico con fresatura per il passaggio dela ruota posteriore. This is an Aluminium Dedacciai frame to get triaithlon race.It has the top tube slooping, and the seat tube it's aerodinamic with of rear wheel |
Nessun tubo di questo telaio � di sezione circolare. Tutti i tubi hanno un profilo ellittico. Anche il tubo sterzo,dell'ultima generazione con movimento integrato,ha una sezione variabile lungo il suo asse long. None tube of this frame it's of circular shape.All tubes have a elliptical profile. Also the head tube,of the new generation with a integrated set cartdridge,has a variable shape along his long.axle. |

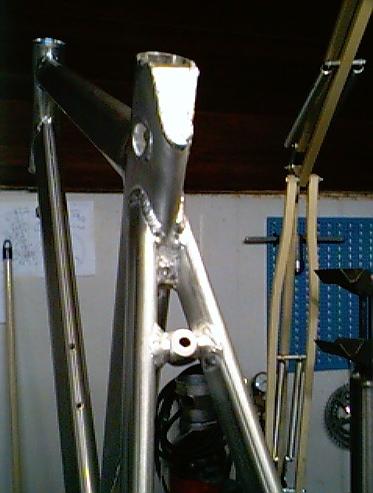

A destra il particolare dell'unione tra il tubo piantone ed i tubi posteriori verticali. Questi hanno una forma aerodinamica schiacciata. E' visibile anche il foro dove si installa il morsetto di serraggio del tubo reggisella. Notevole rigidit� � garantita dai lunghi cordoni di saldatura di questa unione. In the right side,the particular of the joint between the seat tube and the seatstays. They have an aerodinamic squeezed shape. It's visible also the hole where to install the... block .... of ... A lot of rigidity of this union's tube because the presence of long cordon weld |

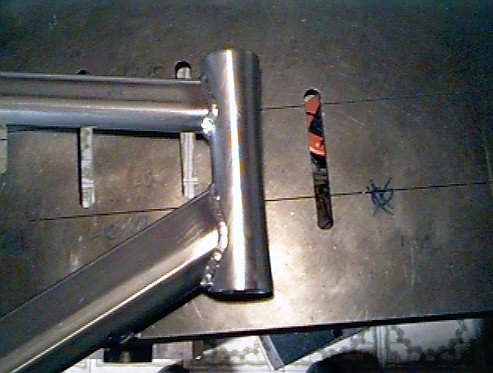

Qui a ato il particolare dell'unione tra i tubi-obliquo,orizzontale e sterzo.Quest'ultimo � del tipo per il movimento integrato,ed il suo diametro � variabile lungo il suo asse longitudinale. Here in the right, the particular of the joint of the top tube,down tube and head tube. This head tube is for integrated set cartdridge, and its diameter is variable along its longitudinal axle. |

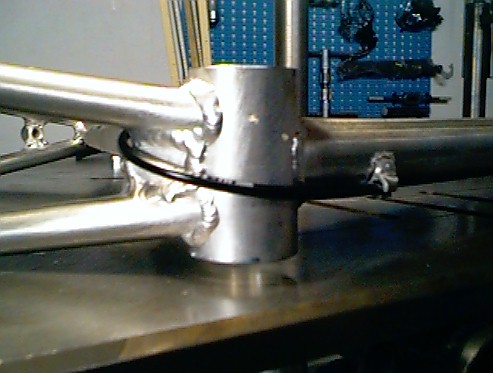

Nelle foto in alto a destra e a sinistra il particolare della scatola del movimento centrale. L'arrivo alla scatola di 4 tubi tutti di profilo ellettico,genera una unione complessa ma efficace dal punto di vista della rigidit�. E' come se la B.B. fosse stata allargata,con un notevole vantaggio sulla resa della potenza della pedalata.Curioso il passaggio del cavo del deragliatore anteriore,di cui si nota la guaina nera.. In the pictures on the top right and top left, the particular of the bottom braket. At this piece arrived four all elliptical tubes that make this union very strong. It's how the B.B. would to be alonged with a great vantage for the power trasmission of the pedals of the wheel. ....... the passage ..............front derailleur of with on can see the black..... |

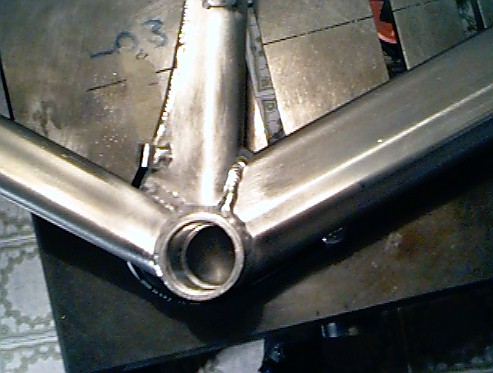

La scatola movimento centrale "allargata" The bottom braket "alonged" |

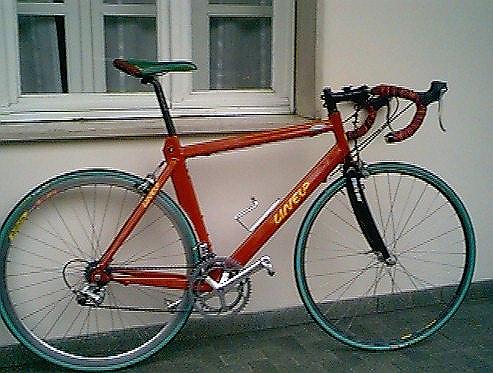

La bici montata The bike assembled |
Verniciatura a polvere,peso telaio:1580gr forcella full carbon 1-1/8",peso:410gr cambio shimano SORA 8V serie sterzo integrata Cane Creek |
