Pierre's Planes: Cabin Profile Stick - CPS


Status: Active

Specifications:
  • Functions: 3-channel - ESC, rudder & elevator
  • Wingspan: 40"
  • Overall Length: "
  • Wing Area: 320 sq.in.
  • Flying Weight: 7 oz
  • Wing Loading: 3 oz per sq.ft.
  • Motor: GWS DX-A
  • Prop: 10 x 4.7 GWS
  • Cells: 7 * 110 NiCd, 9v Rayovac NiMh pack
  • Radio: micro servos, GWS Pico Rx
  • Manufacturer:�Scratch Built

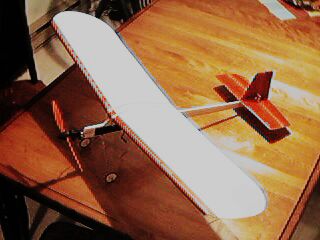

Assembly:

Wing: I re-used the wing from my Super Stick, which is a Jedelsky foamboard wing

Fuse: Foamboard core, with 1/20" balsa sheeting put on with 3M77 glue.

Tail feathers: Grocery store meat trays!

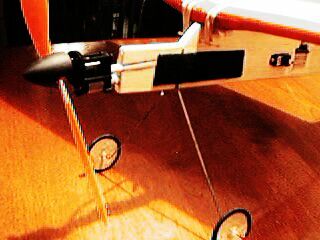

Wheels: VCR rubber rings for tires, on 3/32" balsa rims

Flying:

It's a reasonable slow flyer, which was built specifically for indoor use, but also flies great outdoors with a 7x270 pack.

Update:

It's now converted into a biplane. I raised the top wing support with bamboo skewers, and added a wing mount on the bottom. The extra drag and lift allows it to fly slower, which is fine for indoor use.

Pierre Audette
pfaudet (a) videotron.ca
29/10/2002
