Panzerkampfwagen VI Technical Information

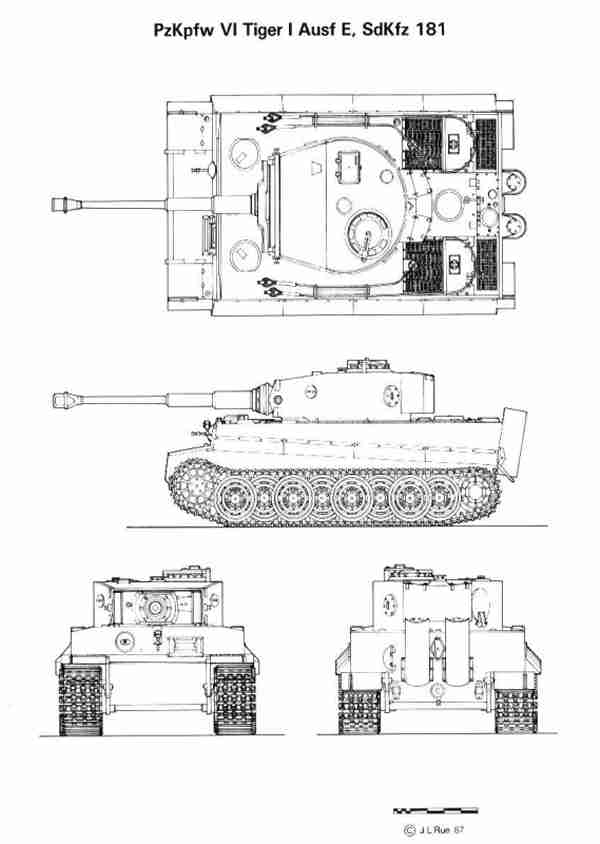

PzKpfw VI Tiger Ausf H/E, SdKfz 181
Principal manufacturer(s): Henschel
Production date(s): 1942-44
Armament: 1 x 88mm KwK 36 L/56; 2 x 7.92mm MG
Crew: 5
Weight in action: 56.9 tons
Overall length: 8.24m
Height: 2.88m
Width: 3.73m
Track width: 52 or 72.5cm (narrow one for rail transport)
Ground clearance: 47cm
Maximum road speed: 38km/h
Range (roads): 90km
Range (cross-country): 60km
Engine type: Ausf H Maybach HL210 P 45 V-12 petrol; Ausf E Maybach HL230 P 45 V-12 petrol
Engine power: Ausf H 650 bhp at 3,000 rpm; Ausf E 700 bhp at 3,000 rpm
Engine capacity: Ausf H 21,353 cc; Ausf E 23,880 cc
Fuel capacity: 534 liters
Armor thickness: turret 82-100mm, Ausf E 82-110mm; hull 63-102mm
