Panzerkampfwagen IV, SdKfz 161

The PzKpfw IV, produced in larger numbers and more versions than any other German tank between 1933-45, was certainly the workhorse of the Panzer Divisions. It was designed by Krupp as the main infantry support/assault tank. However, since it was bigger it could be equipped with more powerful guns and thicker armor. Eventually the PzKpfw IV became, with the Panther, the main battle tank of the German Army.
The PzKpfw IV, like the PzKpfw III, had a five-man crew and was at first intended to equip one out of the four companies in each Panzer battalion, the other three with PzKpfw IIIs. However, wartime losses and attrition quickly decreased the battalions to three companies -- one with PzKpfw IVs and two with PzKpfw IIIs. When the Panther was available the ideal combination became two battalions each of PzKpfw IVs and Vs, each of four companies. This, however, was rarely achieved in reality.
The 35 original PzKpfw IV Ausf As were pre-production vehicles with only mild steel armor. It had eight roadwheels, sprung in pairs, each side, and four return rollers. This system was kept almost throughout the tank's career. The Ausf B had proper welded armor, thicker frontal armor, and a gearbox with six-speed instead of five to improve cross-country performance. Forty-two Ausf Bs were built, and before the invasion of Poland, 134 Ausf Cs, with further detail refinements, were also produced.
Production of the Ausf D/E began in the same month (229 and 223 built respectively). The armor was upgraded, the gun mantlet reshaped, and better vision blocks installed for the driver. The first 462 Ausf Fs had slightly wider tracks to improve the ground pressure and give better power-to-weight ration. All of the production models so far mounted the short 75mm KwK L/24 to support infantry. Then production was postponed for a month so that changes could be made (particularly to the ammunition stowage compartments because of the longer rounds) to accommodate the hard-hitting high-velocity L/43 cannon. The first Ausf Fs with the short gun were renamed Ausf F1, the following 175 with the long gun F2. A single-baffle muzzle brake was installed to the end of the barrel to reduce the recoil forces; or else the breech would fly into the rear of the turret. This improvement was the critical turning point for the PzKpfw IV, which could now engage the T-34 at reasonable ranges. Many earlier models were then retrofitted with the L/43.
A double-baffle muzzle brake was installed on the 3,774 Ausf H and 1,748 Ausf J so that the even more powerful 75mm KwK L/48 could be used. Other changes included thicker armor, the addition of spaced armor skirts (Sch�rzen) to help counter hollow-charge projectiles, and easier production to facilitate manufacture. In the Ausf J power traverse was dispensed with for more room for fuel and ammunition stowage (a bad trade in the eyes of most crewmen), the number of return rollers was decreased from four to three, and the number of pistol ports was reduced. A few Ausf Hs served as command tanks, but unlike the PzKpfw IIIs they kept their full armament.
In spite of its high, boxy appearance with many shot traps, the PzKpfw IV was the only German tank to remain in production throughout the war, a clear testimony to what was definitely a sound design for its time. Its hull and chassis were also used by assault guns and self-propelled artillery pieces. It had a spacious interior and was generally welcomed by its crews because of its reliability, even though its armor and armament were inferior to the Panther and Tiger.

Click on one of the thumbnails below to view the full picture.
	Technical data and/or diagram of Panzerkampfwagen IV.

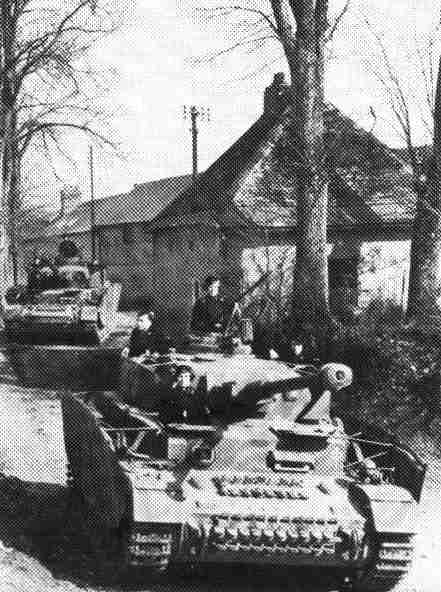

	PzKpfw IVHs of the 2nd Panzer Division in France, 1944, showing the trident device which was an alternative to the more usual inverted "Y."

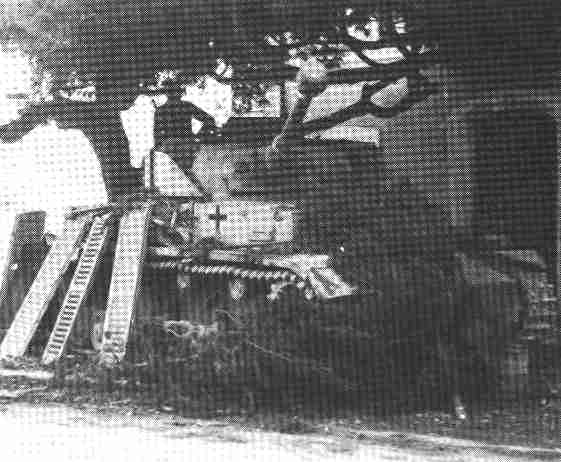

	PzKpfw IVF1s of the Grossdeutschland Division.

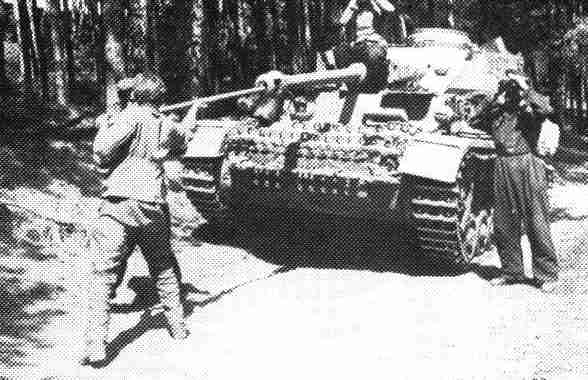

	PzKpfw IVH of the 6th Panzer Division, Russia, summer 1943.

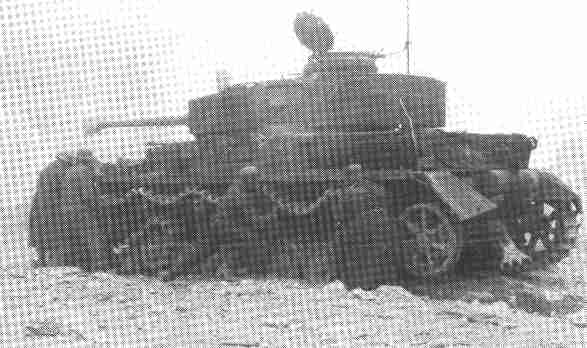

	PzKpfw IVH of the 15th Panzergrenadier Division which has apparently shed its track in the middle of a battle.
	PzKpfw IVG in Tunisia, 1943.

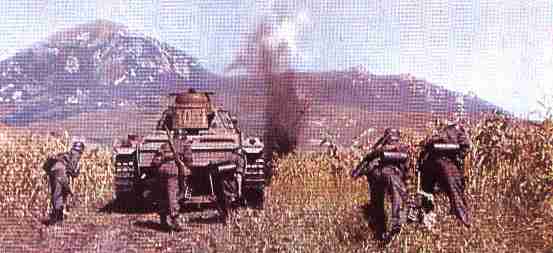

	Panzergrenadiers advance through cornfields in the 1942 German drive to the Caucasus, covered by a PzKpfw IV.

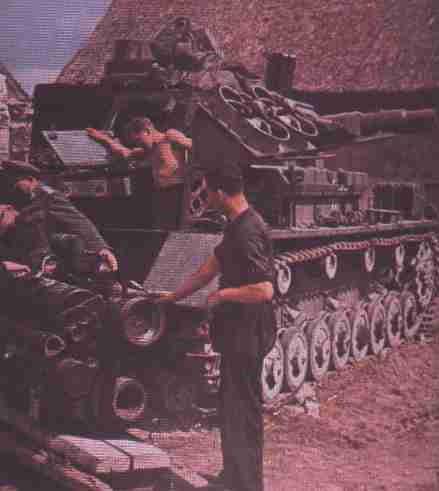

	A PzKpfw IV is serviced in the field in the USSR.
	A PzKpfw IVF2 (left) and PzKpfw IVG in Tunisia.
