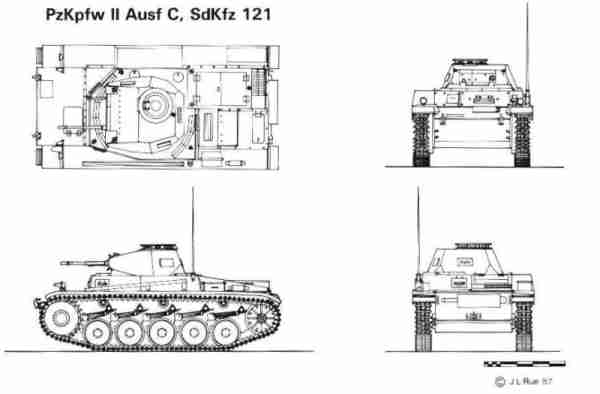

PzKpfw II Ausf A-C, SdKfz 121

Principal manufacturer(s): Henschel, MAN, Famo
Production date(s): 1938-40
Armament: 1 x 20mm KwK 38 L/55, 1 x 7.92mm MG
Crew: 3
Weight in action: 8.9 tons
Overall length: 4.81m
Height: 2.02m
Width: 2.28m
Track width: 30cm
Ground clearance: 34cm
Maximum road speed: 40km/h
Range (roads): 150km
Range (cross-country): 100km
Engine type: Maybach HL62 TRM 6-cylinder petrol
Engine power: 140bhp at 2,600rpm
Engine capacity: 6,191cc
Fuel capacity: 170 liters
Armor thickness: turret 15-30mm, hull 10-30mm

PzKpfw II Ausf D/E, SdKfz 121

Principal manufacturer(s): MAN, Daimler-Benz
Production date(s): 1938-41
Armament: 1 x 20mm KwK 38 L/55, 1 x 7.92mm MG
Crew: 3
Weight in action: 10 tons
Overall length: 4.64m
Height: 2.3m
Width: 2.28m
Track width: 30cm
Ground clearance: 29cm
Maximum road speed: 55km/h
Range (roads): 160km
Range (cross-country): 110km
Engine type: Maybach HL66 P 6-cylinder petrol
Engine power: 180bhp at 3,200rpm
Engine capacity: 6,754cc
Fuel capacity: 200 liters
Armor thickness: turret 15-30mm, hull 10-30mm

PzKpfw II Ausf F, SdKfz 121

Principal manufacturer(s): MAN, Daimler-Benz
Production date(s): 1940-43
Armament: 1 x 20mm KwK 38 L/55, 1 x 7.92mm MG
Crew: 3
Weight in action: 9.5 tons
Overall length: 4.64m
Height: 2.3m
Width: 2.28m
Track width: 30cm
Ground clearance: 29cm
Maximum road speed: 55km/h
Range (roads): 160km
Range (cross-country): 110km
Engine type: Maybach HL66 P 6-cylinder petrol
Engine power: 180bhp at 3,200rpm
Engine capacity: 6,754cc
Fuel capacity: 200 liters
Armor thickness: turret 15-35mm, hull 10-30mm

PzKpfw II Ausf L Luchs (Lynx), SdKfz 123

Principal manufacturer(s): MAN, Henschel
Production date(s): 1941-43
Armament: 1 x 20mm KwK 38 L/55 or 1 x 50mm KwK 39 L/60, 1 x 7.92mm MG
Crew: 4
Weight in action: 11.8 tons
Overall length: 4.63m
Height: 2.21m
Width: 2.48m
Track width: 36cm
Ground clearance: 34cm
Maximum road speed: 60km/h
Range (roads): 190km
Range (cross-country): 130km
Engine type: Maybach HL66 P 6-cylinder petrol
Engine power: 180bhp at 3,200rpm
Engine capacity: 6,754cc
Fuel capacity: 235 liters
Armor thickness: turret 20-30mm, hull 20-30mm
