Panzerkampfwagen 38(t) Technical Information

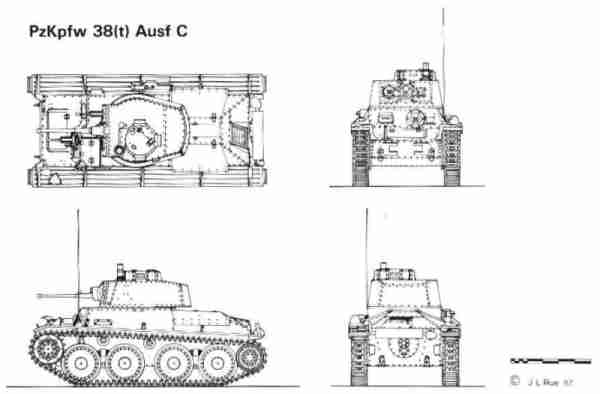

PzKpfw 38(t)
Principal manufacturer(s): Praga
Production date(s): 1938-42
Armament: 1 x 37.2mm KwK(t) L/40 or 1 x 37mm KwK L/45; 2 x 7.92mm MG
Crew: 4
Weight in action: 10.5 tons
Overall length: 4.9m
Height: 2.37m
Width: 2.06m
Track width: 29.3cm
Ground clearance: 40cm
Maximum road speed: 42km/h
Range (roads): 240km
Range (cross-country): 160km
Engine type: Praga EPA 6-cylinder petrol
Engine power: 125 bhp at 2,200 rpm
Engine capacity: 7,754 cc
Fuel capacity: 218 liters
Armor thickness: 17-25mm
Note: No SdKfz number was assigned to the PzKpfw 35(t)
Aufkl�rungspanzer (reconnaissance tank) 38(t), SdKfz 140/1
Principal manufacturer(s): Praga
Production date(s): 1943-44
Armament: 1 x 20mm KwK
Crew: 4
Weight in action: 9.75 tons
Overall length: 4.9m
Height: 2.37m
Width: 2.06m
Track width: 29.3cm
Ground clearance: 40cm
Maximum road speed: 42km/h
Range (roads): 210km
Range (cross-country): 140km
Engine type: Praga AC 6-cylinder petrol
Engine power: 150 bhp at 2,600 rpm
Engine capacity: 7,754 cc
Fuel capacity: 218 liters
Armor thickness: 17.5-25mm
