315 hp crankshaft
293 hp prop
Marine Power Sportpac
Bad News - The strut appears to be cockeyed so a buddy is going to remove it and reposition it correctly. He is a marine professional and has done it before - more on that later.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||

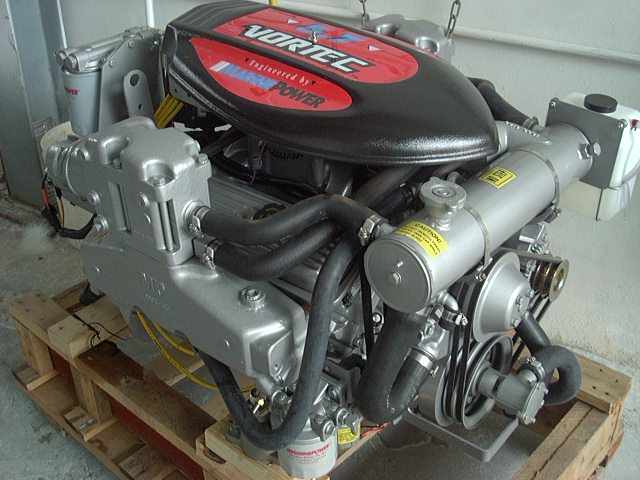

| Here is the complete engine still on the crate! 315 hp crankshaft 293 hp prop |
||||||||||||||||||||||||||||||||
| NEW ENGINE Marine Power Sportpac |
||||||||||||||||||||||||||||||||
| After 10 hours of lifting and lowering the engine, changing - moving - or engineering new brackets, fabricating new engine to stringer mounts, drilling countless holes in steel and stringers, tightening bolts in almost impossible locations, packing the stuffing box, grinding sections of my deck so the new fuel tanks would fit as well as making several trips to the marine shop for hoses, transmission line fittings, clamps, nuts and bolts, and various other things --- I finally got it in!!!!!!! Bad News - The strut appears to be cockeyed so a buddy is going to remove it and reposition it correctly. He is a marine professional and has done it before - more on that later. |
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||

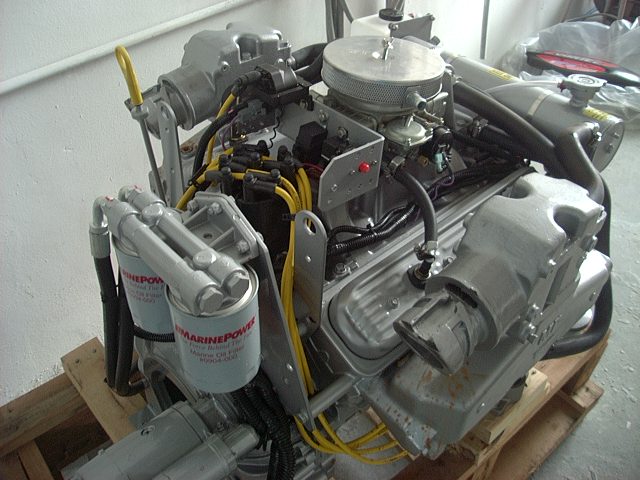

| Rear of the engine with the top cover removed. The dual oil filters are visible along with the exhaust risers and the Holly Carb under the spark arrester. | ||||||||||||||||||||||||||||||||

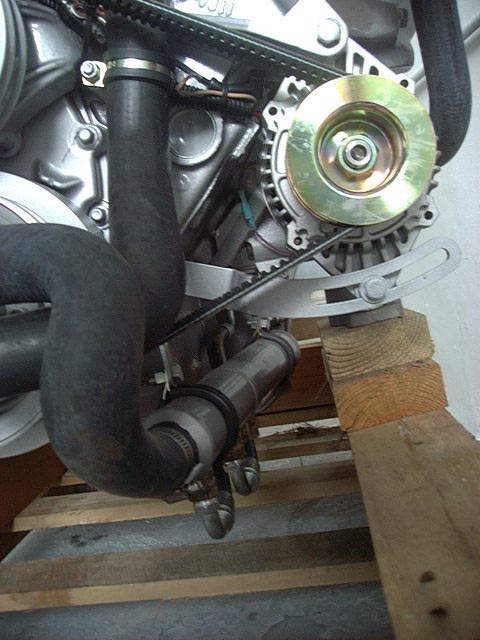

| The bottom of the front. The raw water intake and alternator are visible here. | ||||||||||||||||||||||||||||||||

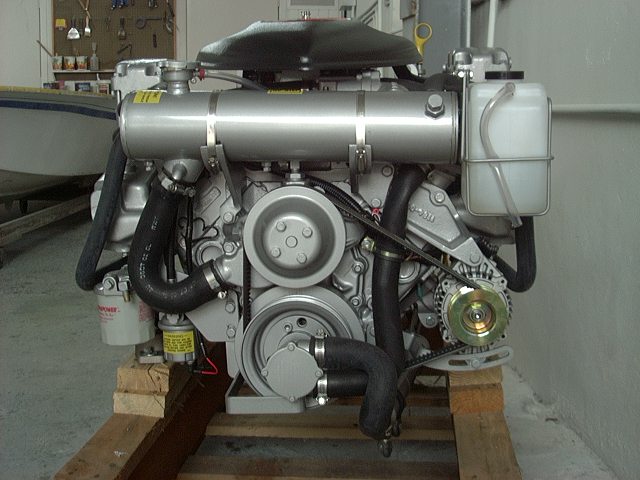

| Front of the engine with the freshwater heat exchanger on top. | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||

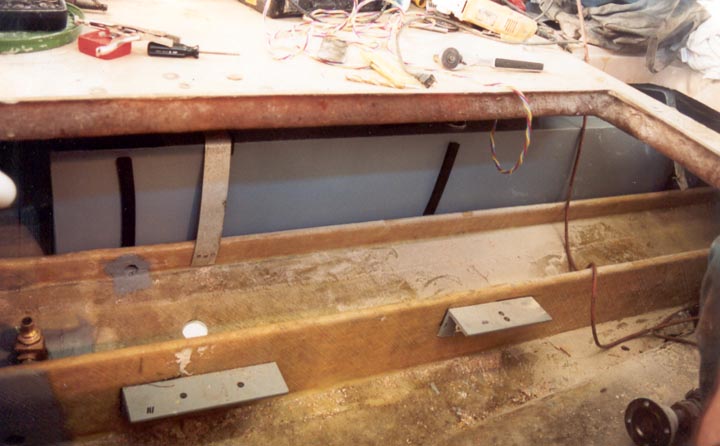

| Here are the new engine mounts. These were the hardest and most critical of the installation procedures. We used 3/8" thick 3" wide angle iron that was thru bolted to the stringers with 1/4" backing plates. The thru bolts were 7/16'" stainless. They were also covered with Interlux 2000 Epoxy These are clean and functional mounts. | ||||||||||||||||||||||||||||||||

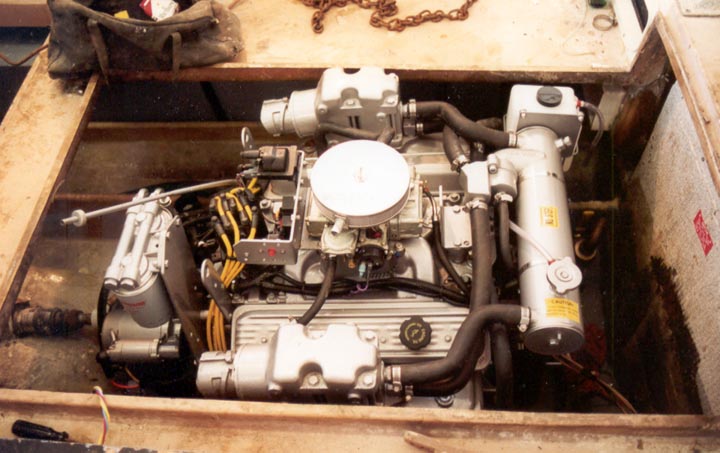

| After MANY problems, the engine was bolted to the mounts. | ||||||||||||||||||||||||||||||||

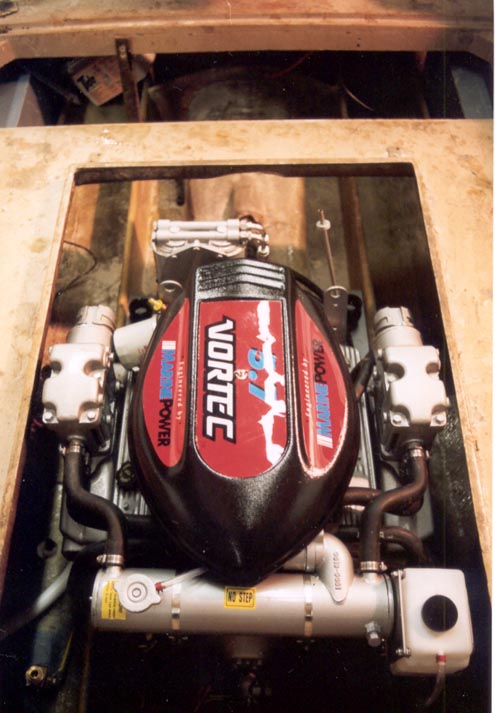

| Engine in with the carb cover in place. | ||||||||||||||||||||||||||||||||
| Website with engine features: www.marinepowerusa.com | ||||||||||||||||||||||||||||||||
