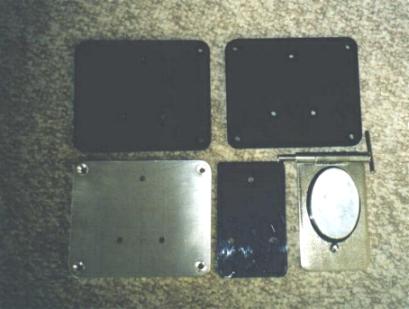

Top to bottom, L-R:   Two 3/8" sections of Delrin to make up for what I cut off the mast;  One 1/2" section of 6061-T6 aluminum plate;  One section Delren to separate the SS plate from aluminum.

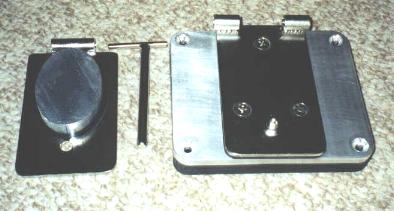

L-R:   Mast Plate section; hinge ping;  Deck plate

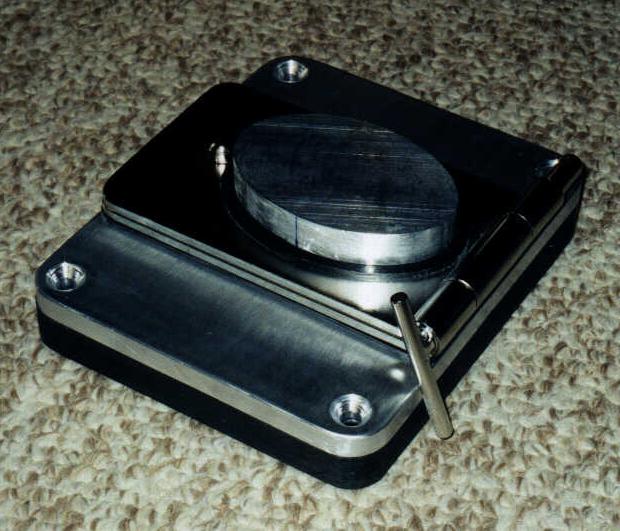

New Step Assembled

     To prevent the aluminum and SS from coming in contact with the insert or the mast and causing a corrosive condition, I placed a section of 1/8" thick Delrin between the insert and mast plate.

     Both the mast plate and the deck plate of the new step are now ready to install.
