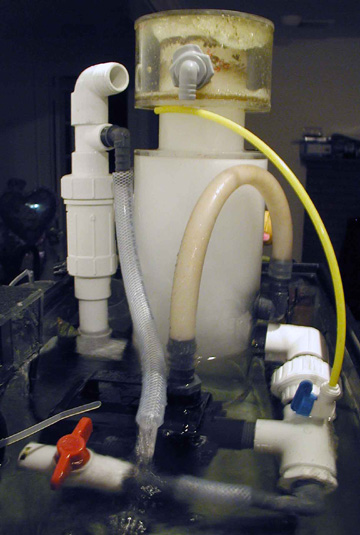

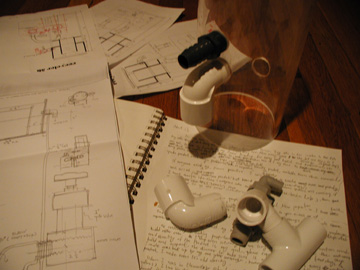

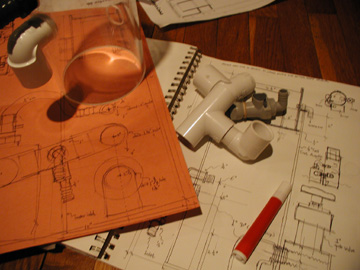

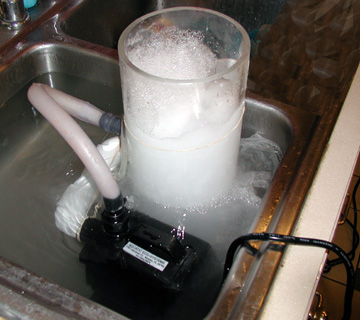

Something about myself: Hi, my name is Chen. The designer who have very low budget (I am not like those rich people) and I have so limited salary to support my dream skimmer; however, I have desire to using every my source to achieve this goal. The Patent process is tedious and expensive. After 2 years development on paper finally have two prototypes build and test. The first prototype ABM113 is not working as I expect, so I do a lot experiment on ABM113 trying to find out the solution to improve those problems. The result new prototype named- TSUNAMI ABM520 build and test. The new TSUNAMI ABM520 is greatly improving their performance and simplifies a lot. Now the 3 generation ABM Protein Skimmer is under development...

Benefit from my ABM series Protein Skimmer:

1. Easy to access the reaction chamber
2. Very high efficiency (Great foaming action)
3. Low maintaince
4. Capable to achieve 2-minute air/bubble contact time
(expert say the protein requires probably 2 minutes to extract from skimming action.)
6. Maximum Air bubble volume in Reaction Chamber
7. Stable water leveling and will not require a lot adjustment daily.

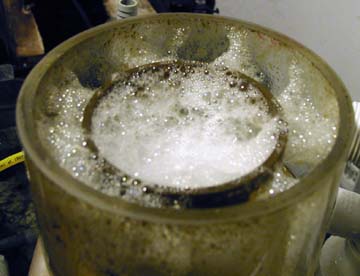

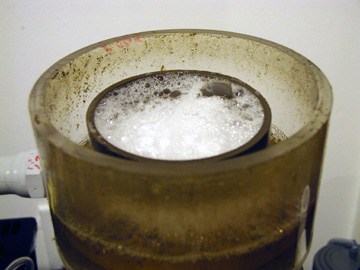

8. Big open (3.5") from reaction tube which produce more stable DRY foam.

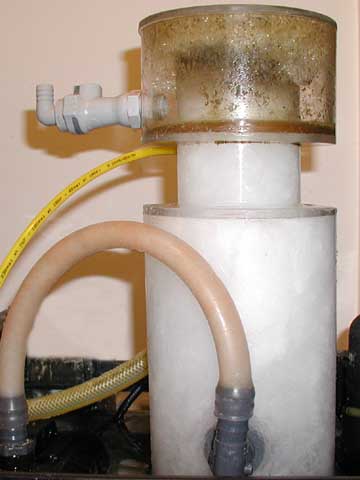

9. Ultra-compact design only 18 inch tall
10. All tubing is constructing by heavy duty Cell-Cast Acrylic.
11. Exclusive Dynamic Dual water outlet & simple horizontal bar design (only need one water pump)

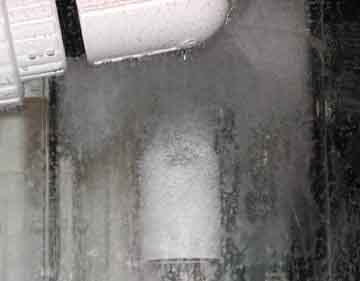

primary water outlet at horizontal bar
This primary water outlet increase air bubble quantity inside the reaction chamber and decrease air bubble & water flow at bubble reduce zone because inside the reaction chamber water flow have to pass though the horizontal bar toward the

not a lot of air bubbles in bubble reducing zone

water outlet. Therefore, the air bubble greatly reduced in bubble reducing zone: while, air bubble greatly increased in bubble multiply zone

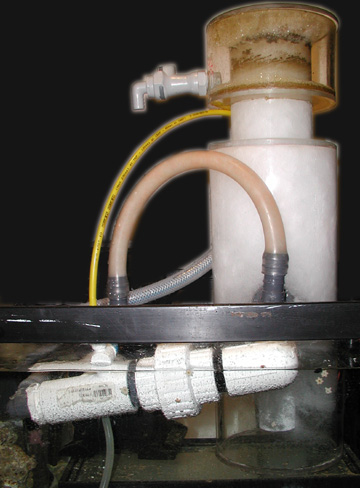

Horizontal bar
1. Horizontal bar can hold variety type of water pumps steadily
2. Come with maximum air input turbo control valve (1/4" tube)
3. Exclusive dynamic water output
4. Horizontal bar makes this skimmer possible to using only one regular water pump

If you have any question please E-mail me at [email protected]

TSUNAMI AQUATIC L.L.C. proud to present our invention Advanced Bubble Multiply technology. This technology now US patent pending. All right reserved. The ABM technology will greatly improves the Protein Skimmer's performance as those pictures showing. Even better, ABM Protein Skimmer utilize only the regular water pump without modification. My goal is to produce professional-grade Protein Skimmer. During my initial developing phrase, I welling to hear people's opinion about anything from design suggestion to your support ...No matter is Good things or Bad things... or if someone know a better machine shop please feel free to give me a call or e-mail me to [email protected]. Thank you for supporting me to developing our future dream Protein skimmer.

How does the ABM technology work?

Advanced Bubble Multiply Technology using regular water pump to recycle and multiple the air bubbles that already inside the reaction chamber. How to do that? ABM skimmer using regular water pump with turbo venturi to generate initial air bubble. The water pump's impellers blade consistently chopping the air bubbles from reaction chamber and venturi to produce maximum amount of fine bubbles in reaction chamber. The result large amounts of fine bubbles stay in reaction chamber longer. The other benefit from ABM technology is reduce the water flow while generate great amount of bubbles inside the reaction chamber. Why ABM technology reduce the water flow? Because the water pump utilize most of the energy to maximize the air bubbles not water flow, so water flow is reduced. This make ABM protein skimmer so efficient. (The ABM technology method improves the air bubbles suspension time, minimum the water flow, maximum the air bubbles).
