AM CQUAM TRANSMITTER
ASM - 400 C-QUAM AM STEREO SYNTHESIZER |
AM STEREO Transmitter 8 - 400W PEP max RF Out (2 - 100W Carrier) 50 Ohm RF output 1KHz Step - DDS Frequency synthesizer stability 0.5Hz L & R inputs at 0dbU for +125% / -99% modulation CQUAM stereo system 4X20 LCD Backlited Blue Screen RF FWD & REFL Power metering VSWR Protection Transmitter Timer ON/OFF thru menu Stereo/Mono menu selection 230 or 115 VAC operation AM Stereo Separation >35db 2U 19" Rack mount unit |

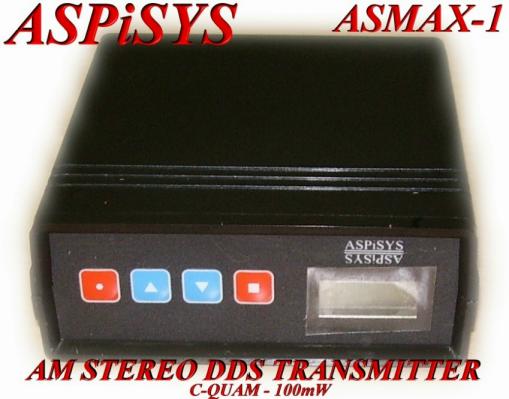

More info for the above AM CQUAM stereo transmitter can be found at asmax-1 |
Get back ? |

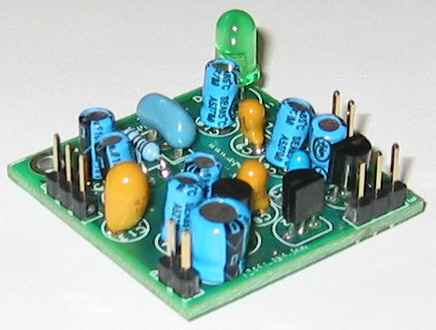

And if you want to convert a monophonic AM radio to a STEREO AM receiver for CQUAM system, here we have a C-QUAM DECODER ADD-ON BOARD that takes the IF 450KHz or 455KHz signal and DECODES AM STEREO BROADCASTS! For more info take a look at the link: D-QUAM |

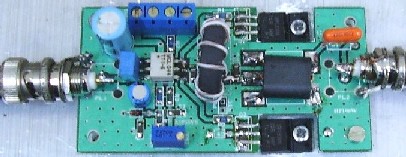

And some LINEAR AM AMPLIFIERS one with an output of >60W PEP @ 28VDC and another with >40W PEP and a 600W complete AM CQUAM Transmitter! |
