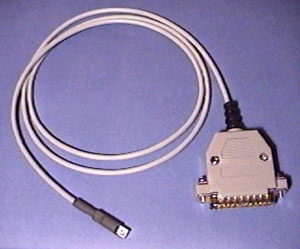

ZQ-Link data communication cable
to old SHARP® manager calculators
The Main Cable Features:
Connectible to PC LPT port (paralel "printer" port) of 25 pins DSUB connector:
- This connector include the electronicss. This electronic circuit convert the signal from
one unit to another.
- Get the power-supply voltage from PC, battery not necessary, and spare the SHARP® battery.
- This connector include the Hardkey forr the software copy protection.
The cable connect to old SHARP® calculators with special flat plug:
- The plug own development and custom-buuilt, because the SHARP® not manufacture
cable for the old unit already. Necessarily, if me get at the original Sharp® "unit to unit"
cable (CE300L), make the ZQ-Link cable from that.
- This custom-built plug totally shieldeed against the external action.
- The connector part be made from 0,8 mmm diameter silver pins, which good electrically conductive,
and establish stable contact between PC and Unit. This pins not fragile and wear-resisting.
- The top side of the plug is marked by "TOP" label towards prevention of inverse connecting.
SHARP® unit
can be connected with cable:
ZQ-2000, ZQ-2200, ZQ-2250, ZQ-2400, ZQ-2450, ZQ-2650, ZQ-2750M, ZQ-2850, ZQ-3050,
ZQ-3250, ZQ-4350, ZQ-4450, ZQ-5450, ZQ-5650, ZQ-M203T, ZQ-M403T, ZQ-M155T, ZQ-M475T,
EL-6660A, EL_6690A
Not this cable suitable for the following
SHARP® unit,
but the EL-Link cable suitable:
EL-6750, EL-6790, EL-6850, EL-6890, ZQ-190, ZQ-195, ZQ-520, ZQ-540
Warning! The ZQ-Link cable not work with the other software only the ZQ-Link software,
and the ZQ-Link software not work with the other cable!
