- How to Mod. MSI K7T to Set Vio More Than 3.45 (3.49)
- Theory
- K7T pro use SEMTECH SC1101 Voltage Regulator for Vio that have FB pin (Feedback control
pin)Same as Vsense in SC1155
- If we reduce Voltage at FB
pin it will made Vio go higher.
(You know BILL ! it's EASY) : )
- How

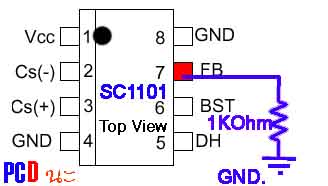

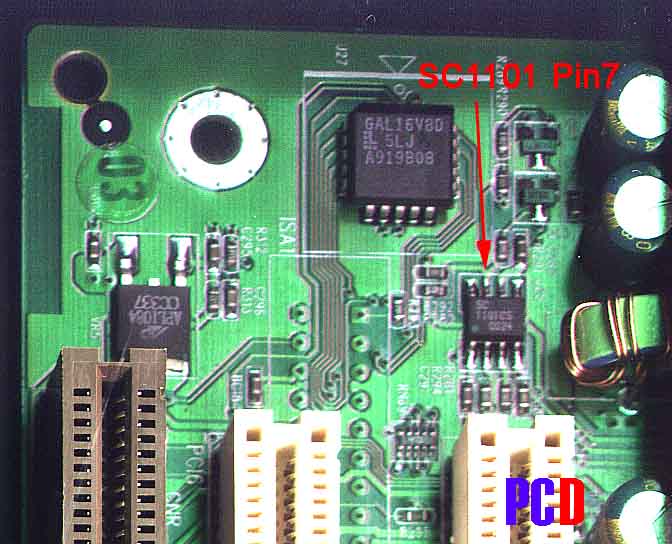

- 1. Connect Resistor 1KOhm to pin 7 of SC1101 and another side to GND.
( somewhere like PS/2 port shield)

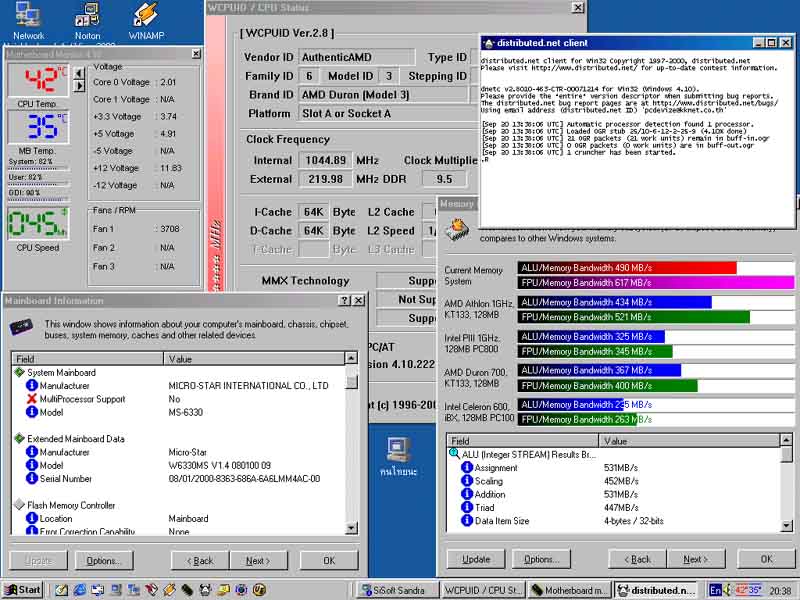

- It will make Vio goto ~ 3.60V When you set to 3.30V in BIOS.( And 3.73 V When set to 3.45V)
- If you need go higher Set in BIOS First .... If not Enough Reduce
Resistor value. ( Like 800 Ohm or
900Ohm)
- 2. Relax with 1 cans of sub
Zero cool Bier. : )~
- Remark : I Don't know it
useful or not, But Who care. : )
- Information Resource
- http://www.semtech.com/pdf/ic/sc1101.pdf
