How to Make ABIT BP6 to work with CopperMine & Celeron II

    1. Remove PIN AM2 , AB36  of Coppermine or Celeron II

    2. Connect AH4 -> X4

    3. Connect AB36 -> Z36

    4. Connect E27 -> R 110 Ohm -> GND.

    5. Connect S35 -> R 110 Ohm -> GND.

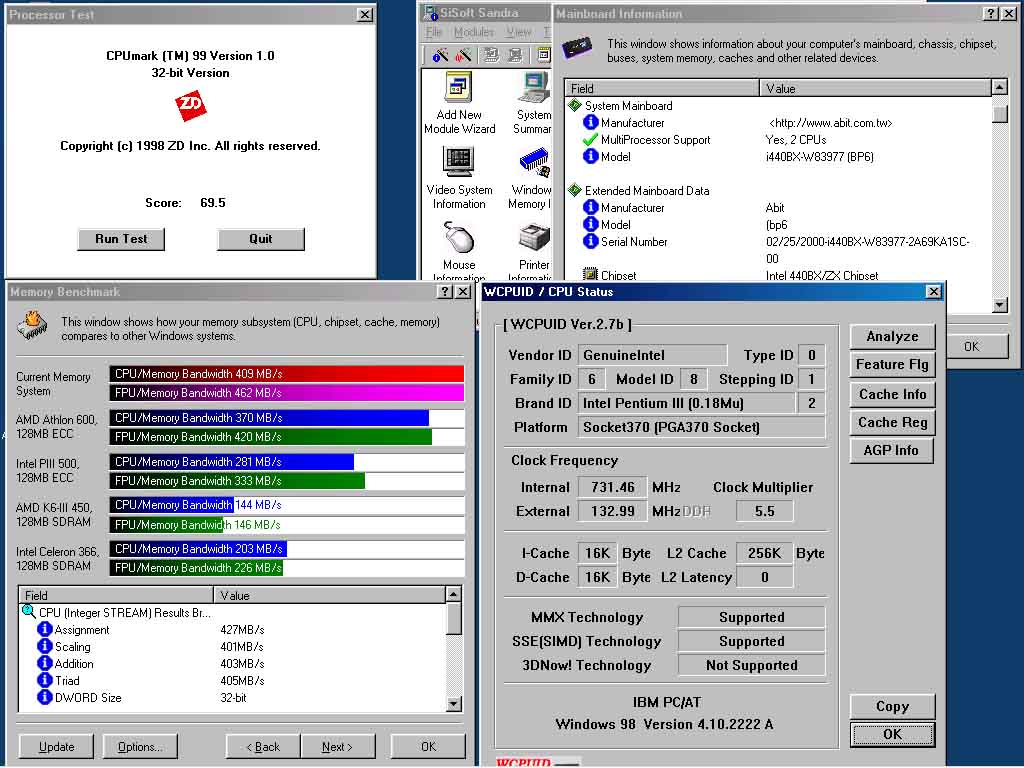

   Screen Shot

    For Dual CopperMine

    6. Remove PIN AN15 of Coppermine

    7. Connect AN15 -> N33

    8. Connect G35 -> G37

The waiting ss END I got another Coppermine 550E cA0 FPGA for Testing.

Yes , I already try it.

It stable only 100 MHz FSB (P!!!550 x 2)

More than 100 It randomly post Dual and Single and No post. : (

So I decide to turn back to my Dual Celeron 400@600 MHz Instead

This Information I TAKE from Genius BBA. !
