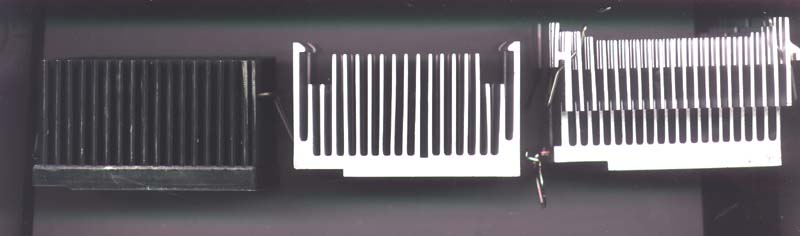

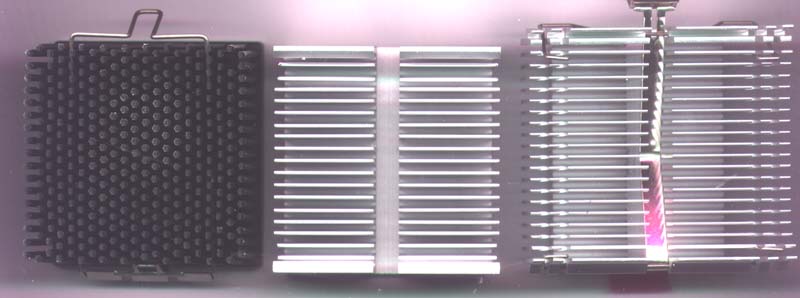

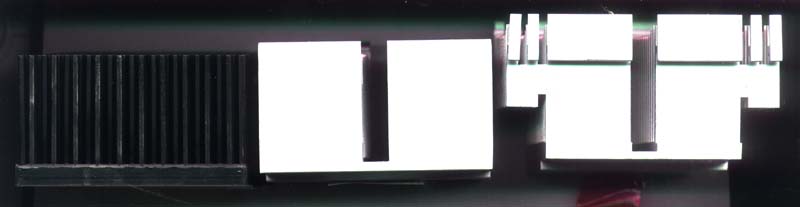

Alpha FC-PAL 35             Cooler Master DP5-6H51                GlobalWin   FOP 32-1




Which is The BEST ? (For My Duron)

ผลการทดสอบ HeatSink

ใช้ Duron 600 Vcore 2.02 วิ่งที่ 1070 บน Win2K

Heatsink  :  Fan Temp.@BIOS V2.02 ,@1110 Win2K Idel Temp. @1070 Win2K RC5 Temp. @1070 After RC5   60 sec. Idle Temp.
FOP32-1 : MNB B60  25cfm 59 C 57 C 66 C 60 C
DP5-6H51 : MNB B60 60 C 57 C 67 C 59 C
FC-PAL35 : MNB B60 Blow 56 C 55 C 62 C 56 C
FC-PAL35 : MNB B60 Suck 53 C 53 C 60 C 55 C
FOP32-1 : Delta 812VH 42cfm 57 C 56 C 65 C 58 C
DP5-6H51 : Delta 812VH 59 C 57 C 65 C 59 C
