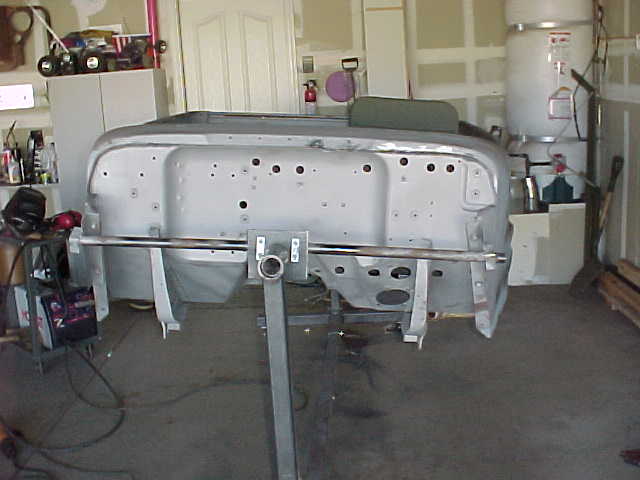

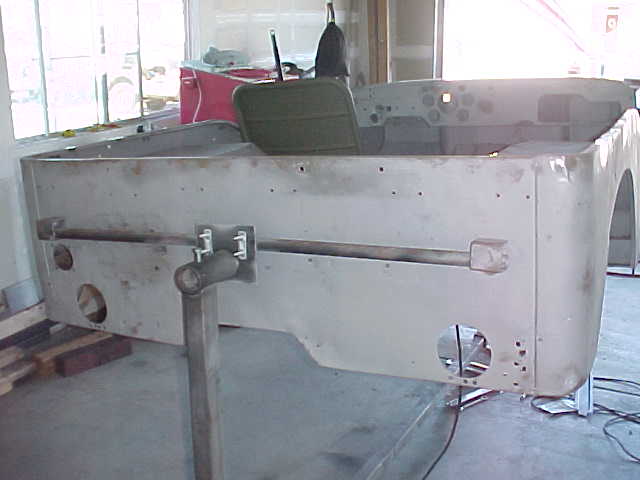

| Rear of GPW on Rotissarie. it was made ot bolt to existing handle holes in the jeep |
| the front attaches to the 2 top fender holes. I can rotate it 90 degrees. alnd lock in place with a bolt used as a pin. it is great for storage as well. I can push the body up against the wall and still pull another car in the bay |
 |
 |
 |
 |
 |
 |
 |

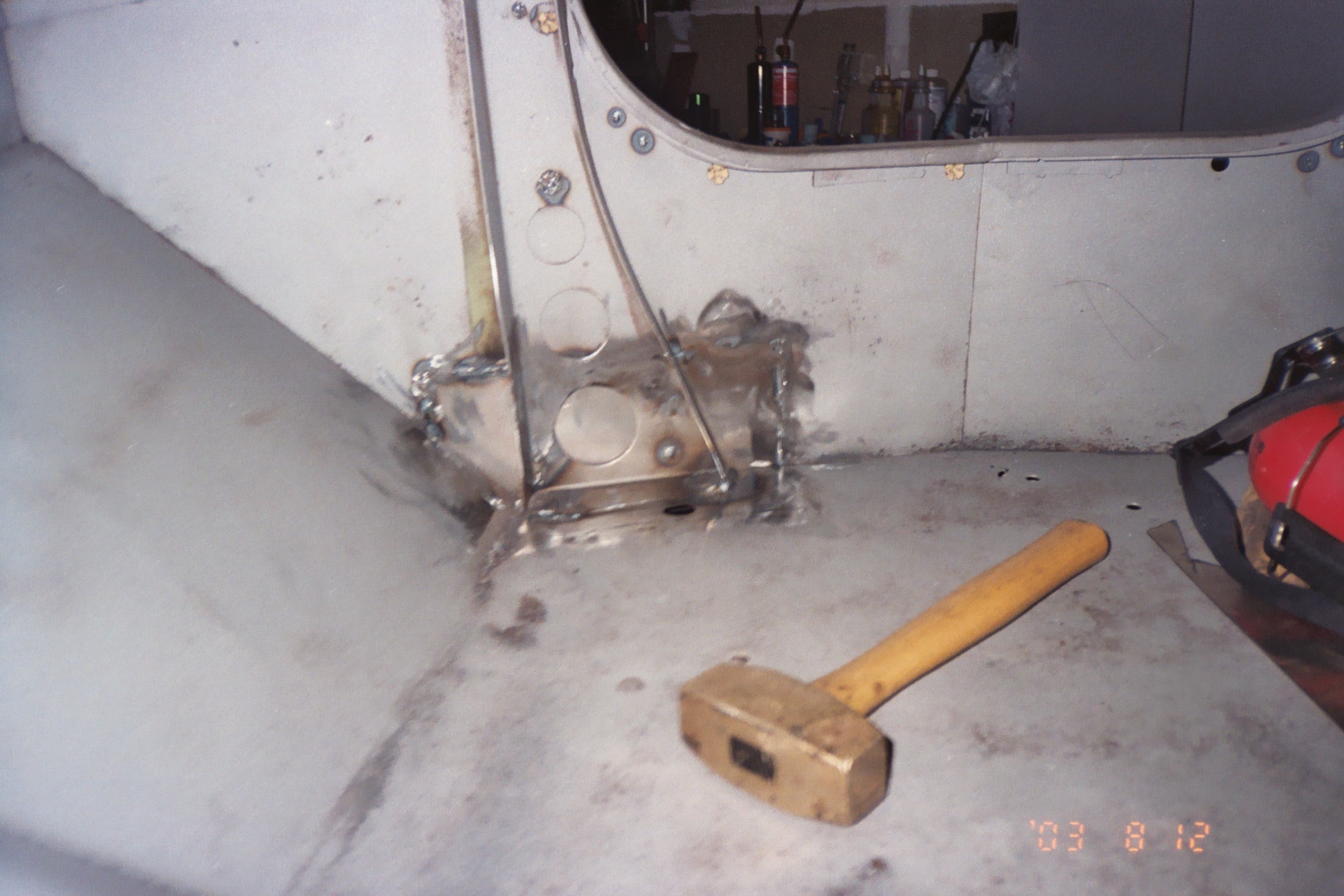

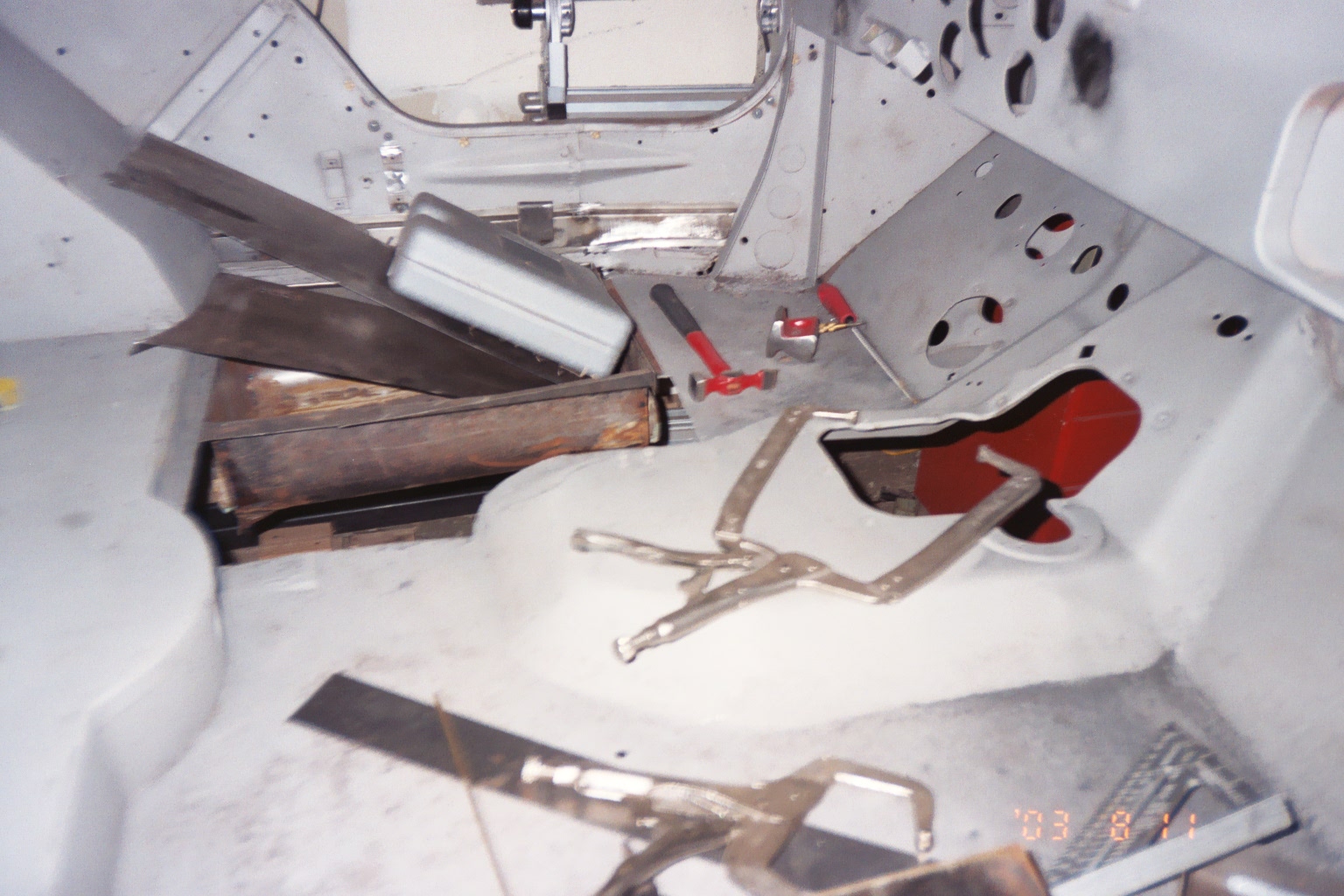

| patch for pass front corner tacked in place. along with small front floor piece. larger floor piece can be seen. All patch pannels were fabricated by making paper template first then cutting metal to match paper and then trimming to fit. |

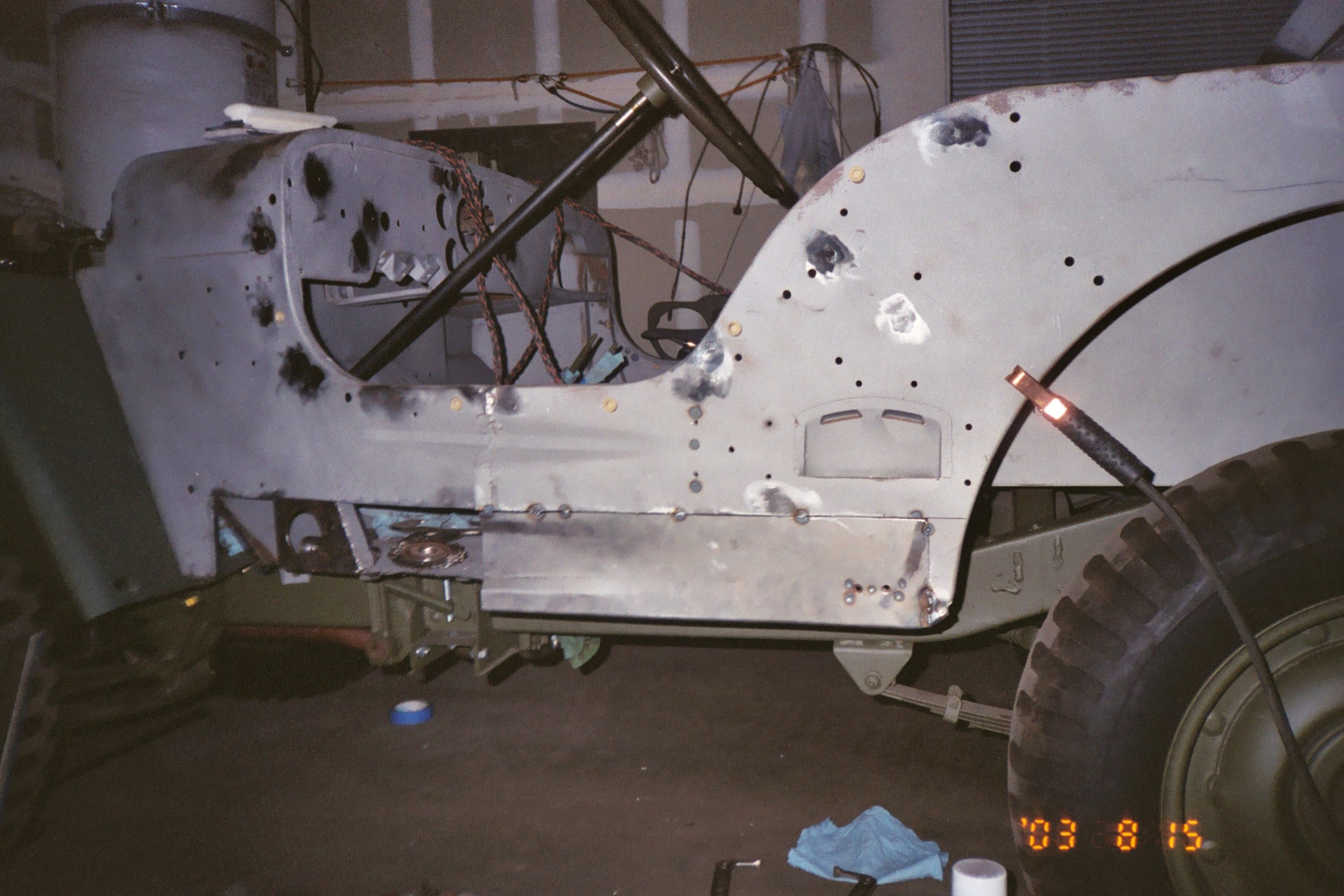

| Finished repairs.still need to be ground |

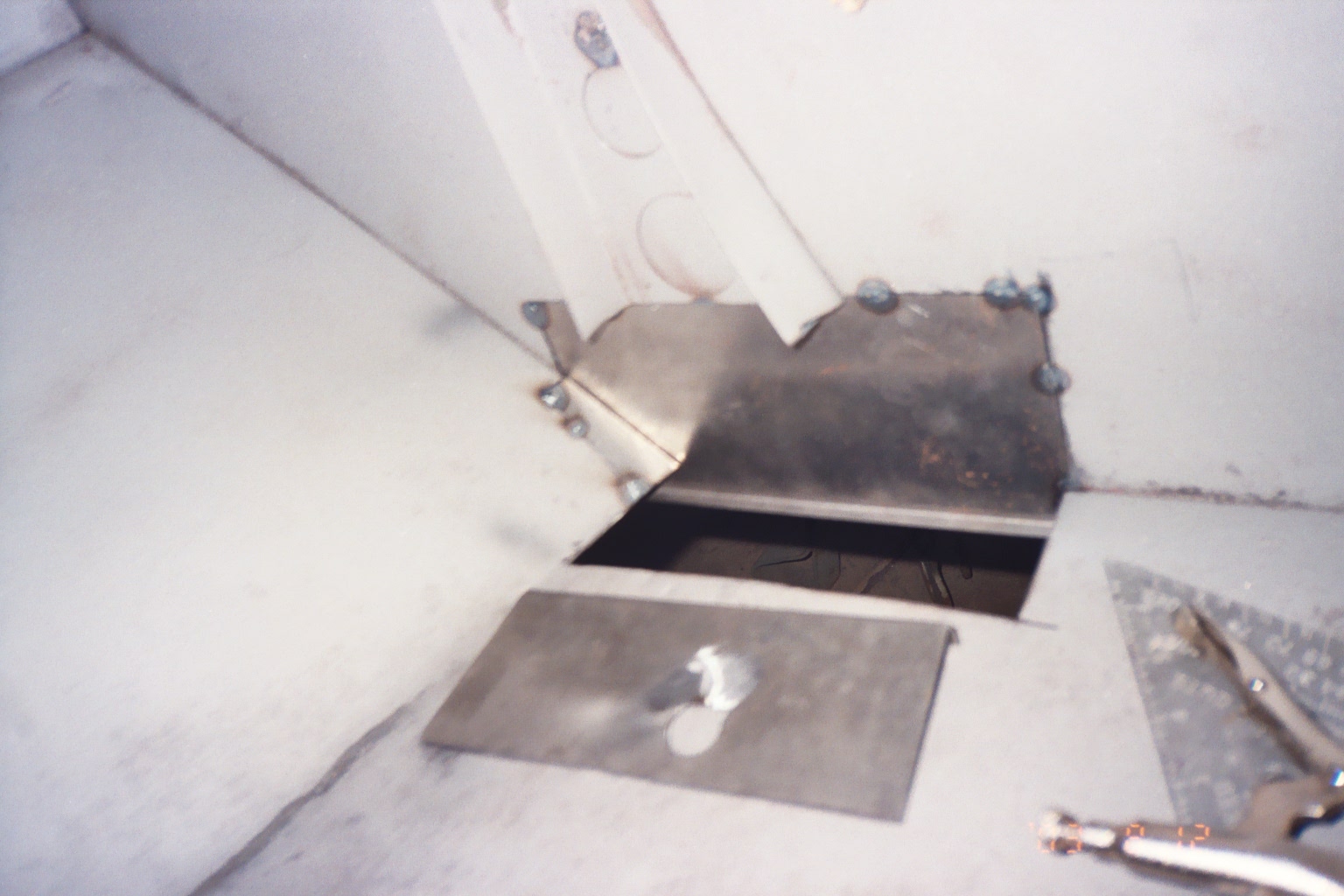

| Test fitting of new fuel tank sump in Orig floor opening for fit. it fit fine spot on. |

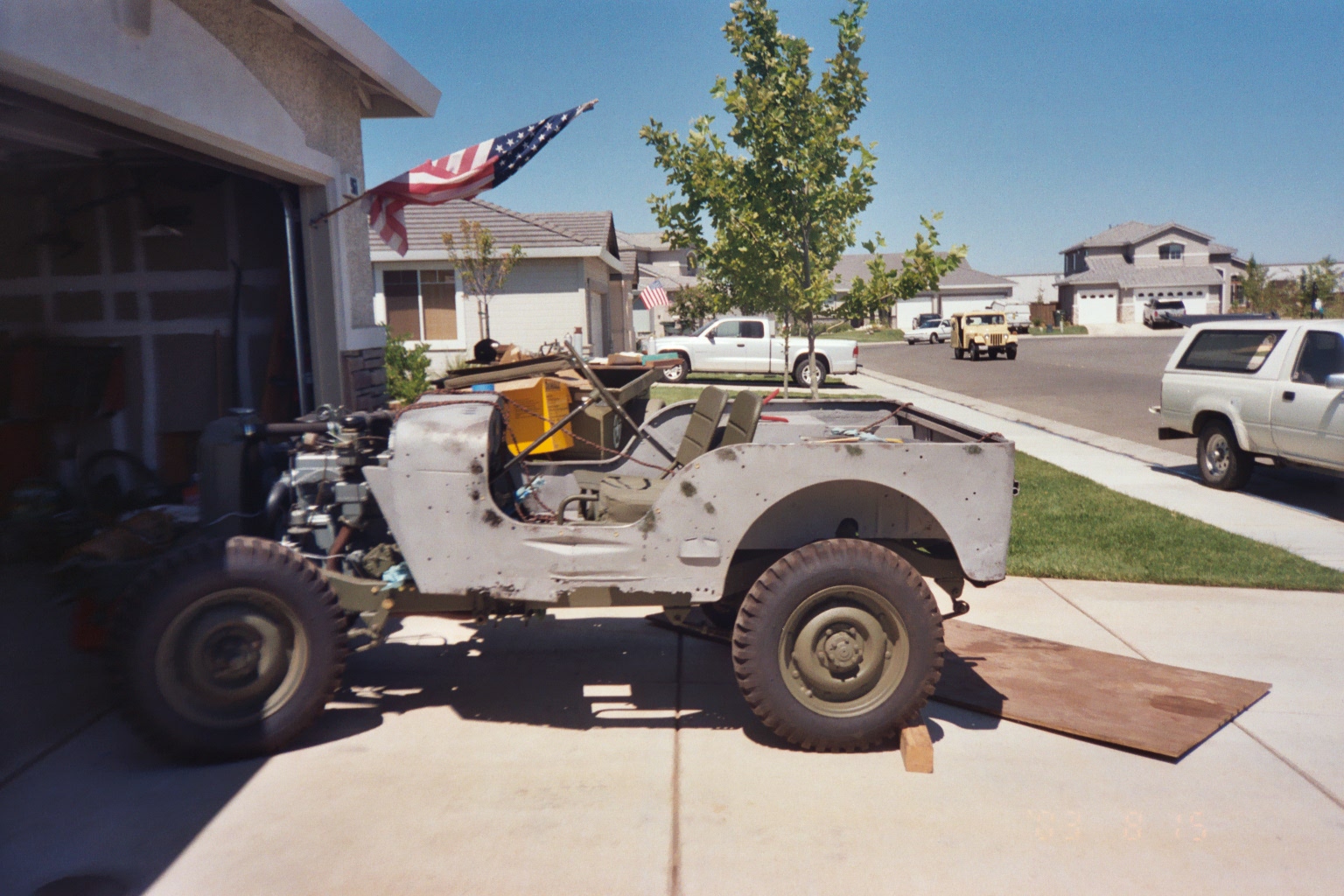

| body fited to frame for this repair so it wouldn't get out of alignment. |

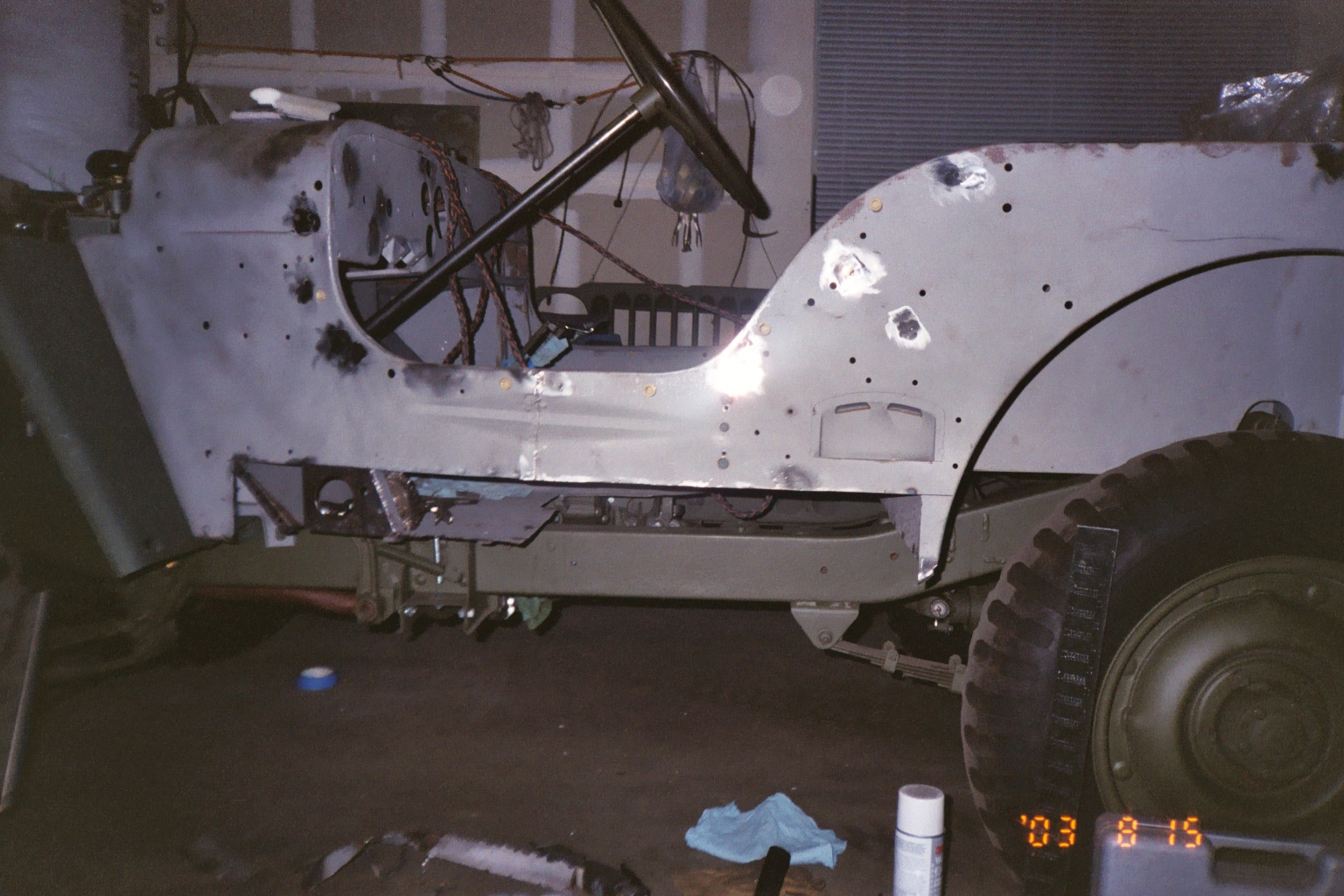

| cancer cut out. repair pannels were made by jeep pannels plus. they fit fine. Notice I left the round rear corner. as this area was fine and it did have a factory blemish in it where the spot welder pinched in the wrong spot. I decided to leave these imperfections as to not Over restore the jeep. |

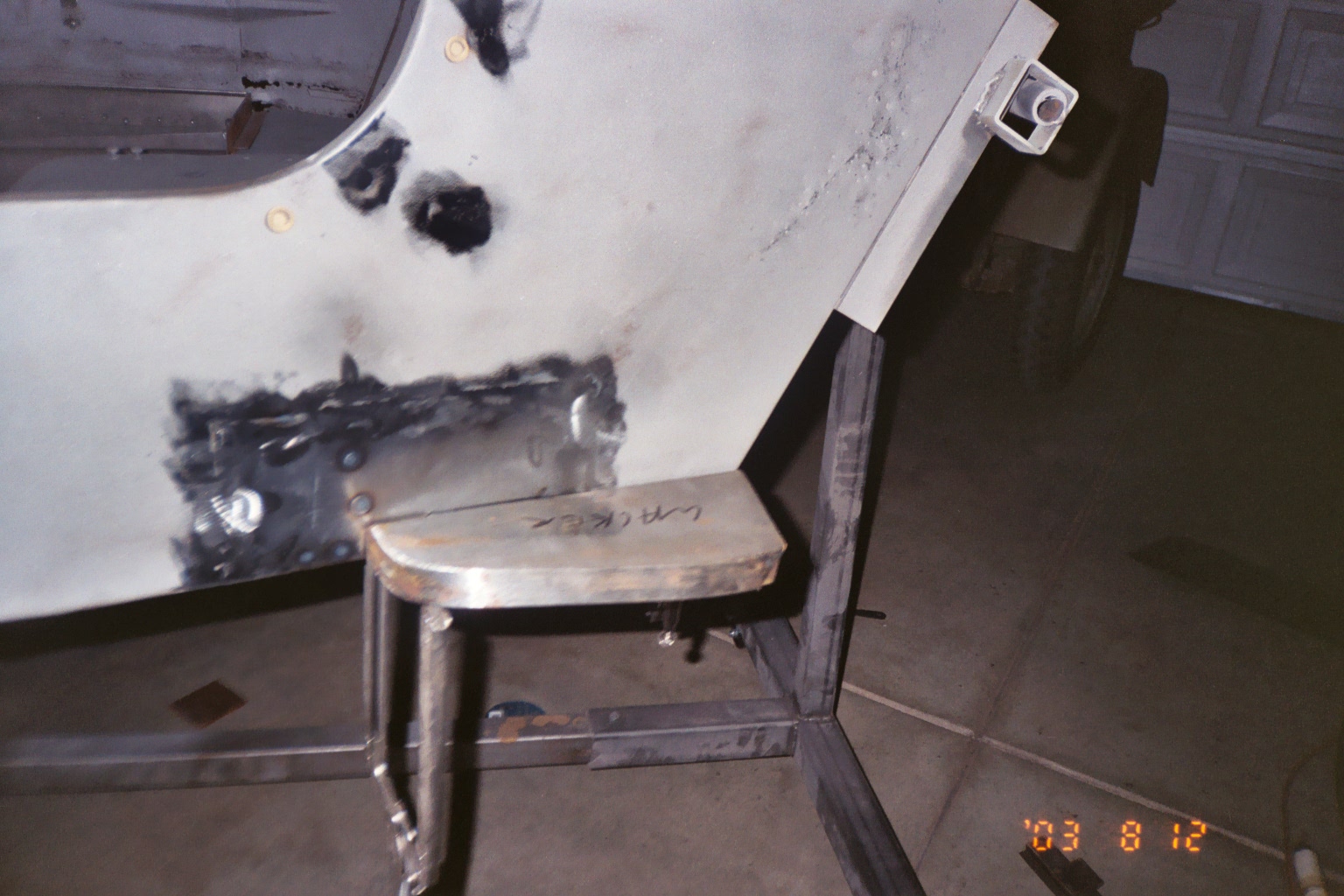

| a close up of first patch pannel tacked in place |
