PEPE'S, XE2MX, ANTENNA FARM IN ENSENADA, B.C., MEXICO

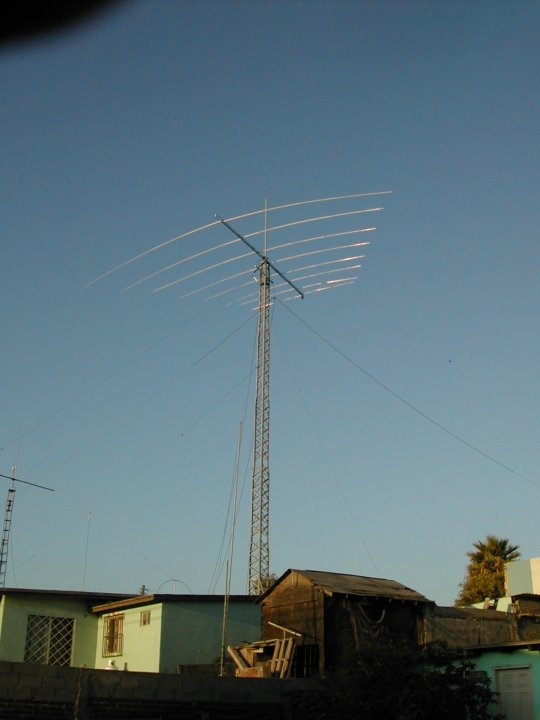

Pictured is a Tennadyne T-8 log periodic installed on a 48' tower, at Pepe's QTH, on September 30, 2004. The antenna loads on 10, 12, 15, 17, & 20 meters. It was installed by Ed-N6GZI, who appears at the upper left inset. A 40 meter rotatable dipole is planned for the top of mast above the T-8.
The 48' tower supports a 40 meter inverted vee and an 80 meter bazooka vee.

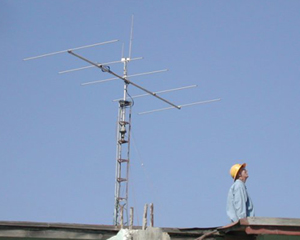

Pepe's 6 meter rotatable 5 element beam on a 30' tower, built by Dennis-N6KI, is at the left. Above the 6 meter beam is a Sweich 2 meter J-pole.
Strung between the towers are a fan dipole for 40, 30, 17 & 12 meters, and a 160 meter inverted "L" antenna.
A six foot diameter receiving loop for 160/80 meters was built by K6AM.
|
