Valve2
This is an on/off valve replacement for the AIR valves in automags. It is designed to give a "Reactive Trigger" effect similar to the RT's. I made a prototype (on a VERY old lathe so it didn't turn out all that great), and even with its shortcomings, I got the piston length tuned perfectly to give me some 8bps when I hit the sweet spot on the trigger. It was better than most RT's I�ve shot.......
Anyway, I've worked on this design for a while, and I'm sharing it in the hope that someone (anyone) will take the time to machine a quality part and test it. I hope someone does actually accomplish this.

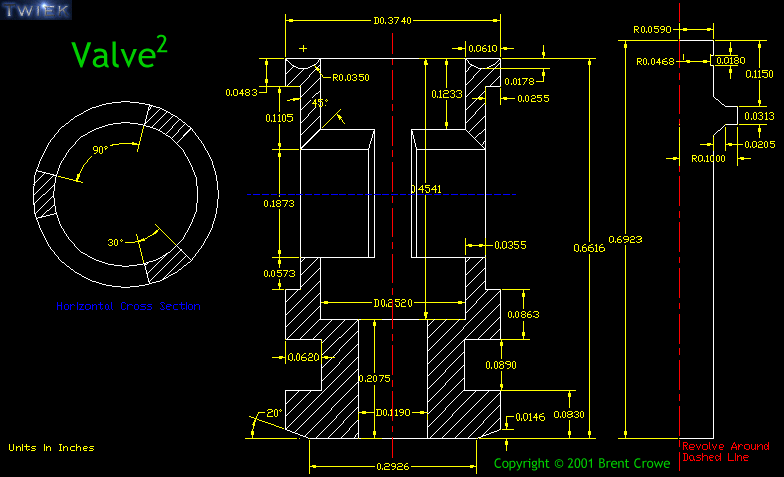

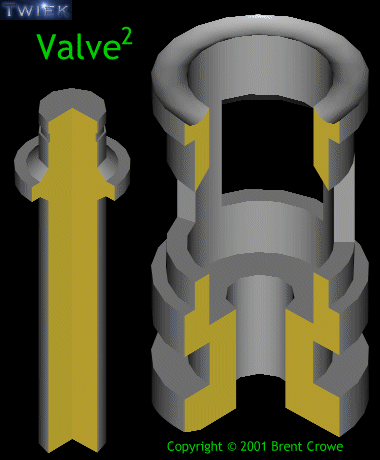

Anyway, here are the pics:

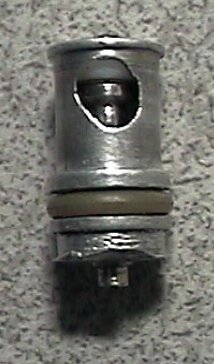

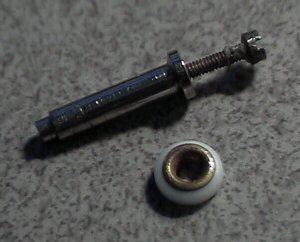

New: Prototype Pics
And the AutoCAD 14 dwg file can be found here
If anybody wants to contact me about the valve then e-mail me at [email protected]
