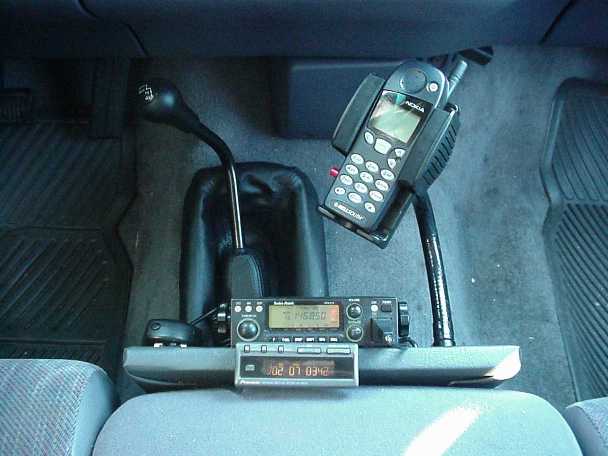

| This is where I decided to mount my 2m Ham radio, cell phone holder, and CD Player control. I did not want to damage the dash so I came up with this non-permanent method. I used a piece of 3/8" plywood, automotive vinyl, staples, a wood screw, and some plumbers tape. | |||||||||||||||||
|
|||||||||||||||||
| I got the vinyl at the local fabric store. It is a perfect match for the console fabric and was not very expensive. I covered the plywood with it and fastened with staples. | |||||||||||||||||
|
|||||||||||||||||

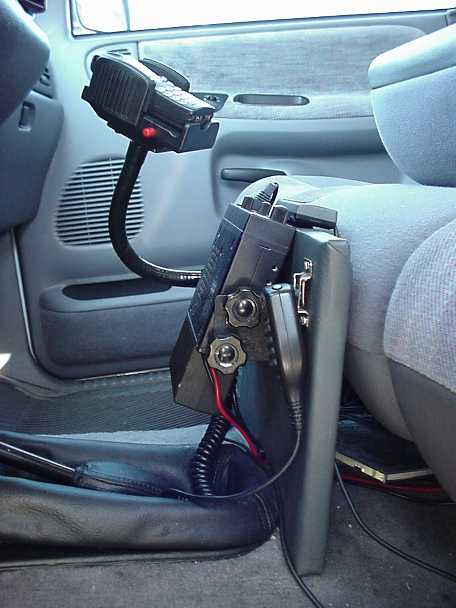

| Here is a side view. The plumbers tape is attached to the rear of the plywood with a wood screw. The plumbers tape goes underneath the middle seat and wraps tightly over the top of one of cross members. It is solid and when I decide to change things around I don't have any permanent holes in the truck. | |||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
