PACT
Vibratory Pan Sifters
AD-VPS Series
|
| |
|
|
|
|
|
|
Standard
features |
|
Pact
Vibratory Pan Sifters are versatile powder separating devices.
They are compact and energy efficient with a unique sound
reduction system that makes it one of the quietest sifters
on the market. The pans are specially constructed so cleaning
can be easily carried out. The drive system is fully enclosed
therefore meeting most food standards including HACCP. |
|
|
|
|
|
|
|
|
|
|
Applications
|
| |
- Pharmaceuticals and sanitary products
|
|
Menthol Crystals, Aspirin, Vitamin,
soaps and minerals |
| |
|
|
Cereals, Mineral Salts, dried meats, Sugar,
fruit powders, Vegetable oils Starch, dehydrated Milk, Crumbs,
Coffee |
| |
|
|
Clay Slips, Ball Clay, Bentonite, Ceramic Fibers |
|
|
|
Pre-Mix, Protein Concentrates, Lecithin Soya
Meal, Bran’s |
|
|
|
Wax Powder, Solvents, Plastic Beads, PVC Granules |
|
|
|
Pigments, Industrial Fibers, Abrasives, Sand
Tungsten and Abrasive ores |
|
|
|
|
|
|
|
|
|
|
|
| Special
Options |
|
- Single or multi layers configurations
- Various discharge settings,
- SUS 304, SUS 316 or SUS 316 L frames and Pans
- Quick release or spring tie down pan fixing system
- Explosion Proof Motors, frequency inverter vibratory
control
|
|
|
|
|
|
| AD-VPS
Pan Sifter Model Table |
Model |
Power
Requirement |
Sifting
Area |
Number
of stages |
AD-VPS-028-1 |
0.75kW |
0.28m2 |
1 |
AD-VPS-028-2 |
2 |
AD-VPS-028-3 |
3 |
AD-VPS-050-1 |
1.1kW |
0.5m2 |
1 |
AD-VPS-050-2 |
2 |
AD-VPS-050-3 |
3 |
AD-VPS-075-1 |
1.5kW |
0.75m2 |
1 |
AD-VPS-075-2 |
2 |
AD-VPS-075-3 |
3 |
|
| |
|
|
|
| |

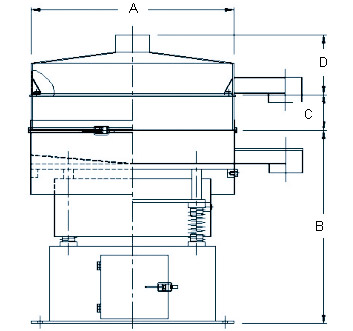

| AD-VPS
Pan Sifter General Dimensions |
Model |
Power |
Disc
Diameter A (mm.) |
Height
B (mm.) |
Height
C (mm.) |
Height
D (mm.) |
AD-VPS-028-
# |
0.75kW |
Ø610 |
750 |
180 |
350 |
AD-VPS-050-
# |
1.1kW |
Ø915 |
800 |
170 |
380 |
AD-VPS-075-
# |
1.5kW |
Ø1220 |
|
160 |
400 |
|
|
|
|
| Screen
Specification |
Wire
Mesh |
Mesh
Size |
Wire
Diameter |
4
x 4 |
Ø1.6mm. |
8
x 8 |
Ø0.7mm. |
20
x 20 |
Ø0.41mm. |
40
x 40 |
Ø0.25mm |
60
x 50 |
Ø0.178mm. |
|
|
Filter
Plate |
Hole
Diameter |
Frequent
per inch^2 |
Ø0.5 |
625 |
Ø0.6 |
401 |
Ø0.8 |
310 |
Ø1 |
285 |
Ø1 |
360 |
|
| |
|
|
Materials
of construction : SUS304, SUS316, SPG, AL, SS41or SPCC-SD |
| |
| General
Specification |
| Drive |
IP 55 Protection
TEFC |
| Vibration
Springs |
Spring Steel PE
Flexible cover |
| Bearings |
Fully Enclosed
Eccentric Bearing |
| Pan
Resting Plate |
SS316 4 mm plate |
| Balance
Arms |
SS316 plate with
radial adjustments |
| Pedestal |
SS316 Cylindrical |
| Housing
Feet |
Oil Proof Rubber
(Nitrile Rubber) |
| Deck
Fixings |
Quick Release Clip
with tension adjustment screws |
|
|
|
