PACT Pressure
Leaf Filters
V-PLF- Series
|
| |
|
|
|
|
|
|
Standard
features |
|
PACT

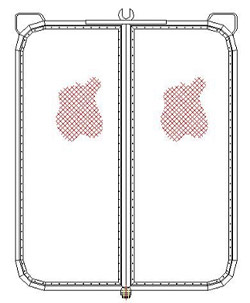

V-PLF filter is a vertical Tank type filter with vertical
leaves mounted on a central outlet manifold. Vertical type
filters are economical and ideally suited to location of limit
floor area. The PACT V-PLF Filters are mesh screen filters
that can be used in application that are high in temperature
and abrasive. |
|
|
|
|
|
|
|
|
|
|
|
Applications
|
| |
|
|
Bleaching of Edible Oil, Sugar
Starch FiltrationActivate Carbon |
| |
|
|
Resin Filtration, Activated Silica Filtration,
Catalyst Filtration |
| |
|
|
Defatted Meals, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Special
Options |
|
- Vibrator for quick cake
release.
|
- The PACT Vibration unit is equipped with variable high
frequency oscillator. The stroke of oscillation is also
variable.
|
|
|
- For pump feeding and valve control PACT can offer a
comprehensive control system to suit most applications.
|
|
- Vessel Construction Standard
|
- Pressure vessels are constructed according ASME Standard
|
|
|
- SUS304, SUS316L and SUS316S
|
|
|
- Carbon Steel, SUS 304 or SUS 316
|
|
|
|
|
|
|
|
|
|
V-PLF
Series
Model Dimensions
|
Model |
Filtration
Area |
Number
of leaves |
Cake
volume (max) |
V-PLF-05-C05 |
5 |
5 |
0.125 |
V-PLF-10-C09 |
10 |
9 |
0.250 |
V-PLF-15-C09 |
15 |
9 |
0.375 |
V-PLF-20-C11 |
20 |
11 |
0.500 |
V-PLF-25-C11 |
25 |
11 |
0.625 |
V-PLF-30-C15 |
30 |
15 |
0.750 |
V-PLF-38-C15 |
38 |
15 |
0.950 |
V-PLF-50-C17 |
50 |
17 |
1.250 |
V-PLF-60-C17 |
60 |
17 |
1.500 |
V-PLF-70-C19 |
70 |
19 |
1.750 |
V-PLF-80-C19 |
80 |
19 |
2.125 |
V-PLF-90-C19 |
90 |
19 |
2.250 |
|
|
|
|
|
| |
|
 |
|
 |
|
|
| |
|
|
| |
|
|
|

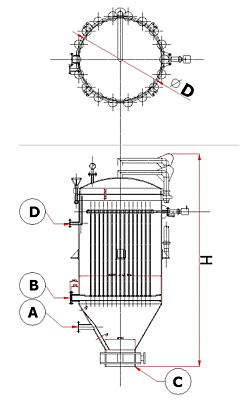

| MODEL |
|
Expanded Heightmm |
A
JIS |
|
C
JIS |
D
JIS |
E
Leaf Height |
Vessel
Volume |
Filter
Weight Empty kg |
| V-PLF-05-C5 |
780 |
2,200 |
50 |
80 |
350 |
25 |
920 |
0.4 |
650 |
| V-PLF-10-C9 |
900 |
1000 |
50 |
80 |
350 |
25 |
920 |
1.0 |
900 |
| V-PLF-15-C9 |
100 |
1400 |
80 |
100 |
500 |
25 |
920 |
1.7 |
1200 |
| V-PLF-20-C11 |
1225 |
1400 |
80 |
100 |
500 |
25 |
920 |
2.3 |
1700 |
| V-PLF-25-C11 |
1380 |
1500 |
100 |
125 |
600 |
40 |
920 |
3.1 |
1900 |
| V-PLF-30-C15 |
1500 |
1700 |
100 |
125 |
600 |
50 |
920 |
4.2 |
2100 |
| V-PLF-38-C15 |
1500 |
1850 |
100 |
125 |
600 |
50 |
1350 |
4.5 |
2150 |
| V-PLF-50-C17 |
1650 |
1700 |
125 |
125 |
600 |
50 |
1350 |
5.9 |
2450 |
| V-PLF-60-C17 |
1650 |
1850 |
125 |
125 |
600 |
50 |
1350 |
6.2 |
2500 |
| V-PLF-70-C19 |
1750 |
1850 |
150 |
(2x)100 |
700 |
80 |
1350 |
6.8 |
2700 |
| V-PLF-80-C19 |
1750 |
1850 |
150 |
(2x)100 |
800 |
80 |
1350 |
7.8 |
2950 |
| V-PLF-90-C19 |
1850 |
1850 |
150 |
(2x)100 |
800 |
80 |
1350 |
7.8 |
3910 |
|
|
|
|
|
|
| |
|
|
|
|
