PACT Filter Presses
V-PLF- Series
|
|
|
|
We
at PACT are committed to achieving maximum customer satisfaction
through quality products and services. Understanding that quality
is ultimately determined by the customer, we have become flexible
in our approach so as to provide the most efficient and effective
solution to each challenge our customers set. |
|
|
|
|
|
Standard
features |
|
PACT
Filter Presses are designed in accordance to DIN standard
7129. Materials for construction are source from quality
assured suppliers. PACT guarantees all materials of construction
to be as specified. Material certification can be supplied
if necessary.
Cloth Types
The filter cloth type plays a very important role in the
performance of the filter. Working with Filtex filter cloth
PACT can provide more than 100 different types of filter
cloth. Using experience and where necessary actual laboratory
scale tests PACT can select the correct cloth for you filter
application.
Plate types
The quality of the filter plates greatly influences the
life of the plates and the amount of leakage that will occur
at the plate edges. PACT uses plate suppliers who manufacturer
using the highest standards available. PACT also has in-house
capabilities to manufacture filter plate of various materials
such as Silimon (Aluminum alloy like material) or cast steel.
The following is the range of plate sizes available from
PACT:
(1) 250 x 250 mm (2) 500 x 500 mm (3) 630 x 630 mm (4) 800
x 800 mm (5) 1000 x 1000 mm (6) 1200 x 1200 (7) 1500 x 1500.
|
Filter
Press Types
PACT manufactures the following types of filter presses:
- Membrane Filter Press
- Chamber Filter Press
- Plate &frame filter press
|
|
|
|
|
|
|
|
Applications
|
| |
Using
a combination of international expertise we have developed
a series of filter presses that will effectively meet the
requirements of many de-watering applications. Our filter
presses have been successfully used a wide range of de-watering
applications. Some of these include: |
| |
- Activated Biological Sludge
- Mineral oil precipitate
- Phosphoric sludge
- Ink Sludge
- Anaerobic digested sludge
- Ceramic waste
|
- Heavy metal sludge
- Chromium Sludge
- Copper complex filtration
- Activated Clay
- Glycerin water pre-treatment
- Food processing waste
|
|
|
|
|
|
|
|
|
|

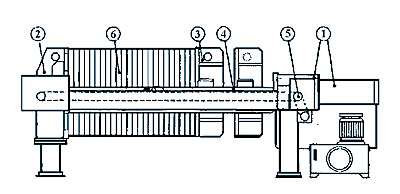

| Basic
Component of PACT Filter Press |
- Electro-Hydraulic Closing Device (Manual systems are
available)
- Head Piece
- End Piece
- Side bars
- Hydro-Mechanical Filter Plate Shifter (Optional)
- Filter plate pack with cloth
|
|
|
|
PACT-M
500 Series Filter Presses |
|
| General
Specifications | M 500 series Model |
|
| General
Specifications |
|
Filter
plates
|
500 mm x 500 mm |
|
Polypropylene (virgin homopolymer material) |
|
10 L |
|
32 mm |
|
Center Feed |
- Standard discharging format
|
Open system |
|
Side
Bars
|
St 52.3 sh (DIN) or equivalent
|
|
Rectangular Section |
|
Through Pinned and welded |
|
|
Hydraulic
closing device
|
Manual or pneumatic |
|
75 mm, to 150 mm (depending
on press size) |
|
100 NL/min |
|
Swivel type |
|
10 L (max) |
|
|
Finishing
|
Machine Finished |
|
Machine Finished |
|
Wire Brush |
|
Wire Brush |
|
All Frame parts Receive a
double coat of rust resistant paint and a finishing
top coat of polyurethane. |
|
Nippon Paint Bright Yellow |
|
|
Operating
Conditions
|
5 - 63° C |
|
Requires protection from
direct sunlight |
|
1 to 12 |
|
15 Bar (max) |
|
Manufacturing
& Design Standards
|
Designed in compliance with
DIN7129 |
- Materials for Construction
|
Materials for Side bars and end plates
are all delivered with internationally recognized mill
certificate |
|
|
Connections
|
DN 65 (Or equivalent in desired
standard) |
|
DN 65 (Or equivalent in desired standard) |
|
|
|
|
|

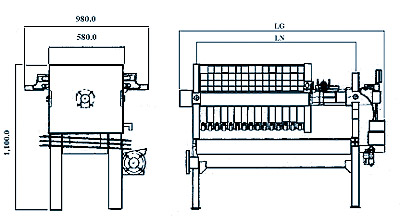

| PACT-M
500 Series Filter Presses Model |
ModelRange |
Weight
Approx.(Kg) |
Dimensions
mm |
No
of Chambers |
Volume
of Press |
LG |
LN |
Min |
Max |
Min(L) |
Max(L) |
M1 |
620 |
1355 |
1000 |
1 |
9 |
6.2 |
55.8 |
M2 |
680 |
1555 |
1200 |
10 |
12 |
62 |
74.4 |
M3 |
700 |
1755 |
1400 |
13 |
16 |
80.6 |
99.2 |
M4 |
725 |
1955 |
1600 |
17 |
19 |
105.4 |
117.8 |
M5 |
740 |
2155 |
1800 |
20 |
22 |
124 |
136.4 |
M6 |
770 |
2355 |
2000 |
23 |
26 |
142.6 |
161.2 |
M7 |
790 |
2555 |
2200 |
27 |
29 |
167.4 |
179.8 |
M8 |
820 |
2755 |
2400 |
30 |
33 |
186 |
204.6 |
M9 |
850 |
2955 |
2600 |
34 |
36 |
210.8 |
223.2 |
M10 |
880 |
3155 |
2800 |
37 |
40 |
229.4 |
248 |
M11 |
920 |
3355 |
3000 |
41 |
43 |
254.2 |
266.6 |
M12 |
960 |
3555 |
3200 |
44 |
46 |
272.8 |
285.2 |
M13 |
990 |
3755 |
3400 |
47 |
50 |
291.4 |
310 |
|
| PACT
M-500 series consists of 500 x 500 filter plates and operates at
pressures of up to 15 Bar. |
|
|
|
|
| Performance
of a PACT filter press |
Sludge
Type |
Polymer consumption(powder based)
Kg/1000kg ds
|
Cycle
Time
Hrs |
Operating
pressure
Bar |
Dry
Solids % of Slurry |
Dry
Solids % of Filter Cake |
| Municipal Extended
aerated sludge <10 days |
3-4.5 |
3.25 |
15 |
3-4% |
22-28% |
| Municipal Extended
aerated sludge <10 days |
3-4 |
4.5-6 |
5 |
0.8-1% |
15-20% |
| Municipal Extended
Aerated sludge >15 days |
3-4 |
3 |
15 |
3-4% |
24-31% |
| Municipal Thermophilic
Anaerobic Sludge |
2-3 |
2.5 |
15 |
>4% |
25-34% |
| Municipal Thermophilic
Anaerobic Sludge |
2-3 |
4.5 |
5 |
>4% |
24-30% |
| Municipal Raw Mixed
Sludge |
2-4 |
4 |
15 |
2-3% |
23-30% |
| Municipal Primary
anaerobic digested sludge |
2-3.5 |
2.5 |
15 |
>4% |
25-33% |
| Ferrous sludge,
wire manufacturing |
2 |
2.5 |
15 |
>8% |
30-35% |
| Biological waste
Textile manufacturing |
3 |
3 |
15 |
3% |
22-28% |
| Glass grinding
waste |
1 |
1 |
5 |
4-6% |
40-60% |
| Biological Sludge
Plastics manufacturing |
3 |
3 |
15 |
2-4% |
24-30% |
| Chemical Sludge
Plastic manufacturing |
2 |
3 |
15 |
3-5% |
26-32% |
| Ceramic Sludge,
Mosaic Manufacturing |
2 |
2 |
15 |
5-8% |
60-80% |
| Metallic sludge,
PCB manufacturing |
3 |
3 |
15 |
3-4% |
28-35% |
| Tanning sludge,
Leather manufacturing |
3 |
3.5 |
15 |
2-3% |
22-28% |
| Stone grinding
sludge |
1 |
1.5 |
5 |
6-9% |
50-80% |
| Biological sludge,
Brewery process |
3 |
3.5 |
15 |
2-3% |
22-28% |
| Biological sludge,
Chicken Abattoir process |
3 |
4 |
15 |
3-4% |
22-28% |
|
