PACT Bag Filters
AA-BF- Series


Standard features
  • Easy access with eye bolts and attached opening tool
  • Vessels Designed and built according to ASME Code.
  • Precision machined to ensure no leak
  • Inlet and outlet nozzles strategically located to avoid excess pressure drops and cake disturbances due to flow.

Applications

  • Food
  Polishing Bleached Edible Oil, Sugar Starch Filtration,Activate Carbon

  • Chemicals/Plastics
 Resin Filtration, Activated Silica Filtration, Catalyst Filtration

  • Building Material
 Pigments, Industrial Fibers, Abrasives, Gypsum
Special Options
  • Connection Flanges
  • Bolted, Thread or Sanitary type
  • Configurations
  • Single Bag Filters, Double Bag Filters. Multi Bag Filters
  • Indicators
  • Flow Meters, Pressure Drop Meters
  • Material
  • SUS304, SUS316L and Carbon Steel
  • Heating
  • Steam Jacketed, Internal Coil
  • Special feature
  • Side or Top Entry models in accordance to the application.
Bag Filters Specifications
Description
Model:BF-01
Model:BF-02
Filter area (m2)
0.25
0.5
Vassal volume
2.7L
35L
Overall Dimension
Shell Diameter A
Ø 8”
Ø 8”
Body Height B
680mm.
980
Width C
220mm.
220mm.
Connection
Inlet
DN 50, PN 10 (ANSI or BS on request)
Outlet
Vent
1/2” G
Pressure Gauge
1/2” G
Properties
Shell Pressure
8 Bar, 150°C
Jacket Pressure(Option)
3 Bar, 135°C
Material
Carbon Steel
SUS304
SUS316
Epoxy Coating
Gasket
EPDM, Neoprene

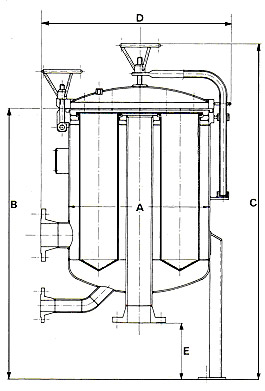

Multi Bag Filters Specification
Model
Connection
Number of Bags
Filter Area(m2)
Dimensions
Inlet
Outlet
A (mm.)
B (mm.)
C (mm.)
D (mm.)
E
(mm.)
BF-03/0.75 DN50 DN50
3
0.75
500
850
1150
600
250
BF-04/1 DN50 DN50
4
1
600
850
1150
750
250
BF-05/1.25 DN80 DN80
5
1.25
650
900
1200
800
250
BF-03/1.5 DN80 DN80
3
1.5
500
1200
1500
600
250
BF-04/2 DN100 DN100
4
2
600
1200
1500
750
250
BF-05/2.5 DN100 DN100
5
2.5
650
1250
1550
800
250
BF-06/3 DN100 DN100
6
3
700
1250
1600
900
250
BF-08/4 DN125 DN125
8
4
900
1300
1650
1150
250
BF-10/ 5 DN125 DN125
10
5
1000
1350
1700
1250
250
BF-12/6 DN150 DN150
12
6
1100
1350
1700
1350
250
BF-14/7 DN150 DN150
14
7
1200
1400
1700
1450
250
Needle Felt Filter Bag Specification
Description
Model 01
Model 02
Bag Diameter (A)
Ø7"
Ø7"
Bag Length (B)
17"
34"
Reinforcing Ring Material
SUS304, SUS316
Nominal Rating
5, 10micron
Cloth Material
Fuse Filtex Needle Felt
Stitching Thread
Polypropylene
