PACT
Waste Crusher
FL-WC- Series
|
| |
|
|
|
|
Standard
features |
| |
Pact
Crushers are versatile size conditioning machines. They are
effective in crushing and de-lumping a variety of materials.
As a waste crushers they can be used to reduce the size of
most organic kitchen waste. This includes bones and also hard
plant matter. As a de-lumper they can be used most effectively
on a variety of industrial materials with varying size and
hardness characteristics. These machines can be fitted with
auto reverse function so that in the event of a stalled condition
the machine will reverse then run forward again. |
|
|
|
Applications
|
| |
|
|
Cereals, Mineral Salts, dried meats,
Sugar, fruit powders, Starch, dehydrated Milk, Crumbs, Coffee,
Pepper, Chili Powder, Herbs, Spices, Dried Seafood, Seasoning |
| |
|
|
Fillers, Ceramic Fibers, enamels |
| |
|
|
Defatted Meals, |
| |
|
|
Hard Wax Milling, Plastics and rubber |
|
|
|
| Special
Options |
| |
- Variable impact speeds of more than 300 km/hr
- Screen Air Cleaning; manual and Auto activation,
- Flooding sensor for rotary valve feeding systems
- Input Screens
- Mesh floors with Variable Aperture
- Dust Venting Manifolds for systems with direct outlets
- Independent blade sets for economic maintenance
- Fully Automatic Control Systems
- Air Purge Seals
- Mechanical Tungsten Carbide long life Seals
- Nitrogen and Water Cooling
- Stalling Fingers
- Thermal Shut Down Sensors
- Dehumidifying vent systems
|
|
|
| Materials,
Finishes and Coatings |
| |
- SUS
304
- SUS 316L
- Stainless steel Glass bead short grade 4 or 8
- Stainless steel with 120 Grit Finish
-
Carbon Steel with Epoxy Coated
- Halar Coating
- Rubber Lined End Walls
|
|
|
|
|

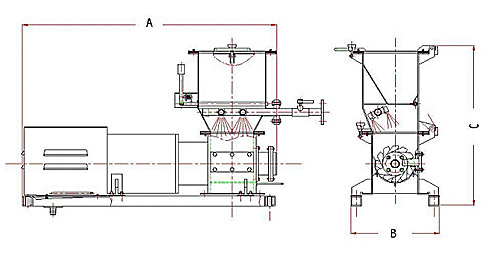

WC
Series Model Dimensions
|
Model
|
Power
Requirment |
Overall
Length(m),A |
Overall
Width(m),A |
Overall
Height (m),C |
Maximum
Number of Cutters |
FL-WC-022 |
2.2
kW |
800 |
300 |
400 |
4 |
FL-WC-040 |
4.0
kW |
900
|
300 |
400 |
6 |
FL-WC-075 |
7.5
kW |
1000
|
400
|
600
|
9 |
FL-WC-110 |
11
kW |
1200 |
420 |
800
|
15 |
FL-WC-180 |
15
kW |
1400
|
500 |
1000
|
18 |
FL-WC-220
|
22
kW |
2000
|
1000
|
1400 |
30 |
|
|
|
|
|
|
|
|
|
|
|
|
