PACT
Static Mixers
ASX- Series
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Standard
features |
| |
PACT
Static mixers are compact in line mixing devices with no moving
parts. These mixers can produce a homogeneous blend of dispersion
in laminar, transitional or turbulent flow within a very short

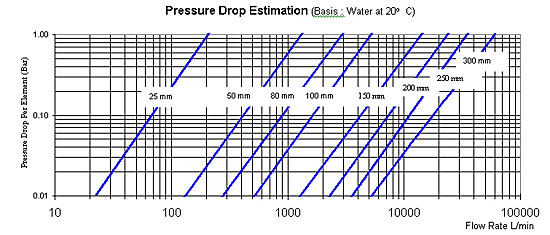

pipe length. PACT has specially designed mixing elements to
ensure the mixers do not have excessive pressure drop in the
pipe line. This is achieved through research and development
and the use of very accurate manufacturing machinery. The
advantages of using static mixers include low capital cost,
easy installation, lower maintenance, long service life and
low power requirement |
|
|
|
Applications
|
| |
-
Liquid Lquid Mixing
-
Gas Liquid Mixing
-
Flash Mixing
- Polymer
Dilution
-
Sulfuric Acid Dilution
- Phosphorous
De-gumming
- Flocculation
- Chlorination
- Hydrochloric Acid Dilution
|
|
- Ceramic Conditioners
- Water De-gumming
- Soap Splitting
- De-ionization Plants
- FeCl3 Addition
- Coagulant Addition
- Neutralization of Oils
- pH Adjustment
|
|
|
| Type
of Elements |
|
|
|
|
|
|
|
|
|
|
Removable
Elements are mechanically fixed by a series
of bolts into the body of the mixer and can be easily remove
by the use of a spanner. This system is more suited to systems
susceptible to fouling |
|
|
Fixed
Elements are carefully welded to the body
of the mixer. For critical conditions welded joins are X-Rayed |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Materials
of Construction |
| |
-
Carbon Steel
- PVC
- Polyproplene
- Teflon
-
Halar Coated Steel
|
|
- Stainless Steel AISI 316S
- Ceraflake Coated Steel
-
Stainless Steel AISI 304
-
Stainless Steel AISI 316
-
Stainless Steel AISI 316L
|
|
|
|
| Characteristic |
|
 |
|
|
|
|
Static
Mixers ASX- Series Model |
Model
|
MaximumFlow
Rate |
Pipe Diameter |
Total
length including end flanges |
2
elements |
3
elements |
6
elements |
ASX-025 |
3
M3/hr |
1"
(25 mm) |
100
mm |
140
mm |
260
mm |
ASX-038 |
7
M3/hr |
|
142
mm |
203
mm |
386
mm |
ASX-050 |
13
M3/hr |
2"
(50mm) |
176
mm |
254
mm |
488
mm |
ASX-065 |
20
M3/hr |
2
1/2"
(63 mm) |
212
mm |
308
mm |
596
mm |
ASX-080 |
30
M3/hr |
3"
(75 mm) |
256
mm |
374
mm |
728
mm |
ASX-100 |
50
M3/hr |
4"
(100 mm) |
330
mm |
485
mm |
950
mm |
ASX-125 |
80
M3/hr |
5"
(125 mm) |
434
mm |
641
mm |
1262
mm |
ASX-150 |
110
M3/hr |
6"
(150 mm) |
518
mm |
767
mm |
1514
mm |
ASX-200 |
210
M3/hr |
8"
(200 mm) |
672
mm |
998
mm |
1976
mm |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
