PACT
Side Entry Mixer
FX Series
|
|
|
 |
|
 |
|
 |
|
|
|
|
Standard
features |
| |
PACT
Side Entry Mixers are designed for solids suspension and
mixing. PACT’s proven side Entry design assures you of a
machine that will perform to the required task and give
many years of reliable service. The following is some major
advantages in using a PACT Side Entry Mixer:
- Fast and Easy Seal Change while tank is full
- No Need to remove V-Belts to access seal
- V-Belts or Tooth Belt Drives available
- Fully enclosed and sealed bearings with a fatigue life
of more than 100,000 hours
- No in Tank Bearings
- Choice of Wetted parts materials
- Double mechanical Seals with lubricators and Explosion
proof motors available
- Variable Stand configuration to suit the terrain around
the tank
|
|
|
|
Applications
|
|
|
|
Cocoa Butter Blending and storage |
|
|
|
Crude Oil Storage, Bleaching, Winterization
in horizontal tanks |
|
|
|
Heat Transfer, Solids Suspension mixer. |
|
|
|
Crude Oil Storage |
|
|
|
Slip Storage |
|
|
|
|
|
|
|
|
|
|
|
| Special
Options |
| |
- Leak Detector Sensor Alarm
- Storage tank low level cut off
- Lock off Unit
|
|
|
| Materials,
Finishes and Coatings |
- SUS
304
- SUS 316
- Teflon Coating
- Stainless steel with 120 Grit Finish
- Carbon Steel with Epoxy Coated
- Halar Coating
|
- Carbon Steel
- SUS 316 L
- Hastalloy
- Stainless steel Glass bead short grade 4 or 8
- Rubber Coating
- Ceraflake Coating
|
|
|
|
|
FX
Model Table (Most popular models)
|
Model
|
Power
Requirment |
Impeller
Type |
Shaft
Speed (RPM) |

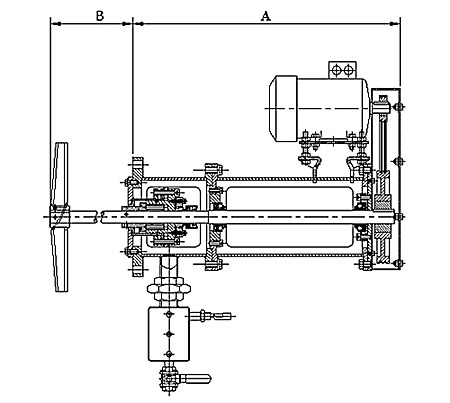

Pedestal
Length A (m) |
Shaft
Length B (m) |
FX01-S4 |
0.75
kW |
HIT
480 |
250 |
890 |
600 |
FX02-S4 |
1.1
kW |
HIT
410 |
360 |
750 |
600 |
FX03-S4 |
1.5
kW |
HIT
480 |
310 |
750
|
650 |
FX04-S4 |
2.2
kW |
HIT
510 |
310 |
750 |
650 |
FX05-S4 |
3.0
kW |
HIT
510 |
360 |
850 |
700 |
FX06-S4 |
4.0
kW |
HIT
600 |
310 |
850 |
700 |
FX07-S4 |
5.5 kW |
HIT 580 |
360 |
850 |
700 |
FX08-S4 |
7.5 kW |
HIT 680 |
310 |
850 |
700 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
