PACT Bar Millers
SA-BM- Series


Standard features
            Pact Bar Millers are versatile size reduction machines. They are most effective in size reduction of crystalline dry materials. These machines can provide variable impact speeds ranging in excess of 300 km/hr, the BM series Millers can reduce the size of particles such as sugar, salt and flour to a fine powders efficiently, hygienically and without causing heat damage. With high quality double row spherical roller bearings strategically located on the shaft the BM series Millers are designed to ensure bearing failure will not cause catastrophic machine failure

Applications

  • Food
  Cereals, Mineral Salts, dried meats, Sugar, fruit powders, Starch, dehydrated Milk, Crumbs, Coffee, Pepper, Chili Powder, Herbs, Spices, Dried Seafood, Seasoning

  • Ceramics
 Fillers, Ceramic Fibers, enamels

  • Animal feed
 Defatted Meals,

  • Chemicals
 Hard Wax Milling, Plastics and rubber
Special Options

  • Variable impact speeds of more than 300 km/hr
  • Screen Air Cleaning; manual and Auto activation,
  • Flooding sensor for rotary valve feeding systems
  • Input Screens
  • Mesh floors with Variable Aperture
  • Dust Venting Manifolds for systems with direct outlets
  • Independent blade sets for economic maintenance
  • Fully Automatic Control Systems
  • Air Purge Seals
  • Mechanical Tungsten Carbide long life Seals
  • Nitrogen and Water Cooling
  • Stalling Fingers
  • Thermal Shut Down Sensors
  • Dehumidifying vent systems
Materials, Finishes and Coatings

  • SUS 304
  • SUS 316L
  • Stainless steel Glass bead short grade 4 or 8
  • Stainless steel with 120 Grit Finish
  • Carbon Steel with Epoxy Coated
  • Halar Coating
  • Rubber Lined End Walls

WC Series Model Dimensions

Model
Power Requirment
Overall Length(m),A
Overall Width(m),A
Overall Height (m),C
Maximum dedign
Maximum Number of Cutters
SA_BM-022
2.2 kW
720
600
450
Single Chamber
4
SA_BM-040
4.0 kW
750
620
460
Single Chamber
6
SA_BM-075
7.5 kW
850
550
550
Single Chamber
9
SA_BM-110
11 kW
1,070
678
678
Single Chamber
15
SA_BM-180
15 kW
1,140
700
700
Double Chamber
18
SA_BM-220
22 kW
2,200
950
950
Double Chamber
30

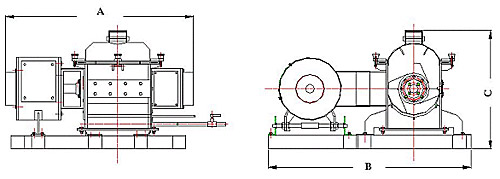

Single Chamber Design

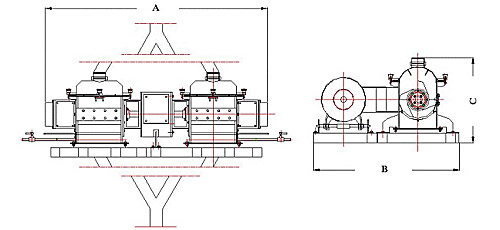

Double Chamber Design
General Specification

Drive
  • High torque Muff Type Couplings
Crushing Shearers
  • Two Point Hardened steel replaceable blades
Coupling
  • High torque Muff Type Couplings
Fingers
  • Harden steel fingers with bolted mounting plate
Seals
  • Air Purge Seals
Screen
  • Draw type Removable
Bearings
  • Marine Grade Deep Groove Ball Bearings
Flywheel
  • Bolted to disk coupling
Crushing Chamber
  • Not less than 6 mm thick with wearing plates
Inlet/Outlet Flanges
  • Square with fixings at 50 mm centers
