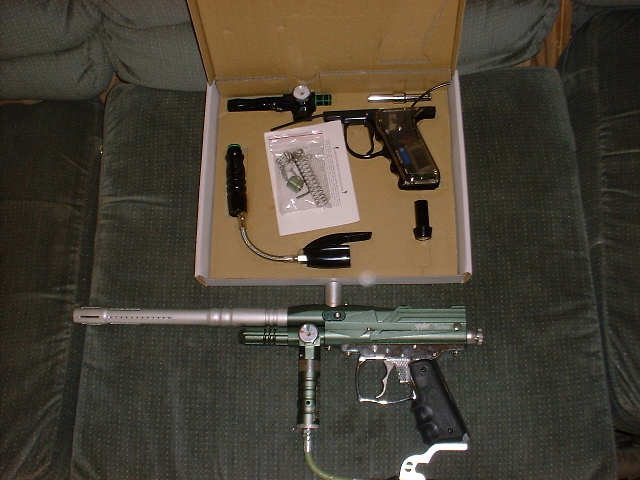

| This is what I started out with. A brand new Spyder Rodeo. The first purchase I made for the Rodeo was the Dragun Empire ONE Kit |
|
|
|
|
Click on thumbnails for larger images. |
|
|
|
|
|
|
|
 |
|

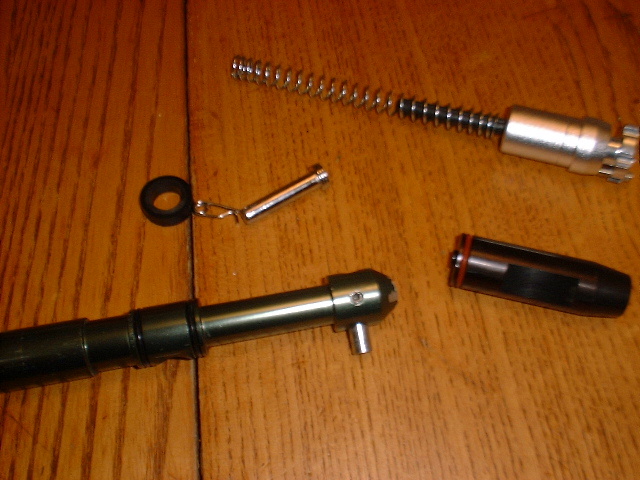

| First we start by taking the internals out of the marker. To acomplish this, you remove the pin from the back of the marker. Then you slide the internals out the back. |
|
|
|
|
|
|
 |
|

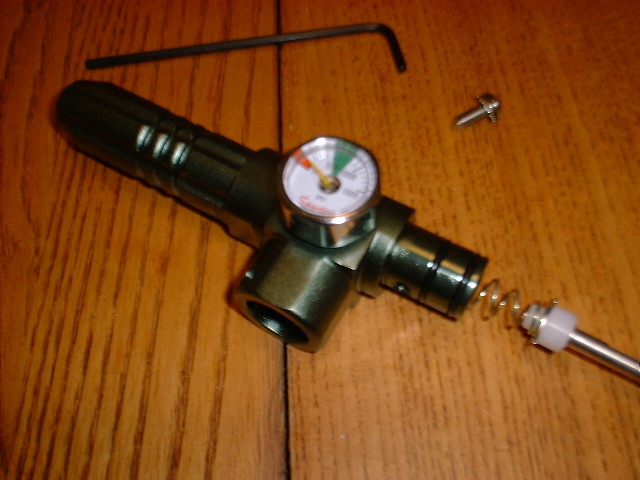

| Next we remove the drop forward and regulator by removing the two screws at the bottom of the grip, then unscrew the regulator from the vertical asa. |
|
|
|
|
|
|
 |
|

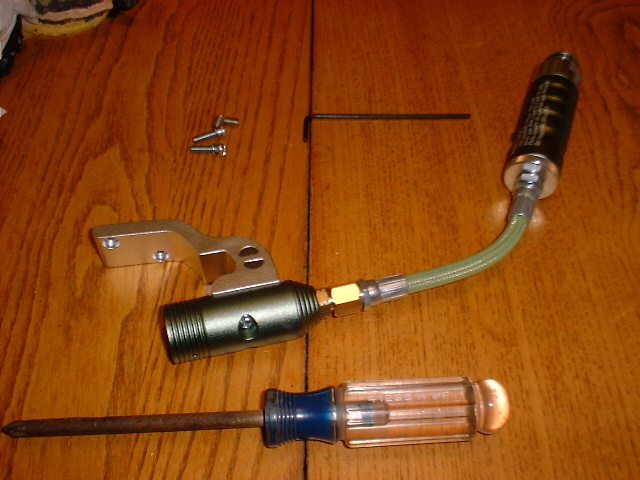

| Next we remove the vertical asa by removing the screw directly behind the asa on the receiver. Then pull the asa out of the receiver. |
|
|
|
|
|
|
 |
|

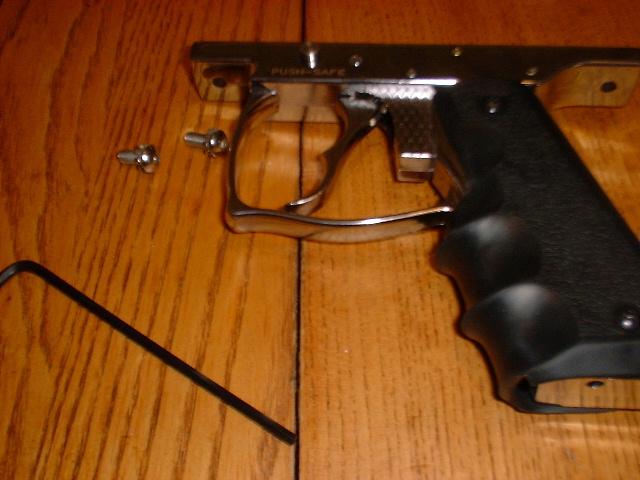

| Next we remove the grip frame by removing the screws from the front and rear of the grip frame. |
|
|
|
|
|
|
 |
|

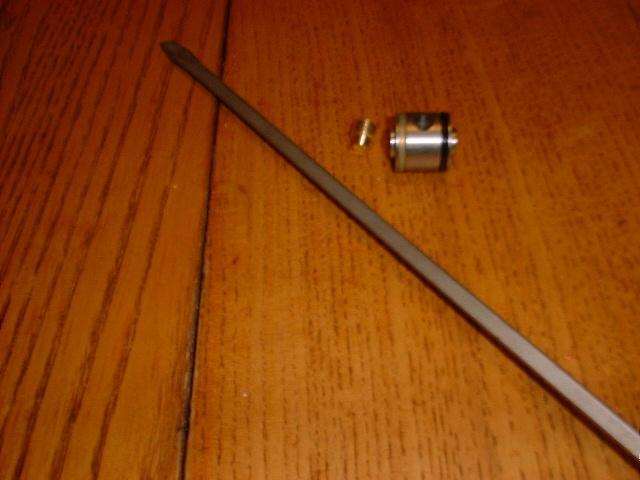

| Then remove the valve from the receiver by removing the brass screw from the bottom of the receiver with a flat head screwdriver. Then carefuly push the valve from the back side to the front with a large skinny object. |
|
|
|
|
|
|
 |
|

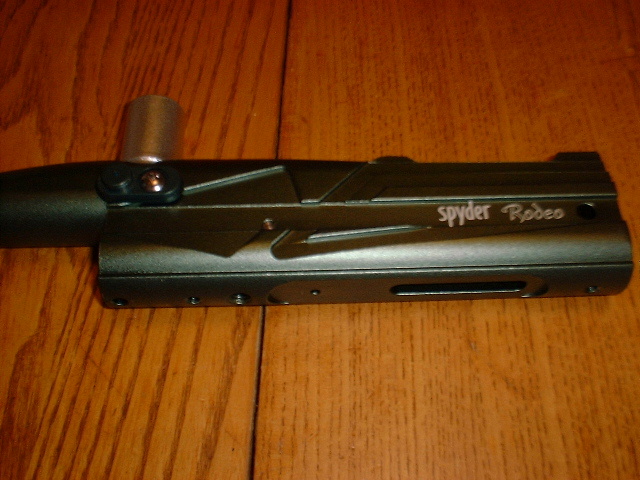

| Now we have an empty receiver ready to accept the ONE kit internals |
|
|
|
|
|
|
