REF Disc = Video Essentials / DTS via AVIA & S&V DVD UPDATED Calibration Results ( 3-8-03 updated**) ======================================== REF Level - 5 HT Spkrs = 75 dB / AVIA & S&V HT Tune-up DTS = 85 dB REF Level - Sub/LFE = 80 dB** AVG (**SPL needle highest swing, 81 dB tick mark)
DD - Left Front: DOT -16(*Vol. Control Knob) >> For DTS = -16 >> For DPL = "DOT" between -20 & -16 Center: - 7 DD - Right Front: DOT -16 (*Vol. Control Knob) >> For DTS = -16 >> For DPL = "DOT" between -20 & -16 Left Rear: + 2** (for DPL & DTS - same) Right Rear: + 2** (for DPL & DTS - same)
Balance: 0 Bass: 0 Treble: 0
SW: - 11 ^^^ DD LFE: - 4 DTS LFE: + 6 Digital Delay: 0

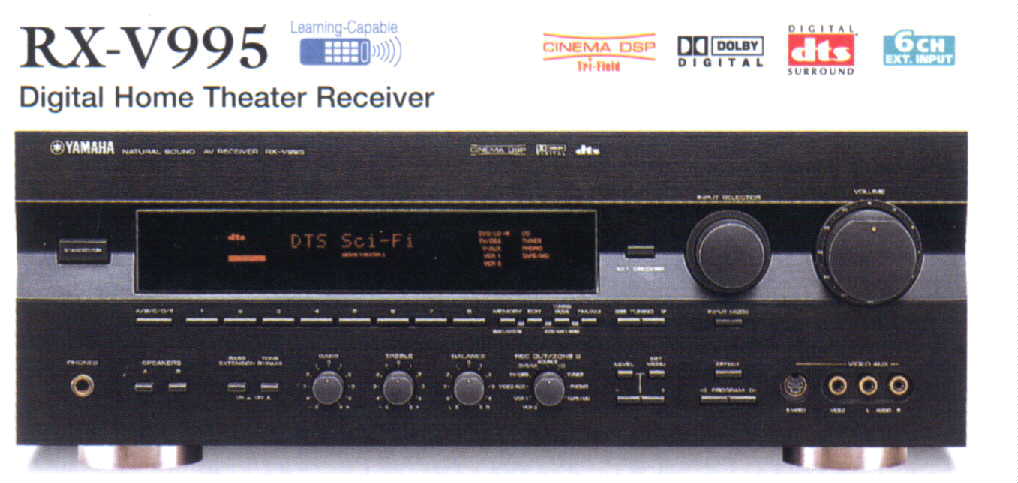

Mains: Small Center: Small Surrounds: Small Bass Management: SW ===================== *Yamaha uses dB Scale increments with their Volume Control Knob -20 dB = 11 o'clock position -16 dB = 12 o'clock position -12 dB = 1 o'clock position ===================== SVS 25-31PCi Power Sub Settings: Connection: Line IN (from the Yamaha's Sub-Out) Level Control: 12** o'clock position^^^ Crossover: Bypassed (the RX-V995 is already providing the crossover @ 90 Hz) |
