Here is some information on the mopar 802 radio you may need to print this to read it any probelms contact me and I will try to correct

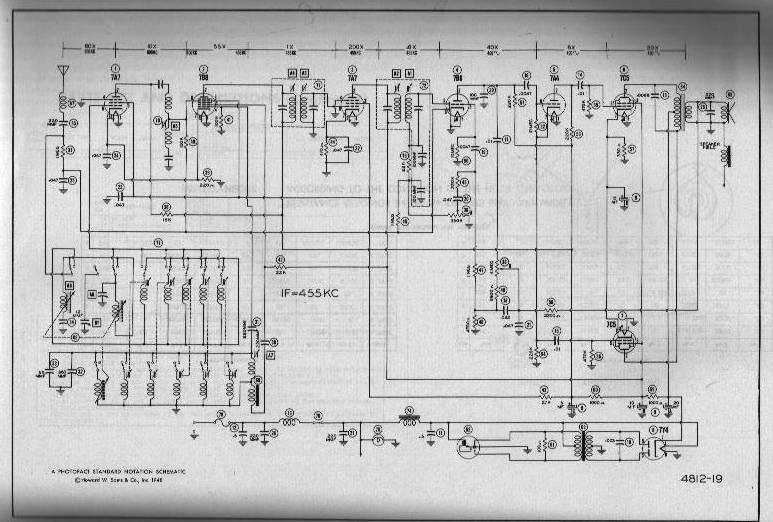

802 Wire Diagram P15

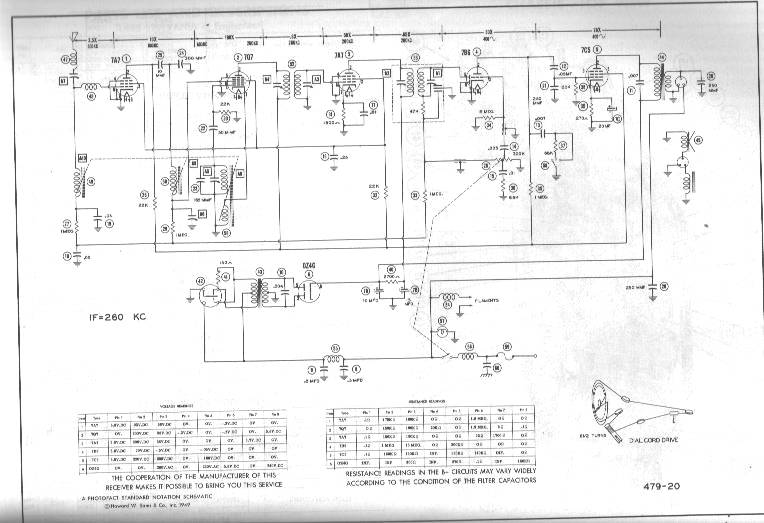

602 Wire Diagram P15

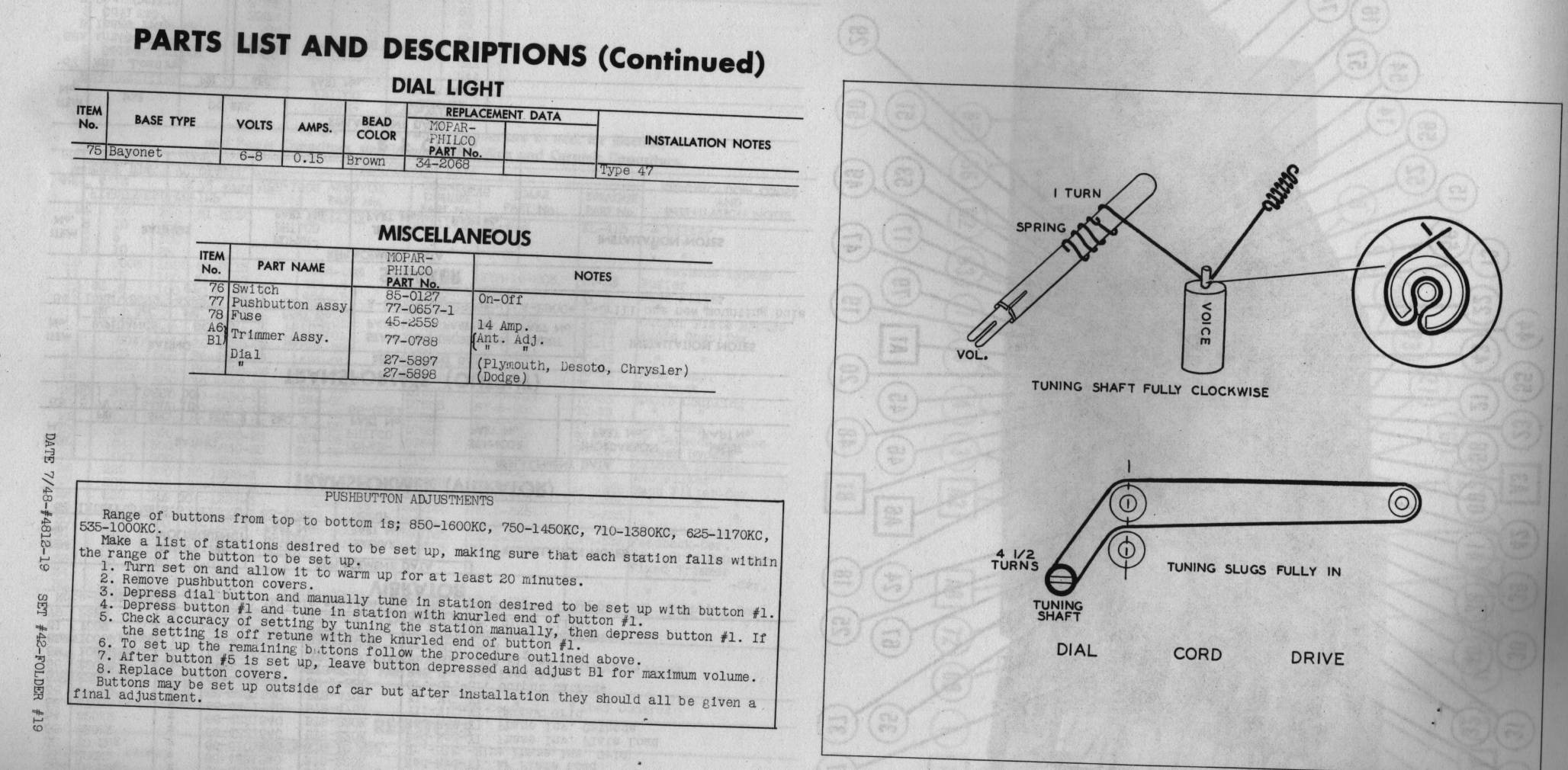

button set up and dial string 802

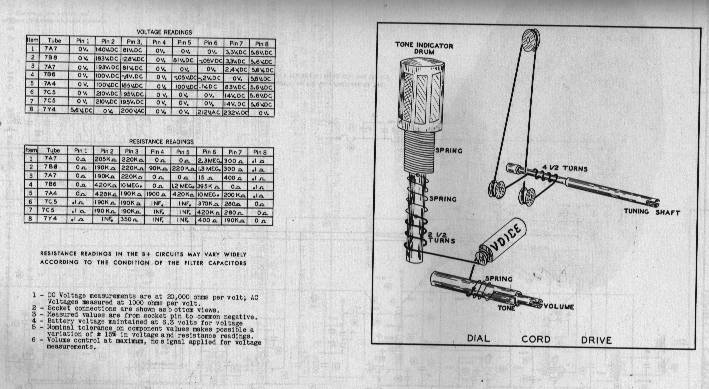

another view dial string 802
