6 Magnet Group 15 Project II
(Project II) The motor again is made from used parts, The Can is a Koford ultra short
I opened the window in the can the magnets started as RJR angle tip quods,
and the center segment is made from old Koford Gp15 quods.

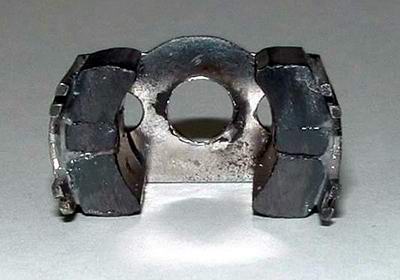

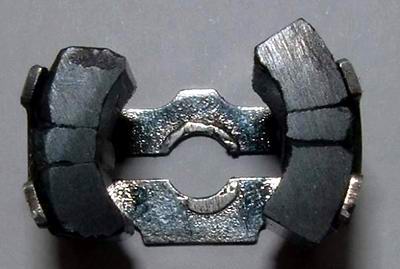

Pictures 1 and 2 shows before they are cut down.

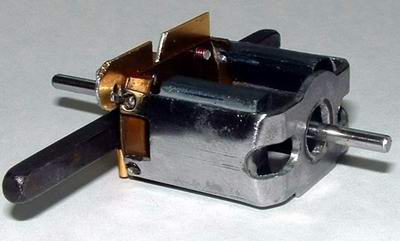

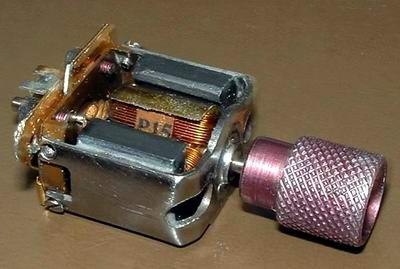

I only have .480" dia Arms so this is honed to suit. I was working on the idea to increase
this to a .500" dia Arm later.
I made the magnets .475" Tall and I have shortened the Length to .440" Long from .510" standard length.

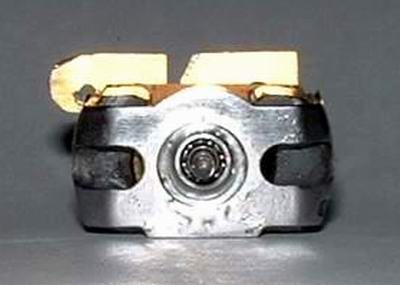

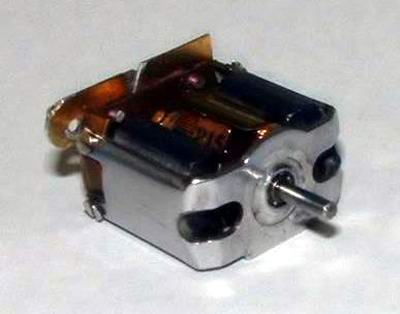

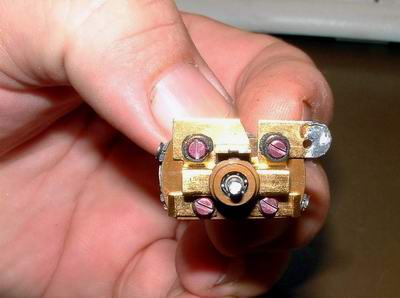

This motor has gold horizontal hoods. The motor is ready to Zap at this stage.
