PRD___Gp 7
The Can and Magnets are hand made, the magnets where
single .400" x .400" magnets cut in half
(I do not recommented others do this!)
its just what I did and from a broken set I cut the
center segments .080" x .400" thick.

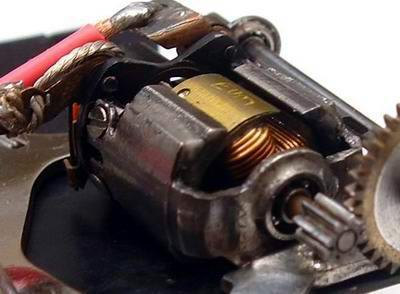

The finished Motor is .485" x .400" with 6 segments,
it has a Pro Slot 17t25g 480 Arm and Sonic Endbell.
Next time will be making a taller can on the lathe when
I get some high carbon steel material. This was written at an
earlier time, But building a Cohoza does sound a lot easier
to go racing, home made billet stuff can just be for fun
or drags maybe.

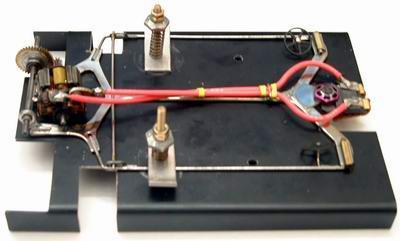

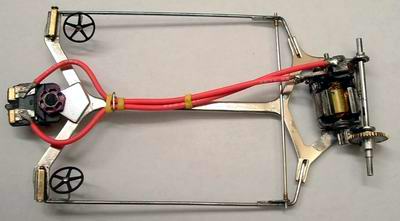

This chassis shown here is also a hand cut aluminum design
the motor board is a modified Koford, the cuts ahead of the
wheels were for large clips I used before the spring arms.
