of Optic Glass Instruments
Welcome
You are my
Automatic Groover
Model No.: NG-5A (Ordinary Type)
Model No.: NG-5
("TIANTI" brand with CE-Approval)
Specification:

1. Special cutter wheel cuts glass, CR-39 and polycarbonate lens.
2. Stainless steel parts.
3. Reliable and easy to use free curve groove, front curve groove and rear curve groove.
The following specifications and appearance are subject to change without notice.
Material Mineral Glass, Plastics, PC
Thickness 1.5mm to 11.0mm
Lens
Diameter 28mm to 70mm
0.6mm
Wide of groove
0 - 0.7mm
Depth of groove
Approx. 40 sec. (1 rev. of lens)
Grooving Time Required
170mm(W) x 210mm(D) x 160mm(H)
Size
2.9kg
Net Weight
AC 100 to 120V / 60Hz or
Power
AC 200 to 240V / 50Hz, 95W
Manual Grinder
Model No.: HE-5
Specification:
- Power: 100V-120V/60Hz AC or
220-240V/50Hz AC
- Weight: 8KG
- Dimension: 220(W) x 360(D) x 280(H)mm
Lens Driller
Model No.: LD-5
Specification:
- Diameter Of Drilling: 0.8mm-2.8mm
- Power Source: 100-120V/60Hz AC or
220-240V/50Hz AC
- Weight: 8KG
- Dimension: 220(W) x 360(D) x 280(H)mm
Polisher
Model No.: PL-5
Specification:
- Power Source: 100-120V/60Hz AC or
220-240V/50Hz AC
- Weight: 4.2KG
- Dimension: 180(W) x 185(D) x 175(H)mm
Automatic Lens Edger
(Model No.: LE-5)
The LE-5 Automatic Edger is a multi-functional fully automatic microprocessor controlled lens edge.  It is able to process both glass and plastic lenses for rough edging, free curved beveling, controlled curve beveling and flat finishing.  It is designed for highly efficient edging operation, easy to operate and gives precision control on lens size and shape.
Electro-plated
Dia.120 x W 18mm
Rough
Dimension of
Grind Wheel
Metal Bonded
Dia.120 x W18 x T2 mm
Bevel / Flat
Dia.120 x W18 x T2mm
Rotational Frequency 3,150 r.p.m
Latitude Processing From 28mm to 100mm
Body 565(W) x 490(D) x 365(H)mm
Dimension
Table 600(W) x 550(D) x750(H)mm
Weight (body only) 44.5kg
Power supply AC 220v/50Hz,550VA

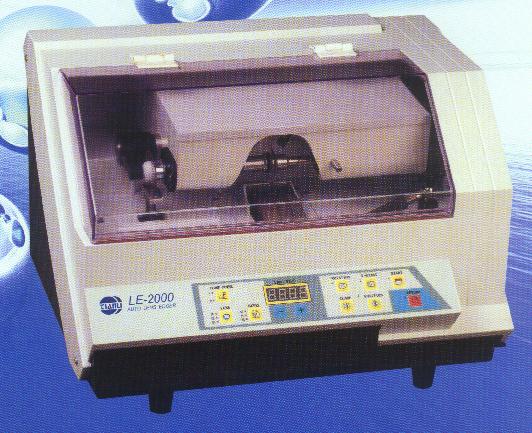

Automatic Lens Edger
Model No.: LE-2000
LE-2000 is a multi-functional fully automatic lens edger controlled by microcomputer, which is able to process glass, plastic and PC lenses for rough edging, free curved beveling, controlled curve beveling and flat finishing.  Its features are compact structure, stable performance, and original exterior, easier operation with lower noise and so on.  It has many advanced functions, such as automatic lens-clamping, adjustable clamping pressure, digital control and display for lens size adjustment, automatic protection for grinding wheel, selection of grinding wheel according to lens material, self-rectified adjustment and etc.
Processing capability Lens Material Glass, Plastic, PC
Lens Size Dia.24mm to Dia.100mm
Dimensions of
Grinding Wheel
Rough
Plastic, PC Dia.140mm x 18mm (W)
Glass Dia.140mm x 18mm (W)
Bevel / Flat Dia.143mm x 19mm (W)
Rotational Frequency 2800 r.p.m.
Dimensions Body 540mm(L) x 425mm(W) x 385mm(H)
Table 610mm(W) x 550mm(D) x 750mm(H)
Weight (Body Only) 48.5kg
Power Supply AC 220V/50HZ or 110V/60Hz, 800VA

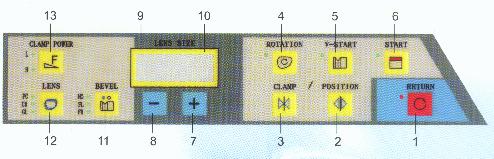

Main functions:
1.  Return switch
2.  Clamp-open / Lens to the right
3.  Clamp-close / Lens to the left
4.  One-way rotation of lens axis
5.  Bevel and flat finishing
6.  Start
7.  Increase of lens size
8.  Decrease of lens size
9.  "_" Indication for decrease of lens size
10. Digital indication for increase and decrease of lens size
11. Selection of lens edge (Free, Flat, Hold)
12. Selection of lens material (GL, PL & PC)
13. Selection of lens-clamping pressure (high, low)
