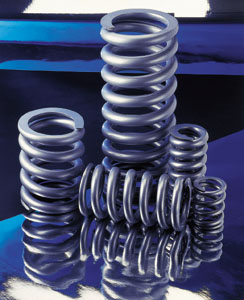

SPRINGS
|
Size Limits of Helical Springs (mm) |
min. |
max. |
|
Wire
Diameter |
10 |
55 |
|
Spring
width |
300 |
7000 |
|
Spring
hight |
40 |
1150 |
|
Spring
Outside Diameter |
40 |
410 |
|
Spring
Inside Diameter |
20 |
380 |

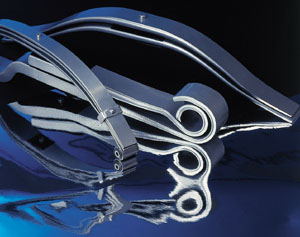

LEAF AND PARABOLIC SPRINGS
|
Size Limits of Parabolic Springs (mm) |
min. |
max. |
|
Spring
width (example) |
700 |
2200 |
|
Spring
hight |
|
400 |
|
Diameter
ok |
15 |
80 |
|
Width
of material |
40 |
130 |
|
tlouka
materilu |
5 |
50 |

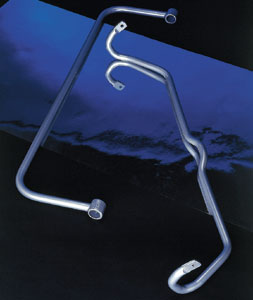

STABILIZERS
|
Size Limits of Stabilizers (mm) |
min. |
max. |
|
Cargo Vehicles Wire diameter |
15 |
55 |
|
Light Vehicles Wire diameter |
15 |
55 |

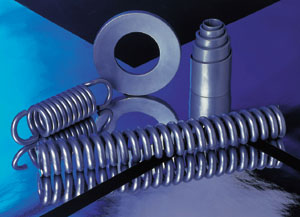

SPRINGS FOR MACHINE INDUSTRY
|
Size Limits for Springs for Machine Industry (mm) |
min. |
max. |
|
Wire
diameter |
10 |
55 |
|
Spring
width |
300 |
7000 |
|
Spring
hight |
40 |
1150 |
|
Outside
spring diameter |
40 |
410 |
|
Inside
spring diameter |
20 |
380 |
