Izh-2126 "Oda"

Izh-2126 "Oda" (formerly "Orbita") is 5 seats 5 doors classic (rwd) liftback 4x2. Suspension: front - independent (A-arms, coil springs), rear - dependent (solid axle, coil springs). Motor: UZAM-3317 (VAZ-2106) type - gasoline (carburetor), ohc, 4 cylinders in line, displacement 1,699 (1,568) cc (bore 3.35 (3.11)", stroke 2.95 (3.15)", compression ratio 8.5:1. It produces 85 (76) hp @ 5,400 rpm. Torque 95 ft.-lb. @ 3,000 rpm. 5 gears, max. speed 93 mph, acceleration 0 to 62 mph - 18 s. Brakes: front disks, rear - drums, with hydraulic control. Measures: LxWxH=13'4.2"x5'5"x4'9.1", wheel base 8'1.2". Track front/rear: 4'6.7"/4'6.3". Curb weight: 2,293 lbs. Full weight: 3,175 lbs. Tyres 175/70R13S. Fuel economy: 30.6 mpg (average). Coefficient of drag (Cx)=0.38. Price: $2,600 (2,700).

There are variant (s.1997) with more powerful UZAM-3320 engine of 1,945 cc (bore 3.46", stroke 3.15". Power 91 hp @ 4,500 rpm. Torque 115 ft.-lb. @ 3,000 rpm. Max. speed 103 mph. Acceleration 0 to 62 mph - 12.6 s. Fuel economy: 29.4 mpg (average), 30.6 mpg (at 56 mph), 23.1 mpg (at 75 mph), 20.3 mpg (city cycle).

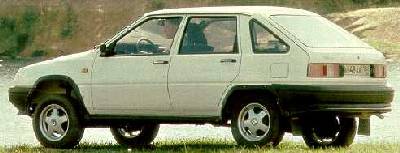

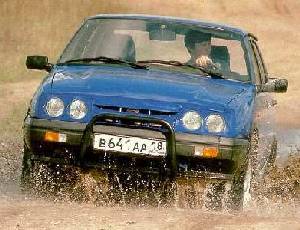

There is AWD variant: Izh-2116 4x4 (s.2000).

Rear suspension remained the same but front suspension is remodelled. Front axle: VAZ-2121, driveshafts: VAZ-2121, 2108. Motors: as in RWD model. Gearbox: 4 speeds. Transfer case: original, 1 speed, with transaxle locking differential. Tyres: 185/70R14 or 185/65R14. Price: around $3,600.

And there are some variants of Izh-2126: Izh-21261, Izh-21262, but yet -61s are very few and far between and -62 is prototype.

And there are some variants of Izh-2126: Izh-21261, Izh-21262, but yet they are prototypes.
