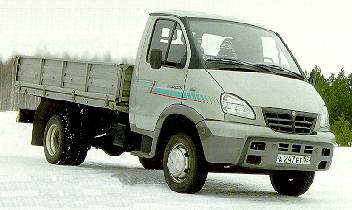

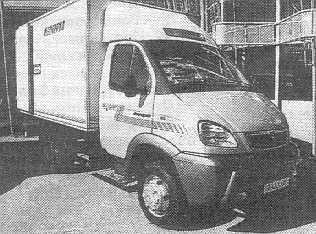

GAZ-3310 "Valday" is the newest city truck based on GAZ-3307 and GAZ-3302 "GAZelle". Semi-hood design cab (3 seats) is from GAZelle. Cargo platform is from GAZ-3307. Cargo height: 3'7.3". Framework: developed GAZ-3307. Front beam axle and rear solid axle are from serial truck, developed. Leaf springs are new but are assembled from standard leaves. Payload: 8,819 lbs. Full weight: 17,196 lbs. Engine: diesel, GAZ-562 type, (straight 6, ohv, power 150 hp @ 3,200 rpm, torque 310 ft.-lb. @ 1,800 rpm) or D-245 (straight 4, turbo-diesel, with intercooler, displacement 4,750 cc. Output: 122 hp @ 2,400 rpm. Torque 313 ft.-lb. @ 1,300 rpm). Clutch and 5-speed gearbox are from GAZ-3308 "Sadko". Top speed: 68 mph. Brakes: front - new, disks, rear - drums, developed, with hydraulic control (pneumatic control with ABS Bosch in aim). Power steering: hydraulic, ZF. Measures: LxWxH = 20'0.2"x7'3.4"x9'4.2" (truck with platform). Wheel base: 10'9.9". Tyres: 215R17.5.
 |
 |
