My Rudders
These are my home built rudders , mostly out of wood took me a weekend to build , i am looking for a way to upgrade
them so they will have Toe Brakes... i hope it wont be to long , If you want to ask anything , just feel free

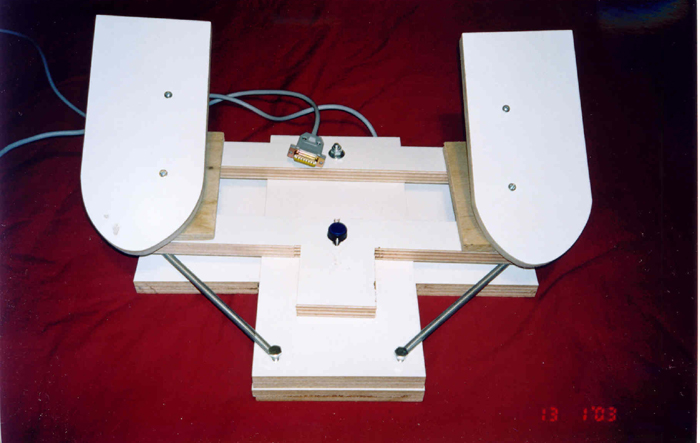

Front
Picture from the front , u can see i still dont have the grip on the foot pedal , but a soon as ill
get to the Skateboard Shop i get some :)
S

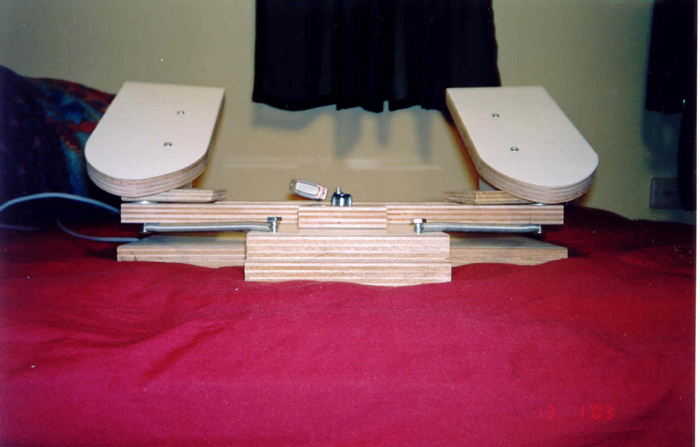

Front Low
From here you can see that its a simple design.. really not complicate

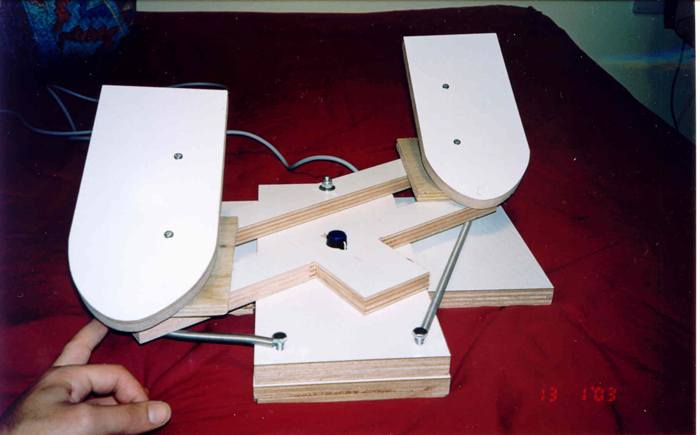

Sliding right foot
i still don't have gimbals , but the springs wont let the foot go far

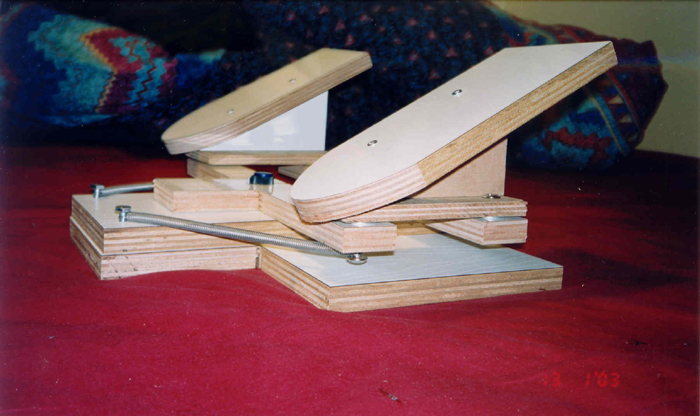

Sideways

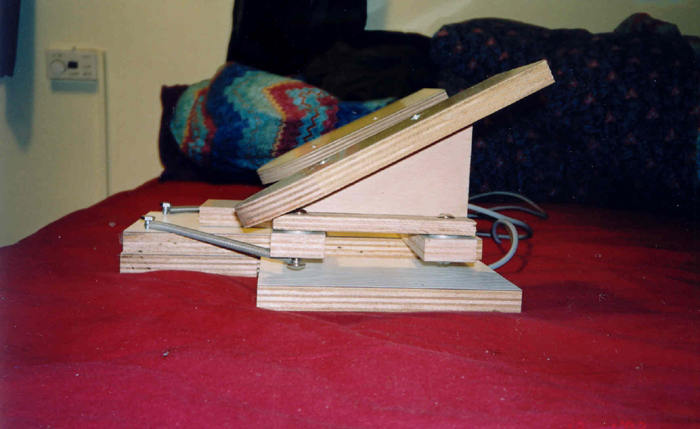

Side
ok... any ideas for how to make the Toe brakes?

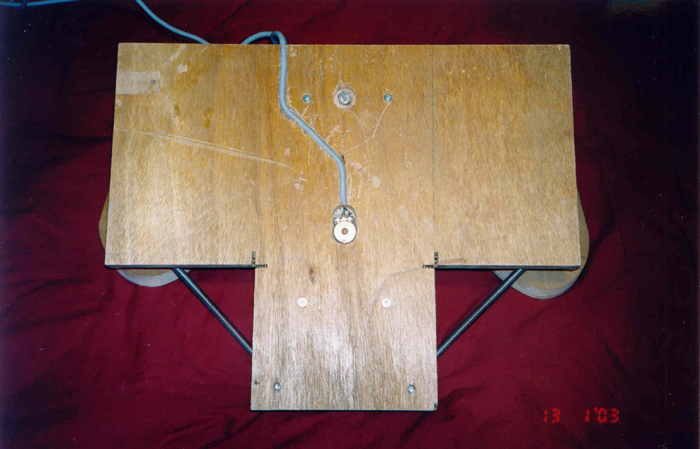

back
100kohm POTs , pin 9 and 11 are connected..
