| Folbot Sailing Rudder Mounted On A Feathercraft K-1 |

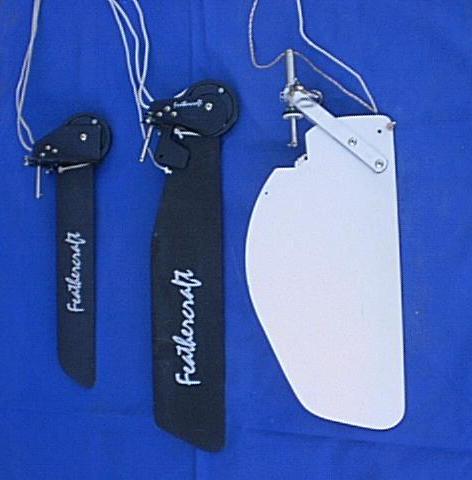

| The K-1 surf rudder (above left) is too small for sailing. Chesapeake Light Craft has been using the K-2 rudder (above center) with its single sailing kayaks. I found the K2 rudder still too small and modified a Folbot rudder (above right) to fit the K-1. |

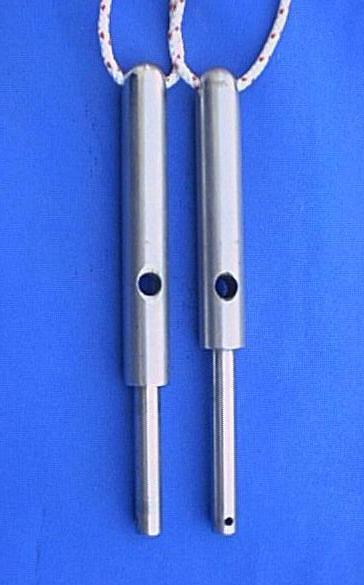

| The Folbot rudder pin (above left) is unmodified. The right pin above has been modified, the shaft is 1/4" longer fit the K-1. |
 |
 |

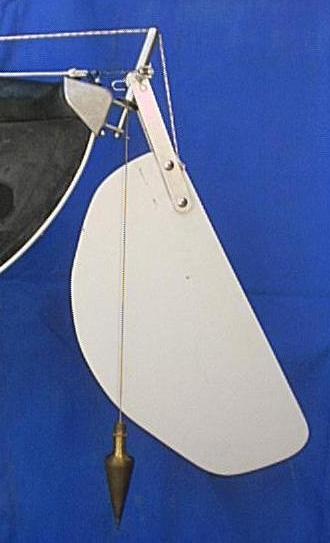

| Unmodified Folbot rudder mounted on a Folbot Aleut. |
 |

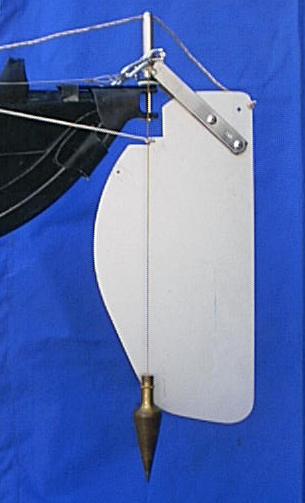

| Modified Folbot rudder mounted on a Feathercraft K-1. |
 |
| The rudder blade can be lifted up out of the water so that it extends straight back. On my K-1 it cannot and should not be flipped on the back of the deck. It would interfere with the sail sheet which is attached to the aft grab loop. For a good discussion on balanced rudders and the necessity to add a tensioning line to the rudder please see pp. 143-144 of the Complete Folding Kayaker by Ralph Diaz. |
