| Audio Transformers and Chokes | ||
| 300B SE
25Watt
GM70 SE 50 Watt EL84 SE 5 Watt----Coming Soon IT 300B High Current------Coming Soon
IT 5K:600---Coming Soon 10H 100ma 14H 80ma Mail inquires to
|
In the recent days, I am now starting to sell audio transformers and chokes. I have few type of audio trans but will be expending the product line soon. Current projects are now using chokes, power trans and audio trans develop in house. Performance of the projects may not be the same if other trans is used. At the moment most the trans is open core, however in the near future, bell covers will be fitted with the trans as an option and the trans will be painted in black. Also in the near future, I will be offering custom wound transformers to allow customization of audio trans and chokes. For prices of the transformers please send me a mail.

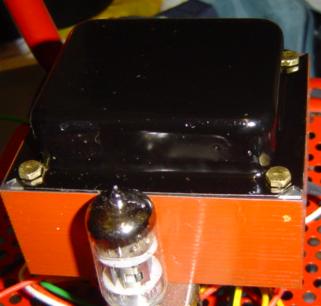

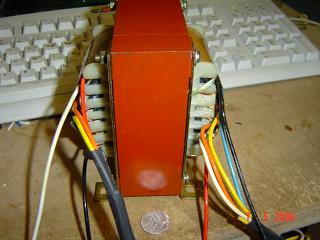

300B SE 25 Watt

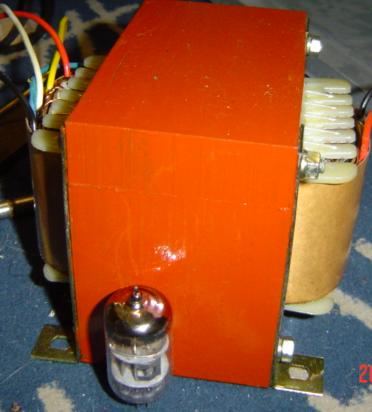

2.5K,3.9K : 8 Ohms Max DC current of 90ma Dimension: H 111mm, W 96mm, T 45mm Freq response is 24Hz to 20K (-1db) GM70 SE 50 Watt
9K : 8 Ohms Max DC current of 100ma Dimension: H 111mm, W 96mm, T 68mm Freq response is 15Hz to 20K (-1db) IT 2.5K to 1K 40ma IT 300B High Current
3.5K : 1.75K Ohms Max DC current of 80ma Dimension: H 80mm, W 96mm, T 45mm

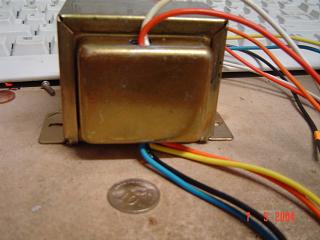

IT 2.5K to 1K

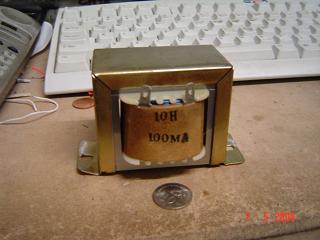

3.5K : 1.75K Ohms Max DC current of 40ma Dimension: H 80mm, W 96mm, T 45mm Freq response is 40Hz to 22K (-1db) 10H 100ma
14H 80ma
|
