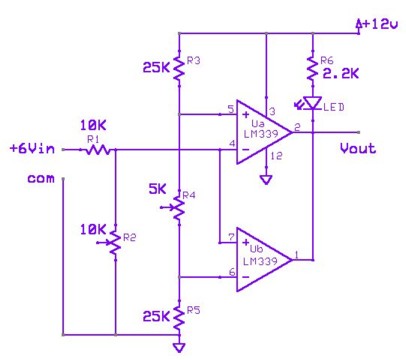

LM339 Window Comparator |
R4 is a variable potentiometer which controls window size |
R2 is a variable potentiometer which controls input voltage level |
--------------------------------------------------------------------------------------------------------- |
R3 and R5 can be replaced with potentiometers if variable control is required between upper and lower trip voltages. |
