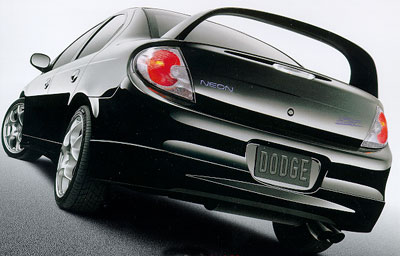

Neon SRT-4

Info from Car and Driver.

Want more info go here. http://www.allpar.com/neon/neon-srt-4.html

1990's Models

If you ever been is a store to get a new oil filter, windshield wipers,ect. and the book tells you that you have to know the engine code to get the right thing. It gives you two options. The Y is the Dohc and the C is the Sohc.

Fluid Limits:

Engine Oil......................... 4.5 quarts

Automatic Trans. Fluid ..... 8.9 quarts

Manula Trans. Fluid.......... 2.3 quarts

Antifreeze(1995)................ 7.4 quarts

Antifreeze(1996 and later.. 6.5 quarts

Fuel.................................... 12.5 gal.

Engine Specifications:
Type ........................... In-Line OHV, DOHC & SOHC
Bore ........................... 87.5mm (3.445")
Stroke ........................ 83.0mm (3.268")
Compression Ratio:
SOHC ........................ 9.8:1
DOHC ........................ 9.6:1
Spark Plug Type ............... Champion RCY9C, or equal plug
Recommended Gap........... .033 to .038 inch
Firing Order....................... 1,3,4,2
Oil Filter............................. MOPAR 4105409, Bosch D366
Recomm. Fuel(SOHC)........ 87+ Octane
Recomm. Fuel(DOHC)........ 89+ Octane
Do Not Use Gasoline that Contains Methanol(Your Warrranty won't Cover the Damages if you do)

Things to Check Time to Time

Check Engine Fluids
Replace Spark Plugs
Check Battery and Terminals
Check and Adjust Belts
Check Hoses
Check Air Filter
Check Tire Pressure and Wear

Fuses

1....15amp....Cigar Lighter
2....15amp....Tail,License,& Sidemarker Lights, Instrument Lights
3....15amp....Front Door Switchs
4....10amp....Fog Lights
5....10amp....Airbag Diagnostic Module
6....10amp....Turn Signal Switch
7....25amp....A/C & Heater Blower
8....10amp....Rear Window Defroster, A/C Clutch Switch, Fan Relay, Back-up Lights
9....10amp....same as 5
10..15amp....Transaxle Lockup, Anti-lock Controller, Power Train Module, EGR Solenoid
11....5amp....Instrument Cluster Gauges, Warning Lights, and Chime
12....4amp....Rear Heater and Fog Switch Lights
15...20amp...Wipers, Window Washer
16...10amp...Radio
17...10amp...Left Headlight
18...10amp...Right Headlight

Tire Rotation Diagram

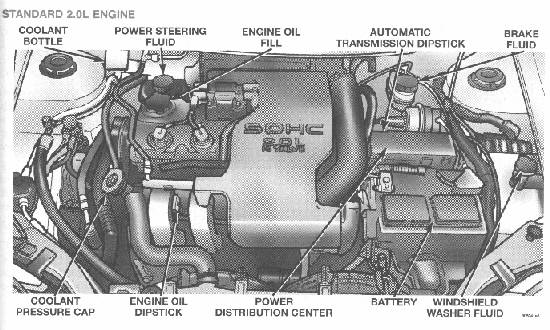

Under the Hood of a SOHC(from the neon manual)

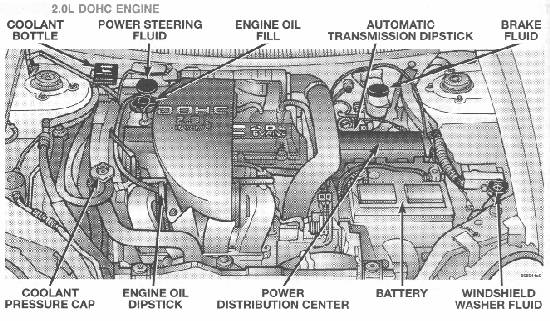

Under the Hood of a DOHC(from the neon manual)
