This group of pictures shows some detail on the benchwork.
We wanted modules that were lightweight and easy to transport,
in addition to being easy to set up.

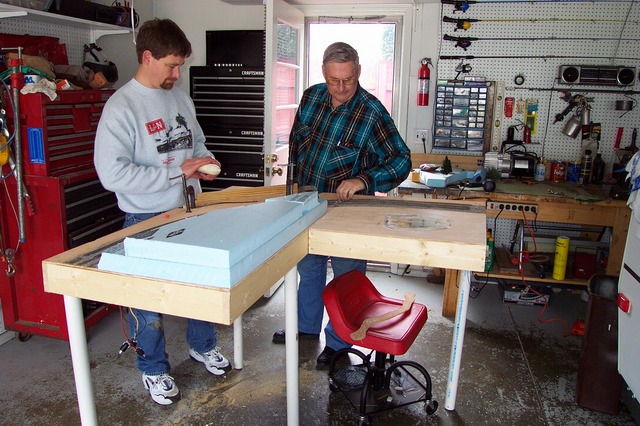

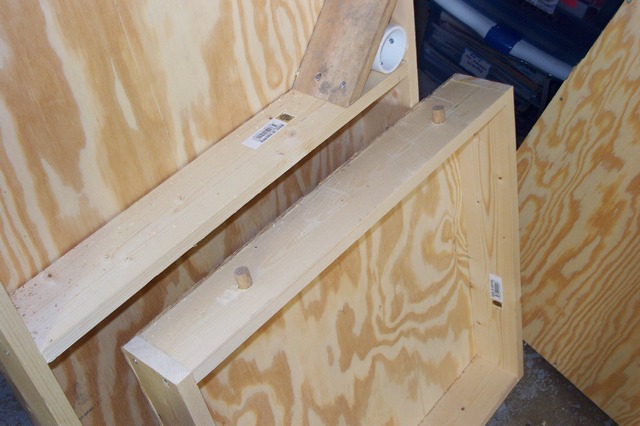

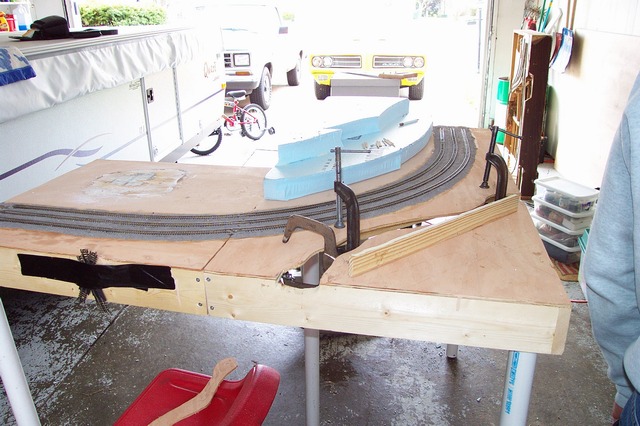

Instead of the recommended angular layout for the corner module,
we designed a removable 2'x2' section which connects to a 2'x4'
to make the corner.  In retrospect, we needed to take more care
when creating the joint and make darn sure it is square before
screwing down the top!!  It makes for a slightly wavy joint, but
nothing the trains can't handle.

For legs, we opted for PVC pipe construction.  This is another great
idea in theory, but something of a minor disaster in practice.  The
PVC legs are cheap & light as hoped, but a little flimsy, even when
connected together.  But I blame that on our choice for a receiver.

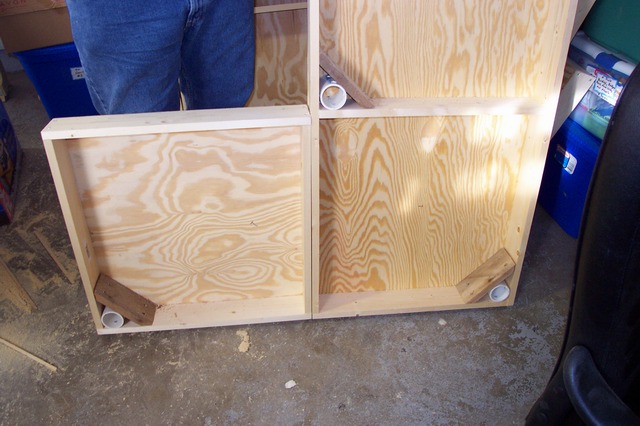

We used 1-1/2" pipe and 2" pipe receivers installed in the framework.

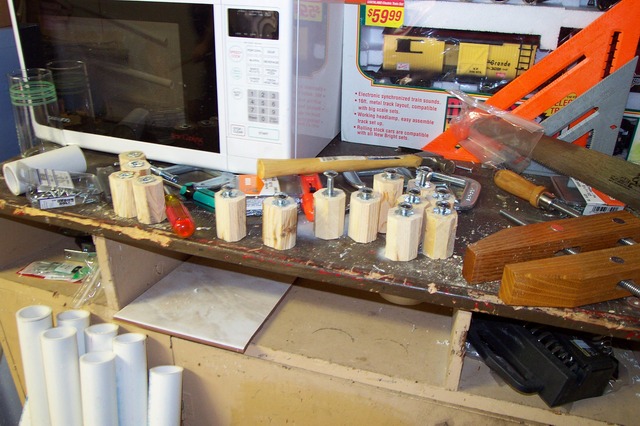

A better choice would be a drilled woodblock for a snug fit.

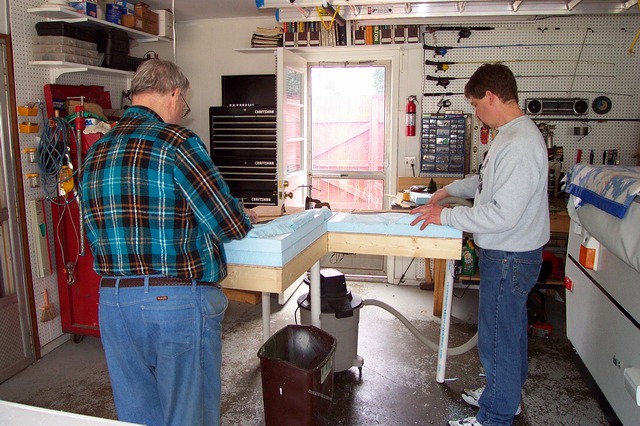

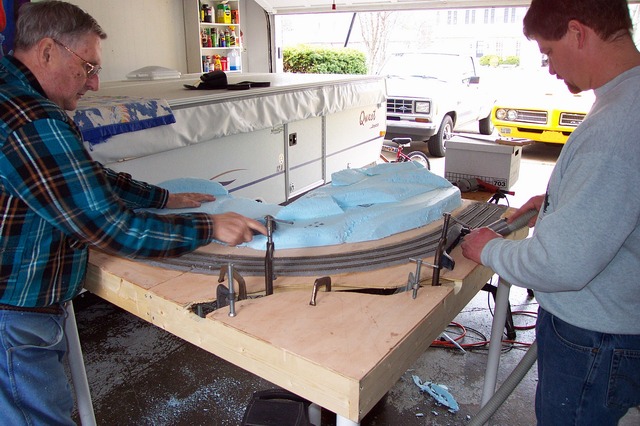

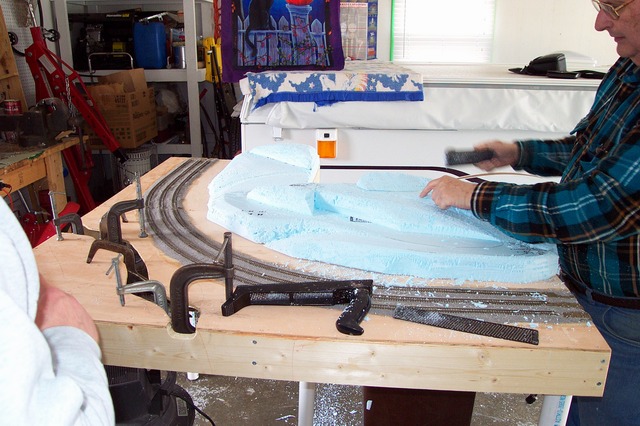

Here we can see two of our group detailing one of the corners.
The cut-out section will become a small stream before they are
all done. By GATS, it looked great!
