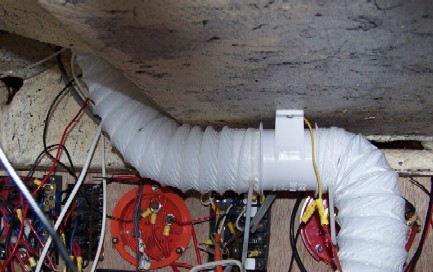

I mounted the vent blower on the underside of the port side cockpit seat. The vent pipe goes to the bottom of the locker and under the shelf being built for the tank. |
|
|
|
|
|
 |
|
|
|
|
|

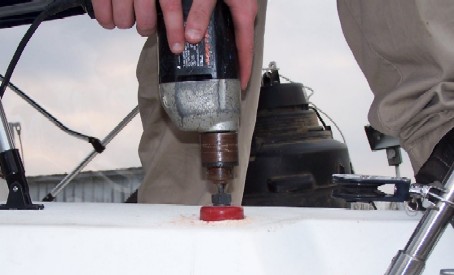

In the aft area there is not a lot of deck space for a tank filler so we located the main fill on the top of the cockpit combing. In order to prevent fumes from filling the cockpit the tank vent fitting was located on the deck between the outside of the combing and the jib car track. |
|
|
|
|
|
 |
|
|
|
|
|

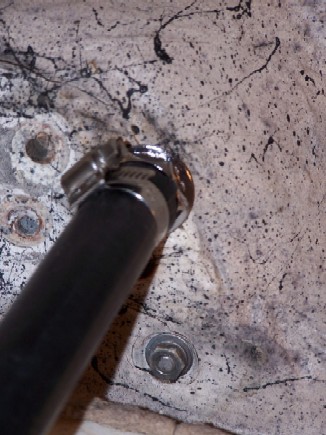

I usually like to double clamp everything but in this case the tail on the tank vent fitting was too short for two. To the left are the holes for the stern pulpit mount. We removed the bolts to give ourselves a little more room. The bolt protruding lower center is one for the jib car rail.. |
|
|
|
|
|
 |
|
|
|
|
