Random access
memory (RAM) is the best known form of computer memory. But the
way it works and what the different terms mean can be very
confusing. In this edition of , you'll learn what RAM is, what kind you should buy and how to
install it.
RAM is considered "random access" because you can access any
memory cell directly if you know the row and column that intersect
at that cell. The opposite of RAM is serial access memory
(SAM). SAM stores data as a series of memory cells that can only be
accessed sequentially (like a cassette tape). If the data is not in
the current location, each memory cell is checked until the needed
data is found. SAM works very well for memory buffers, where
the data is normally stored in the order it will be used. A good
example is the texture buffer memory on a video card.
How RAM Works Similar to a microprocessor,
a memory chip is an integrated circuit (IC) made of millions
of transistors and capacitors. In the most common form of computer
memory, dynamic random access memory (DRAM), a transistor and
a capacitor are paired to create a memory cell, which
represents a single bit of data. The
capacitor holds the bit of information -- a 0 or a 1 (see How Bits and Bytes
Work for information on bits). The transistor acts as a switch
that lets the control circuitry on the memory chip read the
capacitor or change its state.
A capacitor is like a small bucket that is able to store
electrons. To store a 1 in the memory cell, the bucket is filled
with electrons. To store a 0, it is emptied. The problem with the
capacitor's bucket is that it has a leak. In a matter of a few
milliseconds a full bucket becomes empty. Therefore, for dynamic
memory to work, either the CPU or the memory controller has
to come along and recharge all of the capacitors holding a 1 before
they discharge. To do this, the memory controller reads the memory
and then writes it right back. This refresh operation happens
automatically thousands of times per second.
This refresh operation is where dynamic RAM gets its name.
Dynamic RAM has to be dynamically refreshed all of the time or it
forgets what it is holding. The downside of all of this refreshing
is that it takes time and slows down the memory. Memory cells are etched onto a silicon wafer in an array of
columns (bitlines) and rows (wordlines). The
intersection of a bitline and wordline constitutes the
address of the memory cell.
DRAM works by sending a charge through the appropriate column
(CAS) to activate the transistor at each bit in the column. When
writing, the row lines contain the state the capacitor should take
on. When reading, the sense-amplifier determines the level of charge
in the capacitor. If it is more than 50% it reads it as a 1,
otherwise as a zero. The counter tracks the refresh sequence based
on which rows have been accessed in what order. The length of time
necessary to do all this is so short that it is expressed in
nanoseconds (billionths of a second). A memory chip rating of
70ns means that it takes 70 nanoseconds to completely read and
recharge each cell.
Memory cells alone would be worthless without some way to get
information in and out of them. So the memory cells have a whole
support infrastructure of other specialized circuits. These circuits
perform functions such as:
- identifying each row (row address select or RAS) and
column (column address select or CAS)
- keeping track of the refresh sequence (counter)
- reading and restoring the signal from a cell (sense amplifier)
- telling a cell whether it should take a charge or not (write
enable).
Other functions of the memory controller
include a series of tasks that include identifying the type, speed
and amount of memory and checking for errors.
Static RAM uses a completely different technology. In static RAM,
a form of flip-flop holds each bit of memory. A flip-flop for a memory cell
takes 4 or 6 transistors along with some wiring, but never has to be
refreshed. This makes static RAM significantly faster than dynamic
RAM. However, because it has more parts, a static memory cell takes
a lot more space on a chip than a dynamic memory cell. Therefore you
get less memory per chip, and that makes static RAM a lot more
expensive.
So static RAM is fast and expensive, and dynamic RAM is less
expensive and slower. Therefore static RAM is used to create the
CPU's speed-sensitive cache, while
dynamic RAM forms the larger system RAM space.
Memory Modules Memory chips in
desktop computers originally used a pin configuration called dual
inline package (DIP). This pin configuration could be soldered
into holes on the computer's motherboard or plugged into a socket
that was soldered on the motherboard. This method worked fine when
computers typically operated on a couple of megabytes or less of
RAM, but as the need for memory grew, the number of chips needing
space on the motherboard increased. The solution was to place the
memory chips, along with all of the support components, on a
separate printed circuit board (PCB) that could then be
plugged into a special connector (memory bank) on the
motherboard. Most of these chips use a small outline J-lead
(SOJ) pin configuration but quite a few manufacturers use the
thin small outline package (TSOP) configuration as well. The
key difference between these newer pin types and the original DIP
configuration is that SOJ and TSOP chips are surface-mounted
to the PCB. In other words, the pins are soldered directly to the
surface of the board, not inserted in holes or sockets.
Memory chips are normally only available as part of a card called
a module. You've probably seen memory listed as 8x32 or 4x16.
These numbers represent the number of the chips multiplied by the
capacity of each individual chip, which is measured in megabit
(Mb), or one million bits. Take the result and divide it by
eight to get the number of megabytes on that module. For example,
4x32 means that the module has four 32-megabit chips. Multiply 4 by
32 and you get 128 megabits. Since we know a byte has eight bits, we
need to divide our result of 128 by 8. Our result is 16 megabytes!
The type of board and connector used for RAM in desktop computers
has evolved over the past few years. The first types were
proprietary, meaning that different computer manufacturers developed
memory boards that would only work with their specific systems. Then
came SIMM, which stands for single in-line memory
module. This memory board used a 30-pin connector and was about
3.5 inches by .75 inches (about 9 centimeters by 2 centimeters) in
size. In most computers, you had to install SIMMs in pairs of equal
capacity and speed. This is because the width of the bus is more
than a single SIMM. For example, you would install two 8 megabyte
(MB) SIMMs to get 16 megabytes total RAM. Each SIMM could send 8
bits of data at one time while the system bus could handle 16 bits
at a time. Later SIMM boards, slightly larger at 4.25 inches by 1
inch (about 11 centimeters by 2.5 centimeters), used a 72-pin
connector for increased bandwidth and allowed for up to 256MB of
RAM.

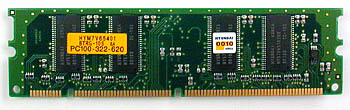

As processors grew in speed and bandwidth capability, the
industry adopted a new standard in dual in-line memory module
(DIMM). With a whopping 168-pin connector and a size of 5.4 inches
by 1 inch (about 14 centimeters by 2.5 centimeters), DIMMs range in
capacity from 8MB to 128MB per module and can be installed singly
instead of in pairs. Most PC memory modules operate at 3.3 volts
while Mac systems typically use 5 volts. A new standard, Rambus
in-line memory module (RIMM), is comparable in size and pin
configuration to DIMM but uses a special memory bus to greatly
increase speed.
Many brands of notebook computers use proprietary memory modules,
but several manufacturers use RAM based on the small outline dual
in-line memory module (SODIMM) configuration. SODIMM cards are
small, about 2 inches by 1 inch (5 centimeters by 2.5 centimeters),
and have 144 pins. Capacity ranges from 16MB to 256MB per module. An
interesting fact about the Apple iMac desktop computer is that it
uses SODIMMs instead of the traditional DIMMs.
Error Checking Most memory
available today is highly reliable. Most systems simply have the
memory controller check for errors at start-up and rely on that.
Memory chips with built-in error-checking typically use a method
known as parity to check for errors. Parity chips have an
extra bit for every 8 bits of data. The way parity works is simple.
Let's look at even parity first. When the 8 bits in a byte
receive data, the chip adds up the total number of "1"s. If the
total number of "1"s is odd, the parity bit is set to "1." If the
total is even, the parity bit is set to "0." When the data is read
back out of the bits, the total is added up again and compared to
the parity bit. If the total is odd and the parity bit is "1" then
the data is assumed to be valid and sent to the CPU. But if the
total is odd and the parity bit is "0," the chip knows that there is
an error somewhere in the 8 bits and dumps the data. Odd
parity works the same way, but the parity bit is set to "1" when
the total number of "1"s in the byte are even.
The problem with parity is that it discovers errors but does
nothing to correct them. If a byte of data does not match its parity
bit, then the data are discarded and the system tries again.
Computers in critical positions need a higher level of fault
tolerance. High-end servers often have a form of error-checking
known as error correction code (ECC). Like parity, ECC uses
additional bits to monitor the data in each byte. The difference is
that ECC uses several bits for error checking -- how many depends on
the width of the bus -- instead of one. ECC memory uses a special
algorithm not only to detect single bit errors, but actually correct
them as well. ECC memory will also detect instances when more than
one bit of data in a byte fails. Such failures are very rare, and
they are not correctable, even with ECC.
The majority of computers sold today use nonparity memory
chips. These chips do not provide any type of built-in error
checking but instead rely on the memory controller for error
detection.
Common RAM Memory Types
- SRAM - Static random access memory uses multiple
transistors, typically four to six, for each memory cell but
doesn't have a capacitor in each cell. It is used primarily for cache.
- DRAM - Dynamic random access memory has memory cells
with a paired transistor and capacitor requiring constant
refreshing.
- FPM DRAM - Fast page mode dynamic random access memory
was the original form of DRAM. It waits through the entire process
of locating a bit of data by column and row and then reading the
bit before it starts on the next bit. Maximum transfer rate to L2
cache is approximately 176 megabytes per second.
- EDO DRAM - Extended data-out dynamic random access
memory does not wait for all of the processing of the first
bit before continuing to the next one. As soon as the address of
the first bit is located, EDO DRAM begins looking for the next
bit. It is about five percent faster than FPM. Maximum transfer
rate to L2 cache is approximately 264 megabytes per second.
- SDRAM - Synchronous dynamic random access memory takes
advantage of the burst mode concept to greatly improve
performance. It does this by staying on the row containing the
requested bit and moving rapidly through the columns, reading each
bit as it goes. The idea is that most of the time the data needed
by the CPU will be in sequence. SDRAM is about five percent faster
than EDO RAM and is the most common form in desktops today.
Maximum transfer rate to L2 cache is approximately 528 megabytes
per second.
- RDRAM - Rambus dynamic random access memory is a
radical departure from the previous DRAM architecture. Designed by
Rambus,
RDRAM uses a Rambus in-line memory module (RIMM), which is
similar in size and pin configuration to a standard DIMM. What
makes RDRAM so different is its use of a special high-speed data
bus called the Rambus channel. RDRAM memory chips work in parallel
to achieve a data rate of 800 MHz.
- Credit Card Memory - Proprietary self-contained DRAM memory
module that plugs into a special slot for use in notebook
computers.
- PCMCIA Memory Card - Another self-contained DRAM module for
notebooks. Cards of this type are not proprietary and should work
with any notebook computer whose system bus matches the memory
card's configuration.
- FlashRAM - A generic term for the small amount of memory used
by devices like TVs, VCRs and car radios to maintain custom
information. Even when these items are turned off, they draw a
tiny amount of power to refresh the contents of their memory. This
is why every time the power flickers, the VCR blinks 12:00. It's
also why you lose all presets on your radio when your car battery
dies! Your computer has FlashRAM to remember things like hard disk
settings
- VRAM - VideoRAM, also known as multiport dynamic
random access memory (MPDRAM), is a type of RAM used
specifically for video adapters
or 3-D accelerators. The "multiport" part comes from the fact that
VRAM normally has both random access memory and serial access
memory. VRAM is located on the graphics card and comes in a
variety of formats, many of which are proprietary. The amount of
VRAM is a determining factor in the resolution and color depth
of the display. VRAM is also used to hold graphics-specific
information such as 3-D geometry
data and texture maps.
How Much Do You Need? It's said
that you can never have enough money and the same seems to hold true
for RAM, especially if you do a lot of graphics-intensive work or
gaming. Next to the CPU itself, RAM is the most important factor in
computer performance. If you don't have enough, adding RAM can make
more of a difference than getting a new CPU!
If your system responds slowly or accesses the hard drive
constantly, then you need to add more RAM. If you are running
Windows 95/98, you need a bare minimum of 32MB, and your computer
will work much better with 64MB. Windows NT/2000 needs at least
64MB, and it will take everything you can throw at it, so you'll
probably want 128MB or more.
Linux
works happily on a system with only 4MB RAM. If you plan to add
X-Windows or do much serious work, however, you'll probably want
64MB. Apple Mac OS based systems will work with 16MB, but you should
probably have a minimum of 32MB.
The amount of RAM listed for each system above is estimated for
normal usage -- accessing the Internet, word processing, standard
home/office applications and light entertainment. If you do computer
aided design (CAD), 3-D modeling/animation or heavy data processing
or if you are a serious gamer, then you will most likely need more
RAM. You may also need more RAM if your computer acts as a server of
some sort (Web pages, database, application, FTP or network).
Another question is how much VRAM you want on your video card.
Almost all cards that you can buy today have at least 8MB of RAM.
This is normally enough to operate in a typical office environment.
You should probably invest in a 32MB graphics card if you want to do
any of the following:
- Play realistic games
- Capture and edit video
- Create 3-D graphics
- Work in a high resolution, full color environment
- Design full color illustrations
When shopping for
video cards, remember that your monitor and computer must be capable
of supporting the card you choose.
How to Install RAM Most of the
time, installing RAM is a very simple and straightforward procedure.
The key is to do your research. Here's what you need to know:
- How much RAM you have
- How much RAM you wish to add
- Form factor
- RAM type
- Tools needed
- Warranty
- Where it goes
In the previous section, we discussed
how much RAM is needed in most situations. RAM is usually sold in
multiples of16 megabytes: 16, 32, 64, 128 and 256. This means that
if you currently have a system with 64MB RAM and you want at least
100MB RAM total, then you will probably need to add another 64MB
module.
Once you know how much RAM you want, check to see what form
factor (card type) you need to buy. You can find this in the
manual that came with your computer, or you can contact the
manufacturer. An important thing to realize is that your options
will depend on the design of your computer. Most computers sold
today for normal home/office use have DIMM slots. High-end systems
are moving to RIMM technology, which will eventually take its place
in standard desktop computers as well. Since DIMM and RIMM slots
look a lot alike, be very careful to make sure you know which type
your computer uses. Putting the wrong type of card in a slot can
cause damage to your system and ruin the card.
You will also need to know what type of RAM is required. Some
computers require very specific types of RAM to operate. For
example, your computer may only work with 60ns-70ns parity EDO RAM.
Most computers are not quite that restrictive, but they do have
limitations. For optimal performance, the RAM you add to your
computer must also match the existing RAM in speed, parity and type.
The most common type available today is SDRAM.
Before you open your computer, check to make sure you won't be
voiding the warranty. Some manufacturers seal the case and request
that the customer have an authorized technician install RAM. If
you're set to open the case, turn off and unplug the computer.
Ground yourself by using an anti-static pad or wrist strap to
discharge any static electricity. Depending on your computer, you
may need a screwdriver or nut-driver to open the case. Many systems
sold today come in toolless cases that use thumbscrews or a
simple latch.
|
|

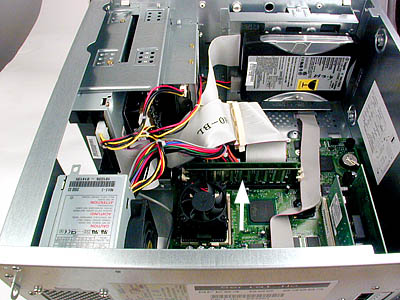

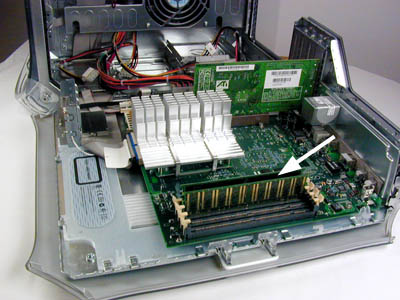

To install more RAM, look
for memory modules on your computer's motherboard. At the left
is a Macintosh G4 and on the right is a
PC. |
The actual installation of the memory module does not normally
require any tools. RAM is installed in a series of slots on the
motherboard known as the memory bank. The memory module is
notched at one end so you won't be able to insert it in the wrong
direction. For SIMMs and some DIMMs, you install the module by
placing it in the slot at approximately a 45 degree angle. Then push
it forward until it is perpendicular to the motherboard and the
small metal clips at each end snap into place. If the clips do not
catch properly, check to make sure the notch is at the right end and
the card is firmly seated. Many DIMMs do not have metal clips; they
rely on friction to hold them in place. Again, just make sure the
module is firmly seated in the slot.
Once the module is installed, close the case, plug the computer
back in and power it up. When the computer starts the POST, it
should automatically recognize the memory. That's all there is to
it!
The other parts of this series on computer memory will give you a
better understanding of different types and will help you make
better decisions about your computer memory. |
