Some circuits for the keen Scimitar electrical problem fixer.

The colour .bmp pictures are rather large but appear better on some computers.

jpg files are smaller and download faster.

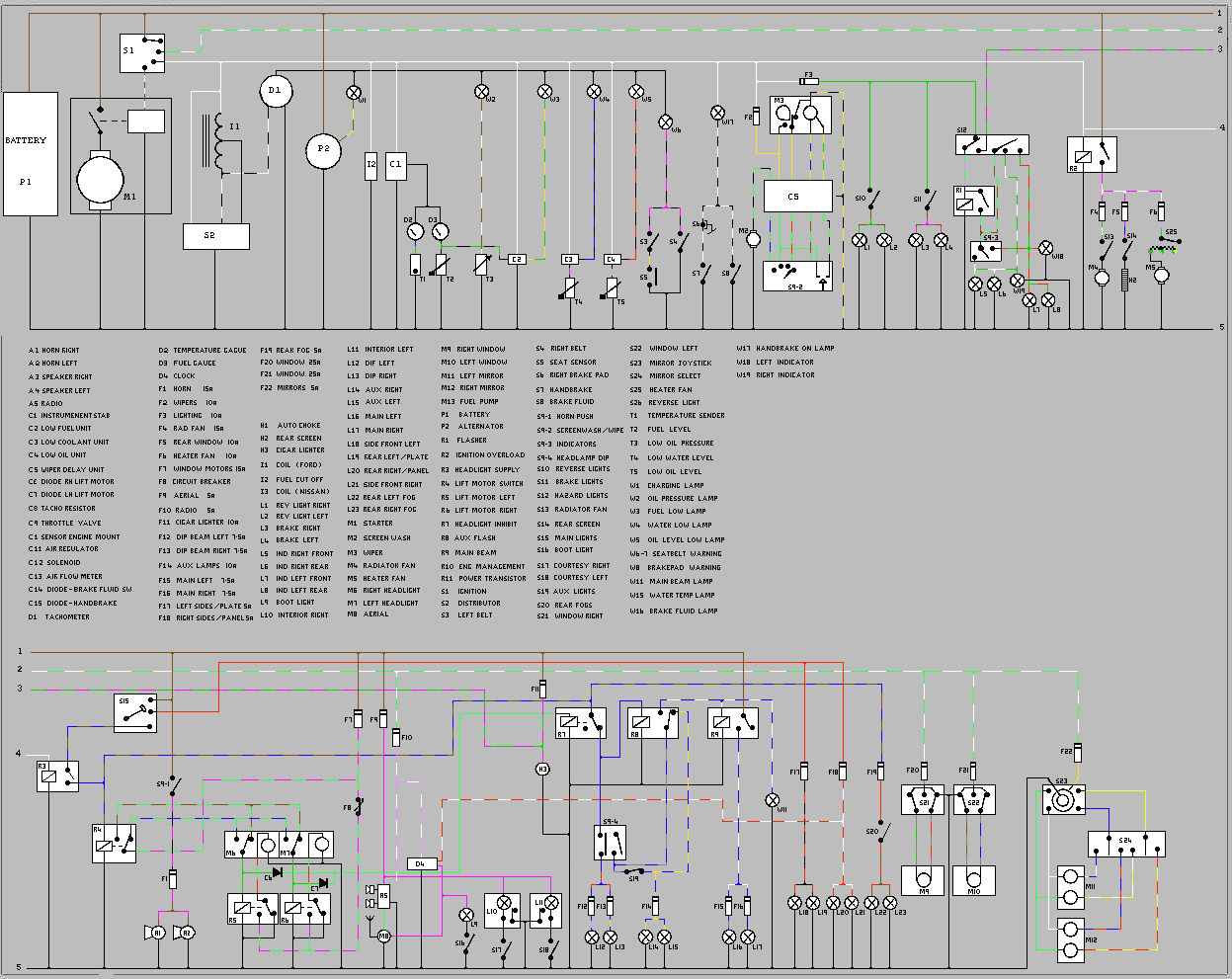

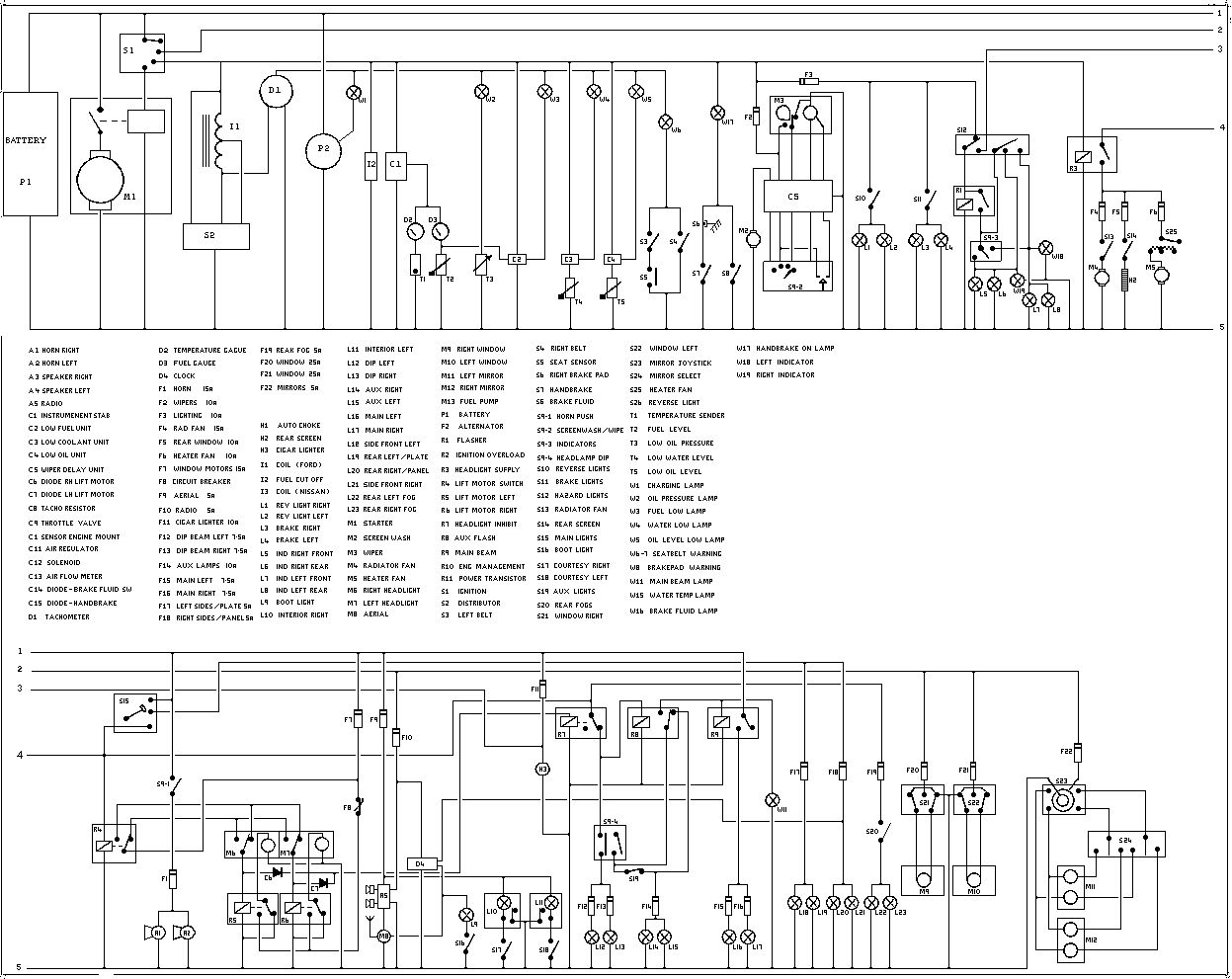

Ford engined SS1 Circuits
Colour .bmp or jpg - Black and White or jpg

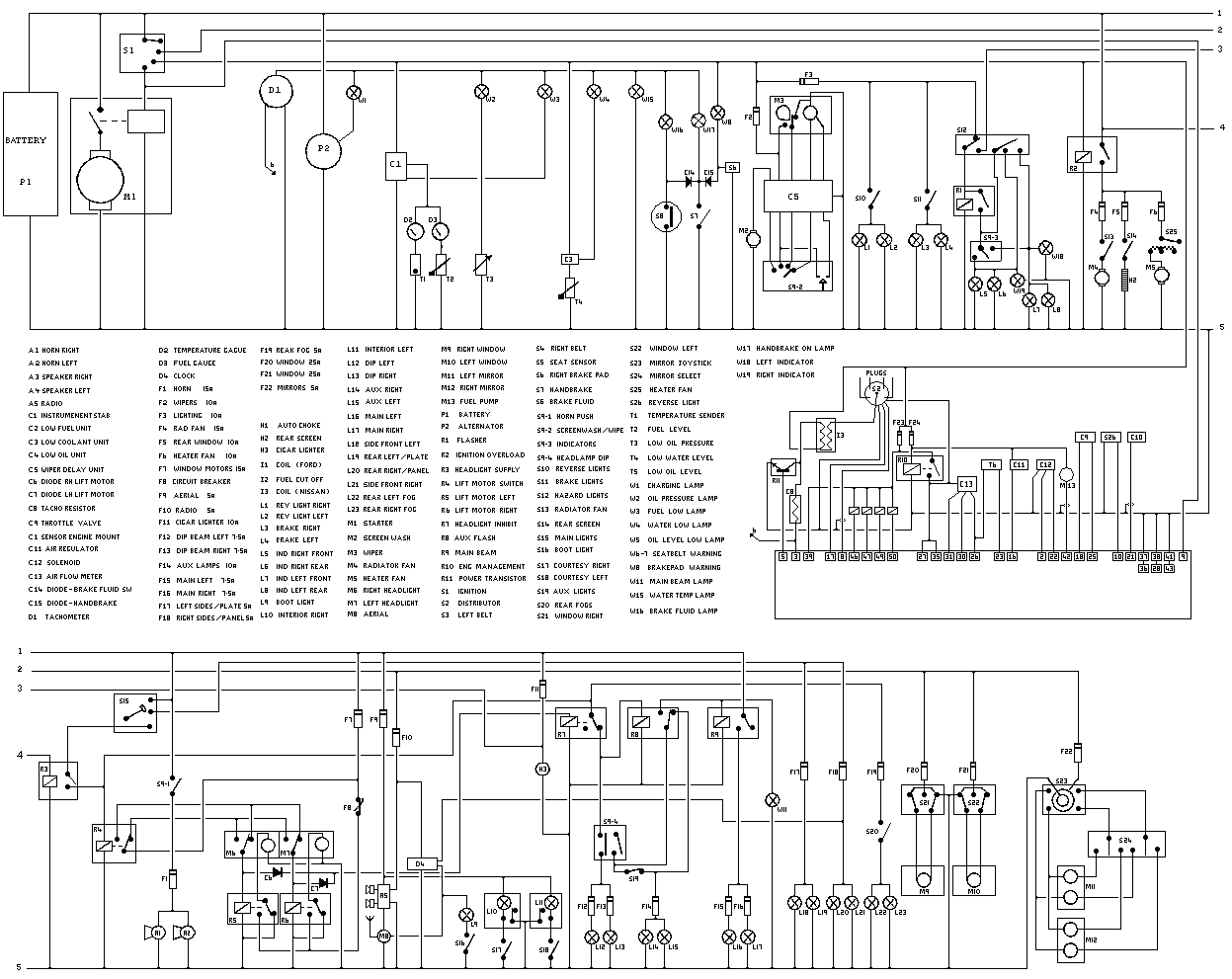

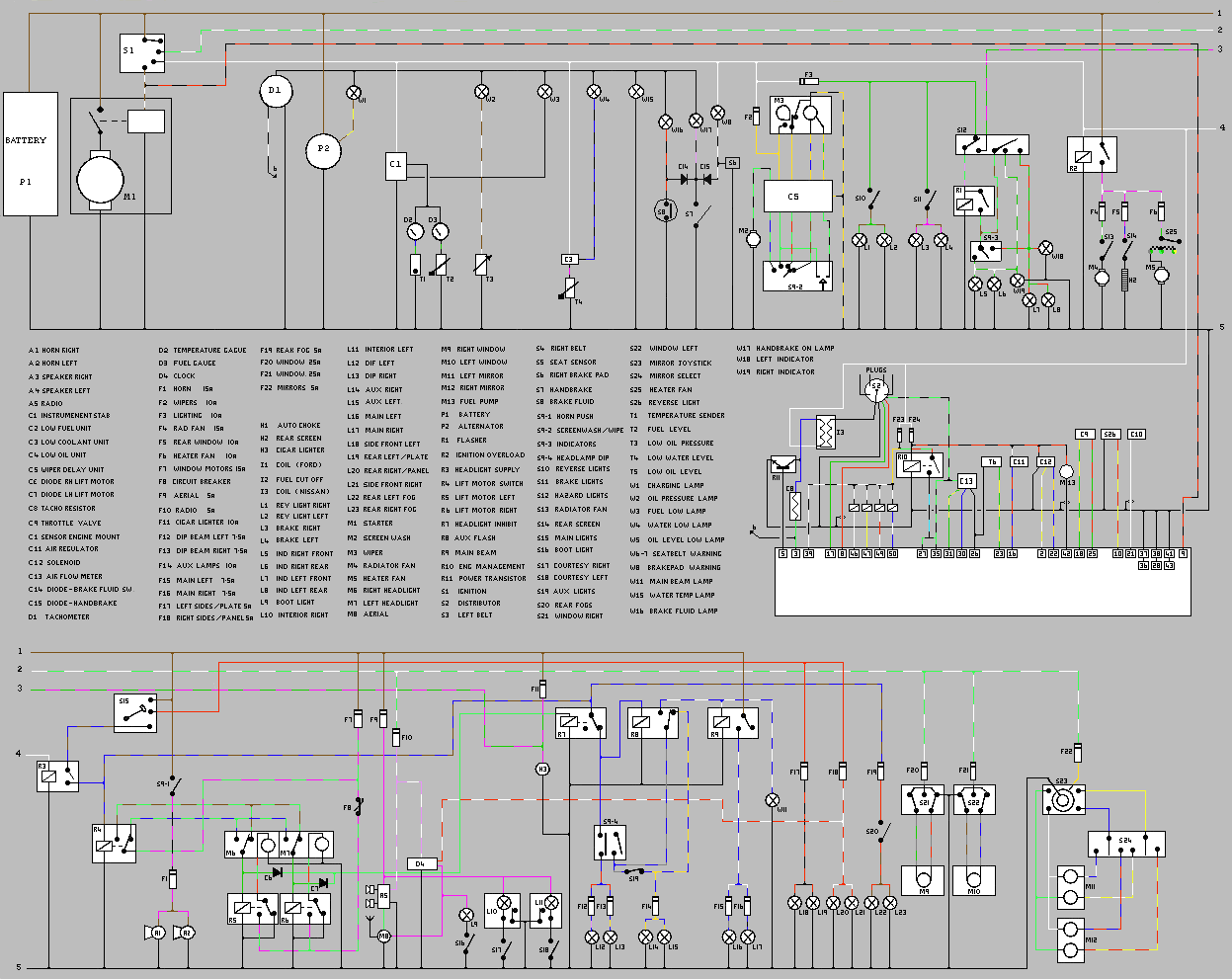

Nissan engined SS1 Circuits
Colour .bmp or jpg - Black and White or jpg

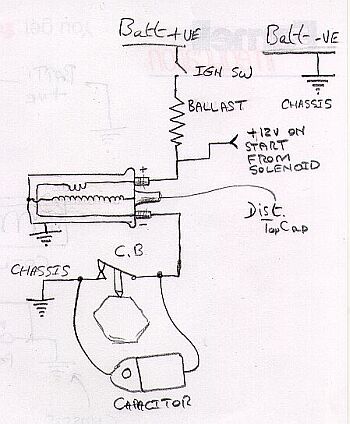

A crazy pencil drawing of a Scimitar ignition system

I like that CAD stuff - not

An indicator sounder
