THE
N1RIK REPEATERS
&
The Sandhills Repeater Network

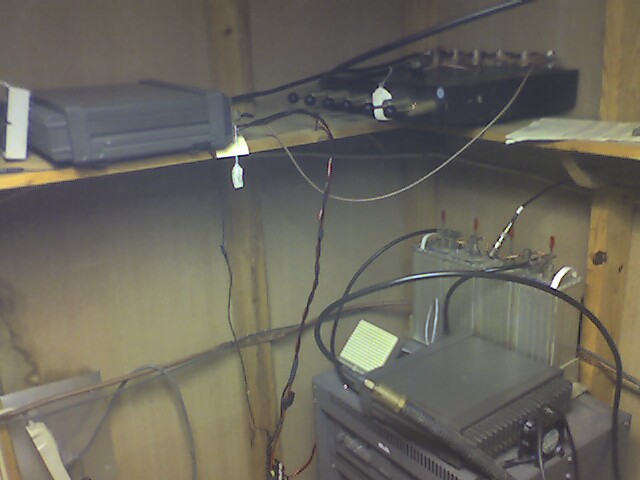

145.370 repeater is on the top
shelf. Below is the 442.250 repeater
The Sandhills Repeater Network
The Sandhills Repeater Network is currently made up of
442.250 in McCain, and 444.200 in Johnsonville.
We will be adding a wide-coverage 6 meter repeater in Johnsonville to be
part of the network shortly, and in the coming future, possible linking in
145.37 and/or adding another UHF Repeater down in the Rockingham or Laurinburg
areas. So far between these two UHF
repeaters, mobile coverage is from the fringe of the triangle (Apex) to south
of Dillon, South Carolina.
145.370 & 442.250 are both located at the highest point
in Hoke County which is right next to the McCain prison. Also located at the same watertank location is
KG4HDV’s 442.100 repeater, and Hoke County’s Public Works 155.040 repeater.
145.370 MHz (-) /offset 600 Khz – Southern
Pines, North Carolina (McCain)
PL Tone access - 179.9 hz
Power Supply – Motorola MSF5000
Supply
Antenna: Decibel DB-224 dipole array
– 6 db gain @ 105 feet (temporarily on the southeast side of tank)
Cable: 150 of Andrews 1/2” Heliax
Jumpers: LMR-400 & RG-142
Repeater: GE Mastr Executive II
Repeater w/UHS preamp - Tuned down to 35 watts
Receive Sensitivity: 0.16 uV for 12
db SINAD
Controller: Micro Computer Concepts
RC-100 w/VID-1 Voice ID Board
Duplexer: 6 Cavity Celwave 5042-1
Duplexer (25-watts out of duplexer)
Ground Elevation: 551 feet ASL
Antenna Elevation: 656 feet ASL
Coverage:
Moore, Cumberland, Hoke, Harnett, Robeson, Scotland, Richmond, Lee Counties
& beyond
442.250 MHz (+) / Offset 5 MHz – McCain, North
Carolina
PL Access – 107.2 Hz
Power Supply – Motorola MSF5000 Supply
Antenna: Commercial 16 bay dipole array @ 132 feet (mounted on top of the water tank)
Repeater: GE Mastr Exec II Converted by Henry Hamblin, WB4IVB
Power Output: 30-watts
Receive Sensitivity: Aprox. 0.25 uV for 12 db SINAD
Controller: ICS Basic Controller
Duplexer: Sinclair Q3220 Pass/Reject 4 cavity
Cable: 170 feet of 7/8” Andrews Heliax
Ground Elevation: 551 feet ASL
Antenna Elevation: 683 feet ASL
Height Above Average Terrain: 352 feet
ERP: 190 Watts
Coverage: Moore, Cumberland, Hoke, Harnett, Robeson, Scottland,
Richmond, Lee Counties & beyond
ANTENNAS
From left to right is KG4HDV’s 442.1, VHF public works 155.040, and then 145.370.
(442.250’s antenna is not pictured, but is on the top, middle of the tank)
The KG4HDV
442.100 Repeater
PL
– 100.0 HZ – PLUS 5 MHz Offset

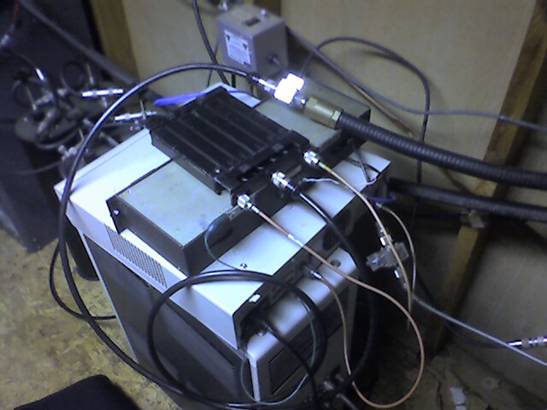

442.100 is on top. Public Works 155.040 is on the bottom.

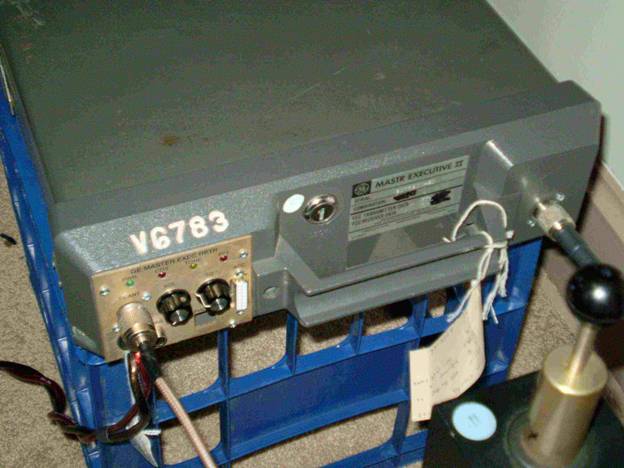

This is the 145.370 repeater at the old QTH
This is where 145.370 & 442.250 live
444.200 MHz (+) / Offset 5 MHz – Johnsonville, NC
PL Access – 179.9 Hz (when needed)
Power Supply – DuraComm (10 or 12 amp?)
Antenna: Hustler G6-440 – 6 db gain @ 48 feet ( mounted on a tree supported mast )
Repeater: Motorola GR300 running 30-watts
Controller: Computer Automation Technologies
Duplexer: Motorola T1504 Pass/Reject Duplexer (over 90 db of isolation)
Preamp: Hamtronics LNK-450 – 18 db gain – 0.8 db noise figure
Cable: 72 feet of 3/8” Andrews Heliax
Ground Elevation: 486 feet ASL (on ridge)
Antenna Elevation: 534 feet ASL
Height Above Average Terrain: 207 feet
ERP: 70 Watts
Link Radio: Motorola Radius GM300 @ 25-watts on ¼ wave ground plane (link to 442.250)
Coverage: Moore, Cumberland, Hoke, Harnett, Robeson, Richmond, Lee,
Wake, Chatham Counties & beyond
Here’s a pic of my GR300 from when I purchased it on ebay

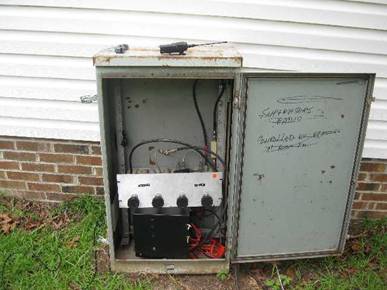

This is a pic of the repeater before I added a second cabinet for the link radio

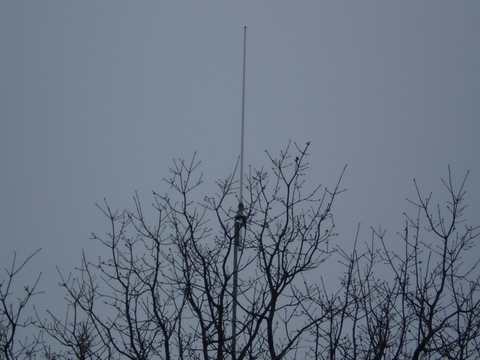

Hustler G6-440 Antenna mounted 45 feet AGL in a tree
Close-up of the Hustler G6-440 Antenna (before it was raised 3 more feet)

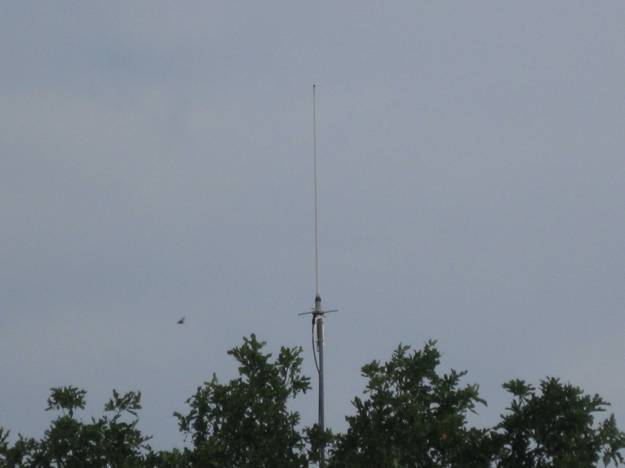

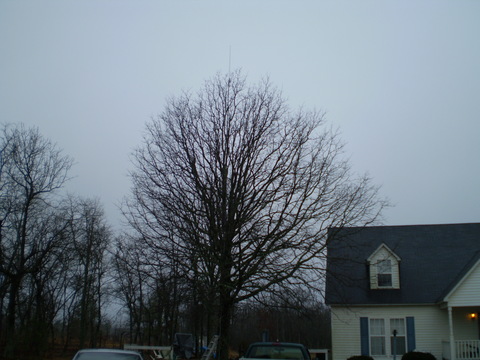

Here’s a pic after I raised the antenna from 45 to 48 feet (just above the leaves)

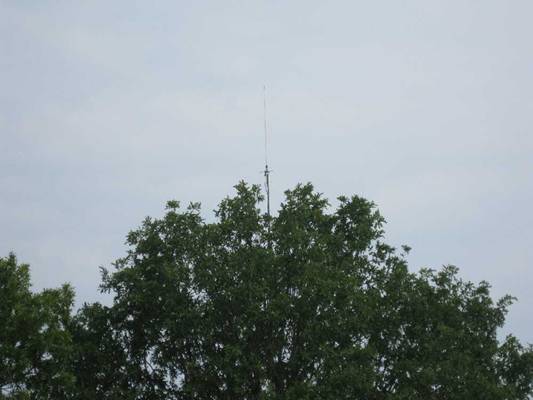

This is a little further out
This is where your hearing 444.200 from
Contact: [email protected]
Bill Curtis – N1RIK
