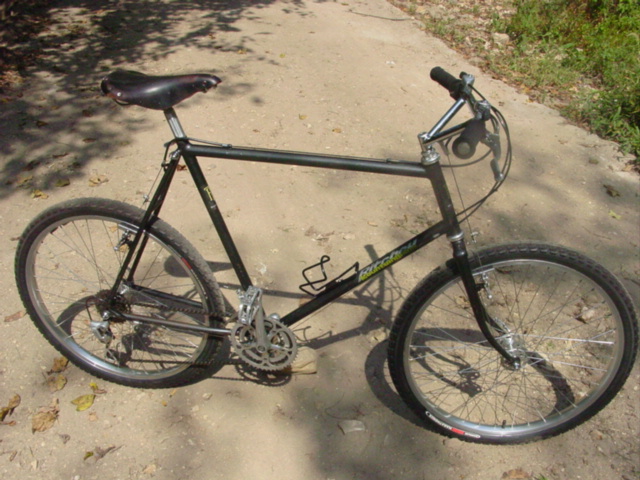

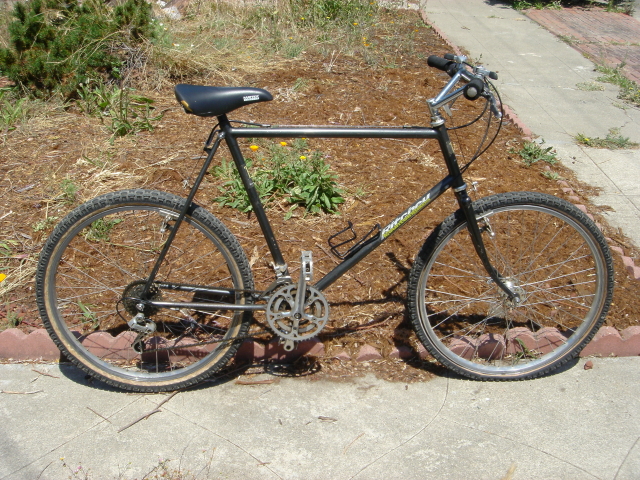

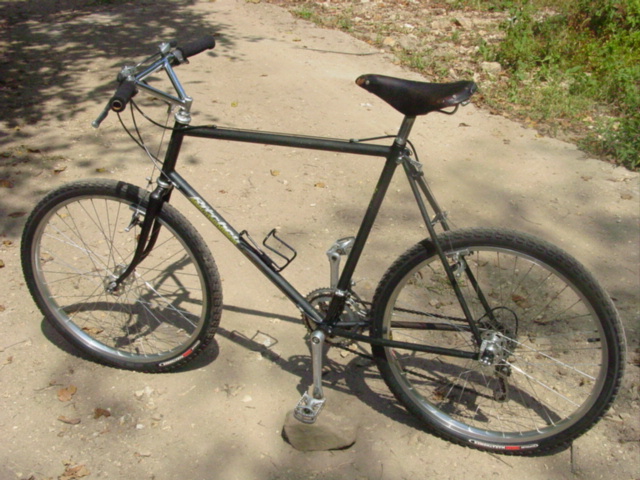

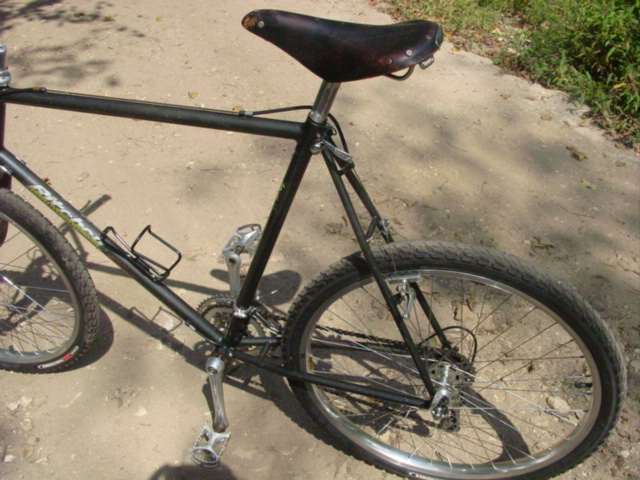

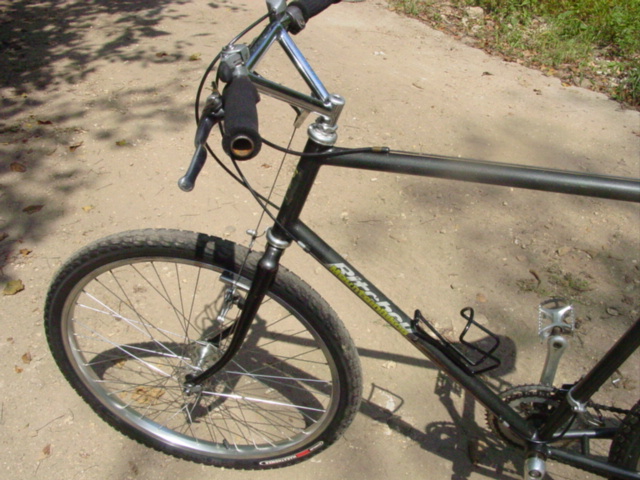

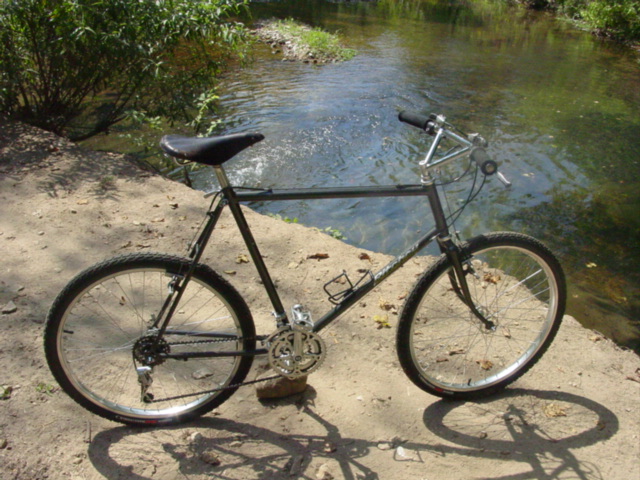

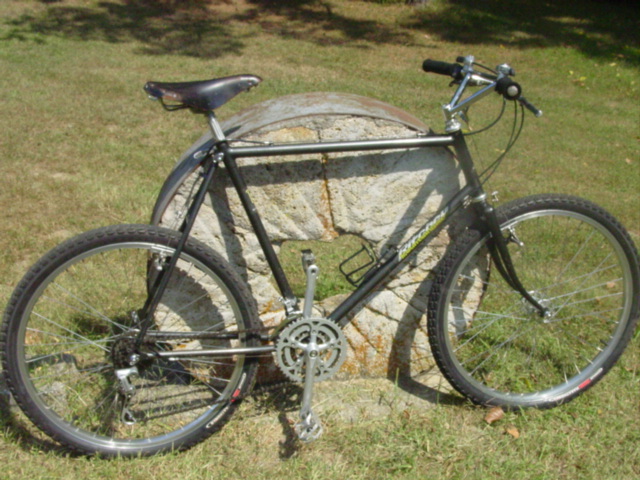

1984 Ritchey MountainBikes
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
- YEAR: 1984

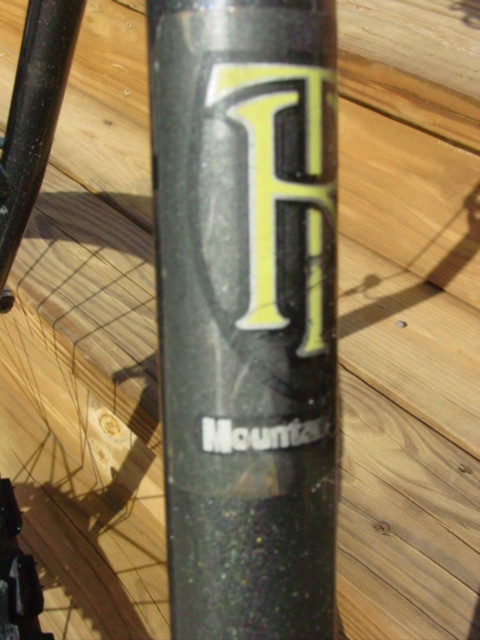

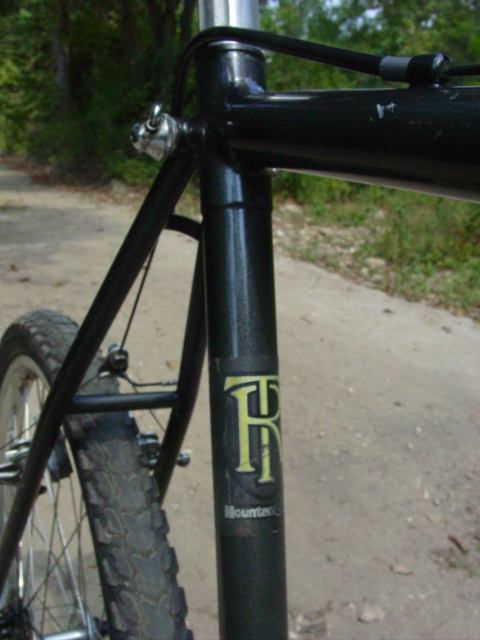

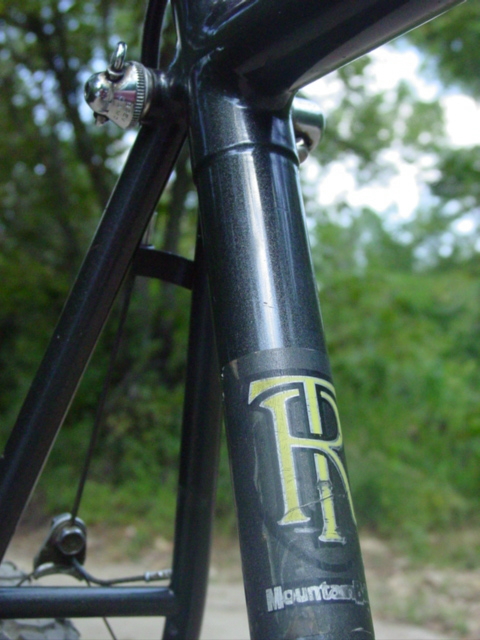

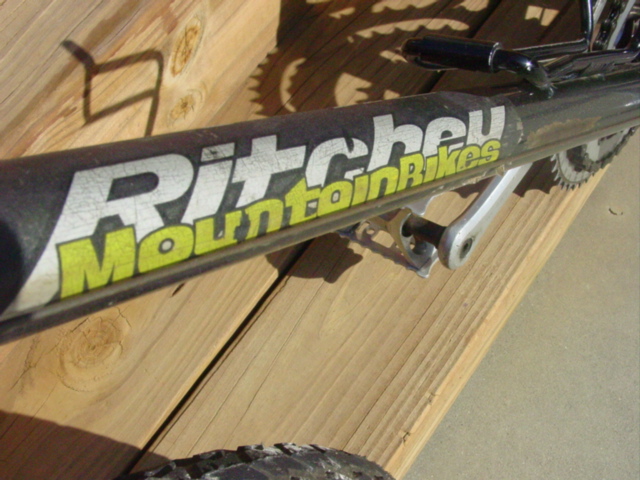

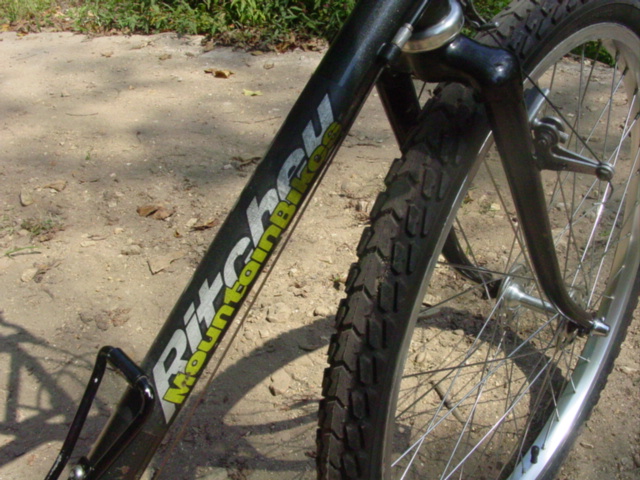

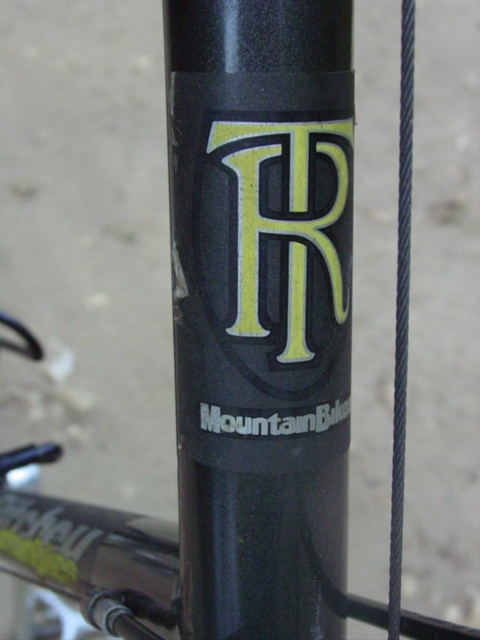

- BRAND: Ritchey MountainBikes
- MODEL: Mt. Tam?
- BUILDER: Tom Ritchey

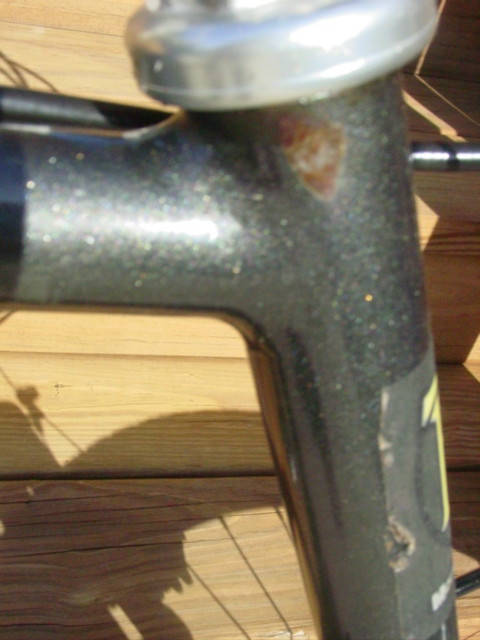

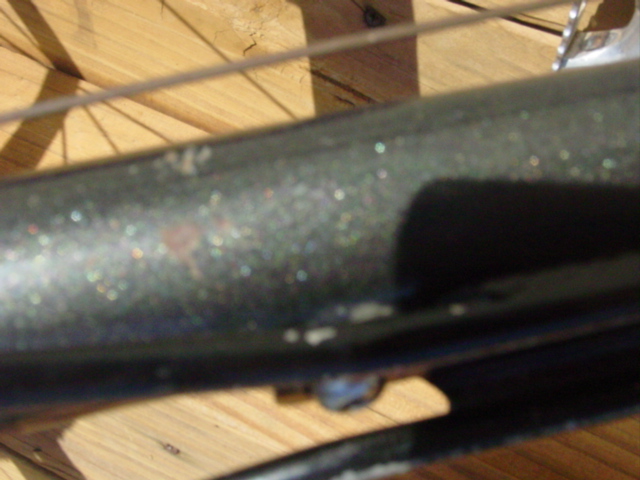

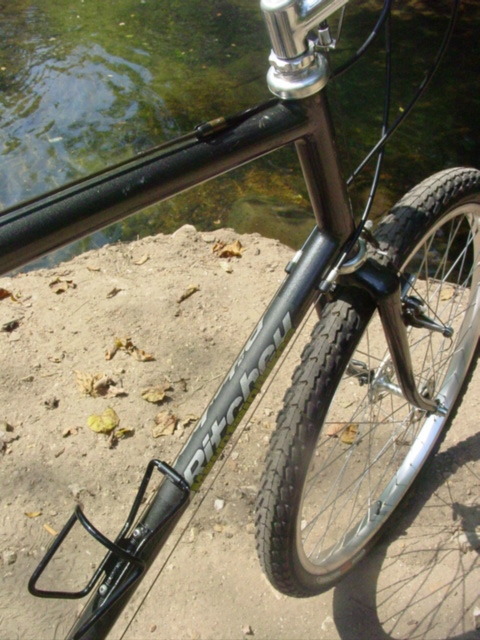

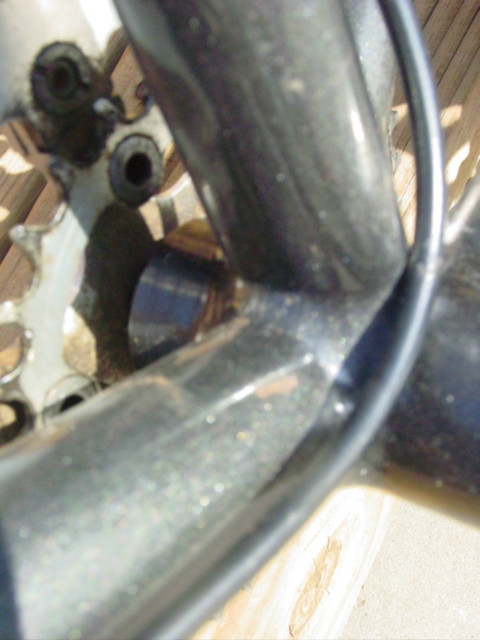

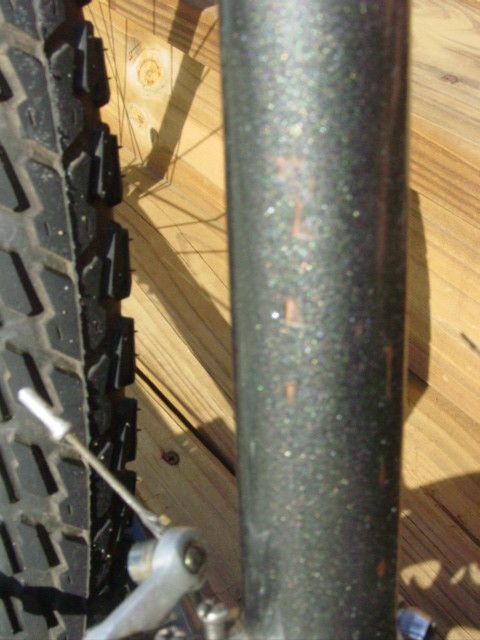

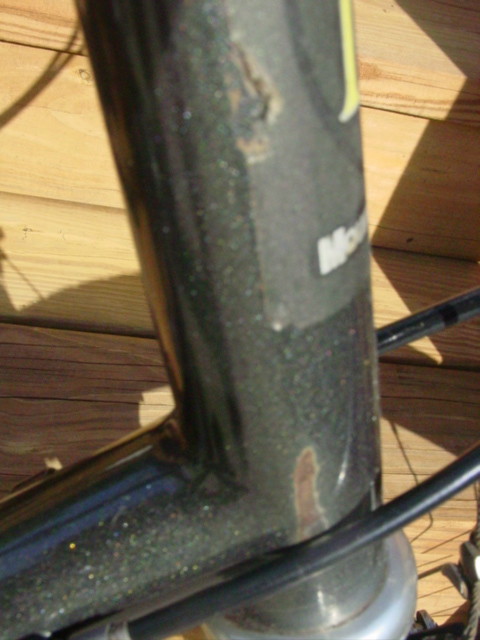

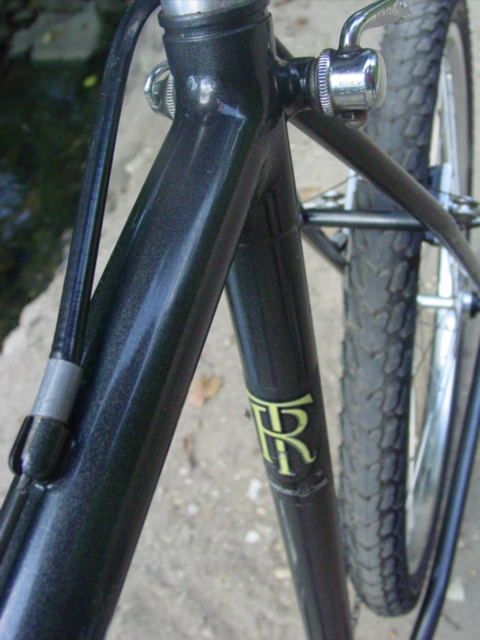

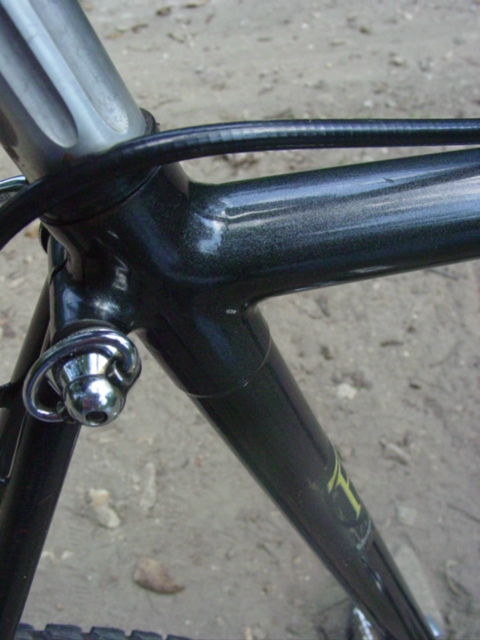

- FRAME: Fillet brazed cromo steel

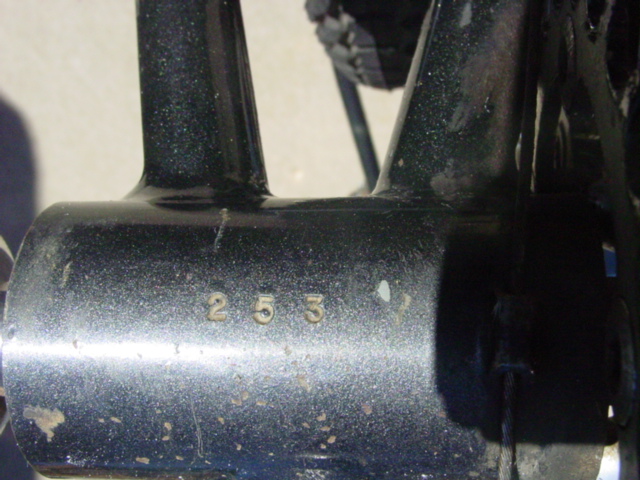

- SERIAL NUMBER: 253
- SIZE: 22" (c-c)

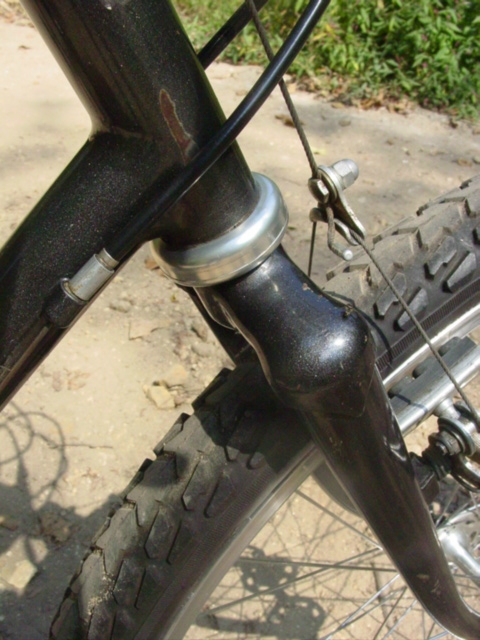

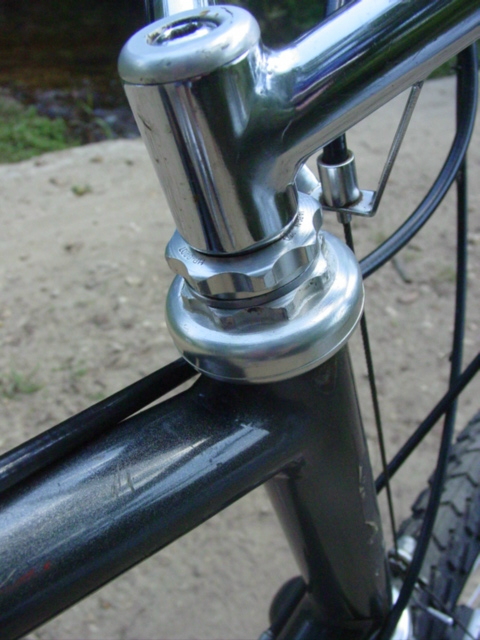

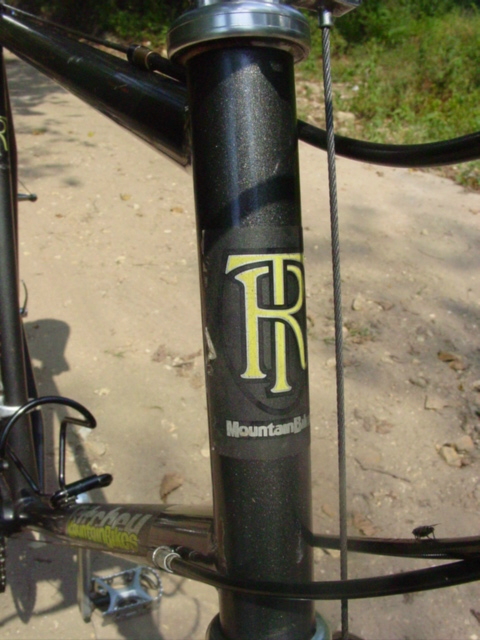

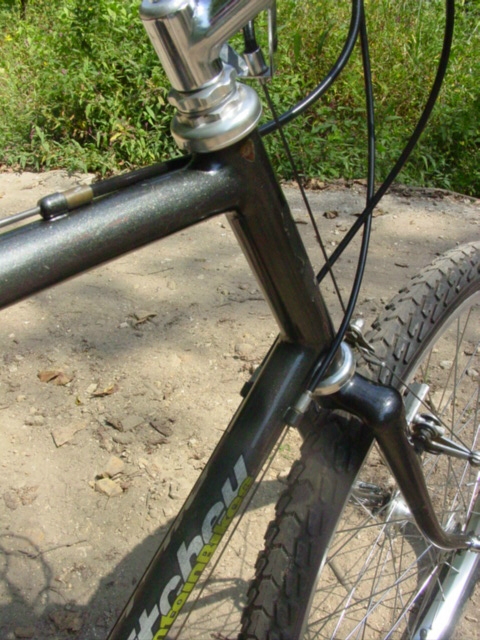

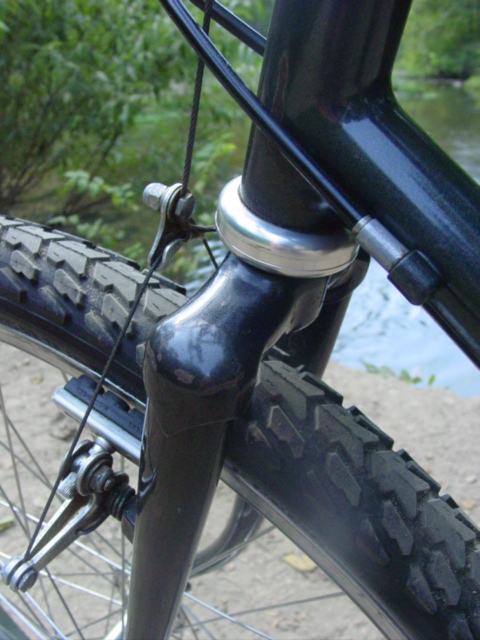

- HEADSET: Shimano 600

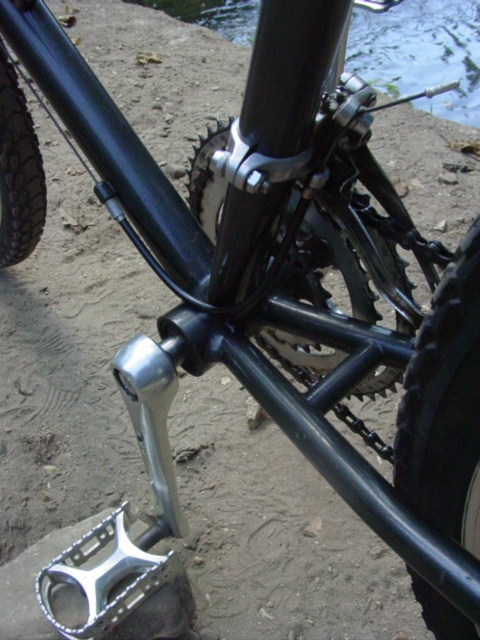

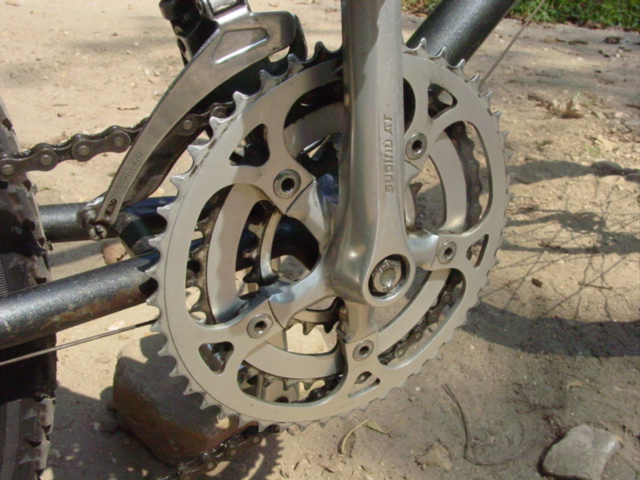

- CRANK: Sugino AT triple (48x38x24), 6/1983, 10/1983

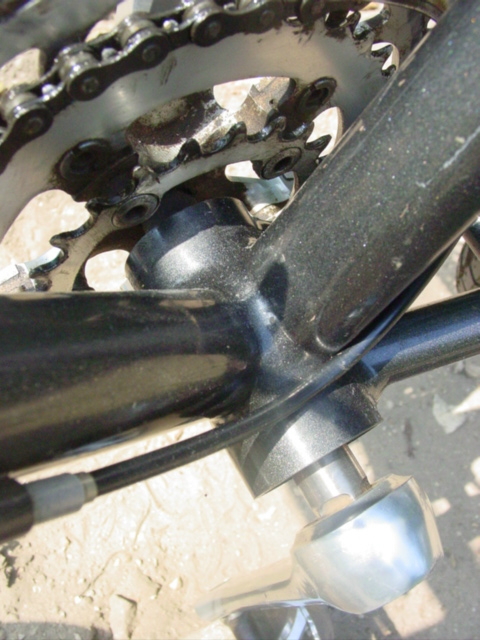

- BOTTOM BRACKET: Tom Ritchey sealed bearing

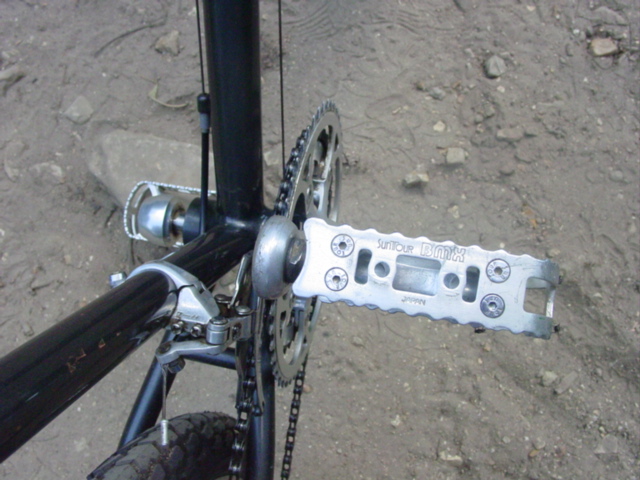

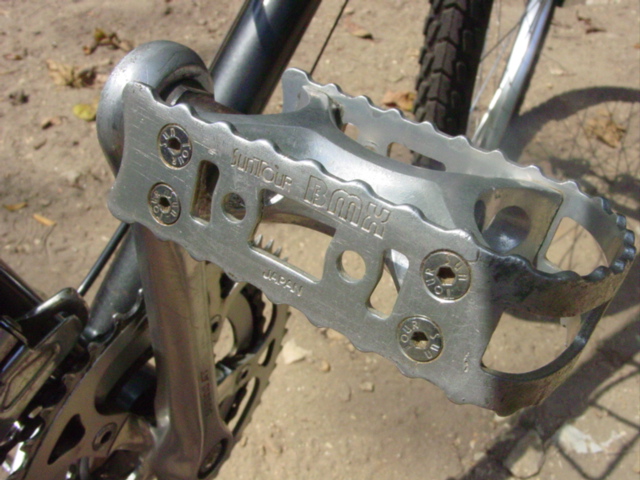

- PEDALS: SunTour BMX

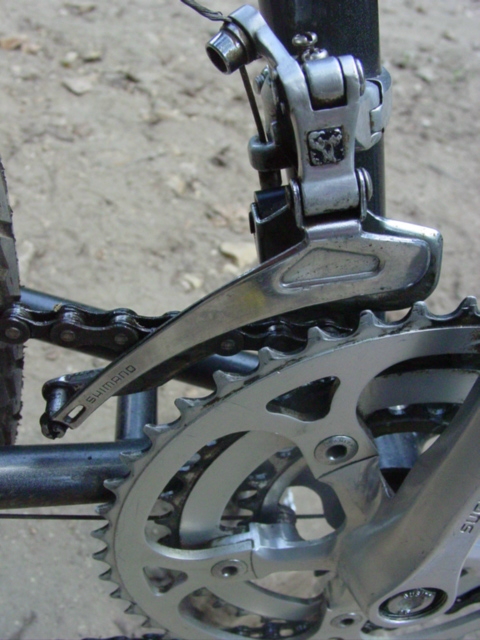

- FRONT DERAILLEUR: Shimano Deore XT, FD-M700, 10/1982

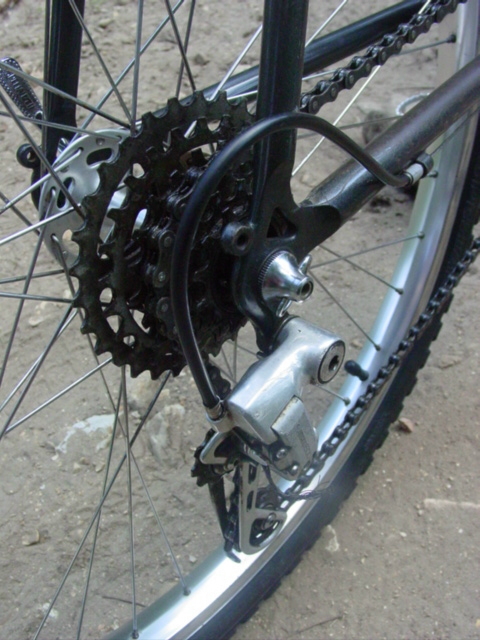

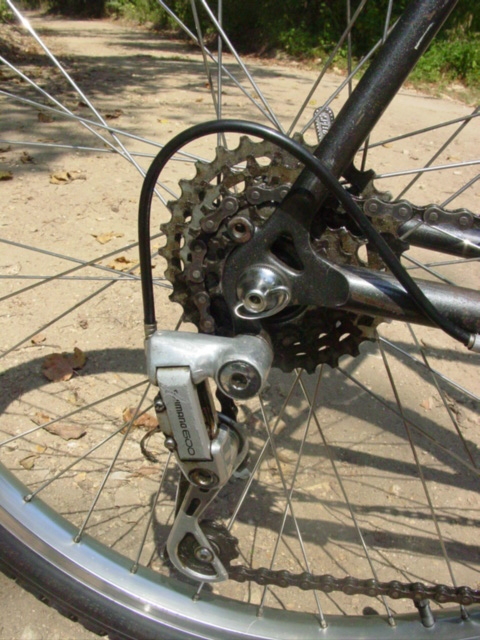

- REAR DERAILLEUR: Shimano 600, RD-6207, 1984

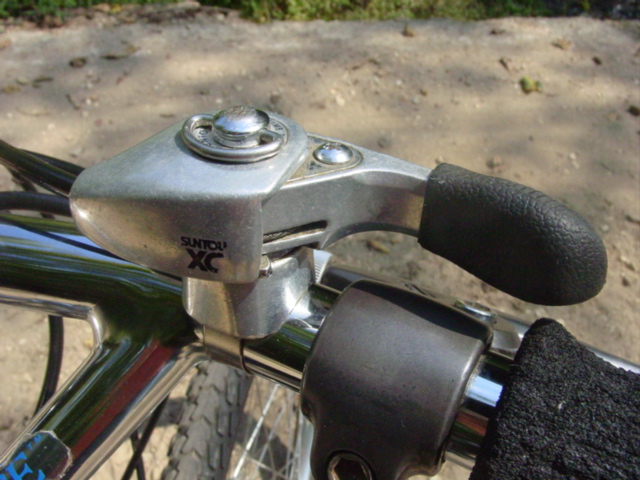

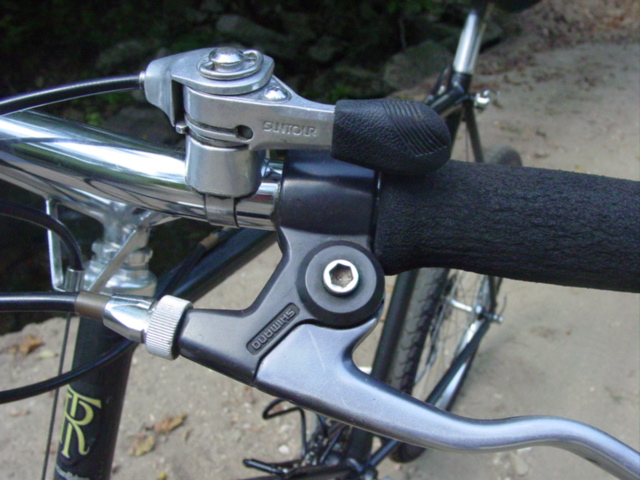

- SHIFTERS: SunTour XC Thumb

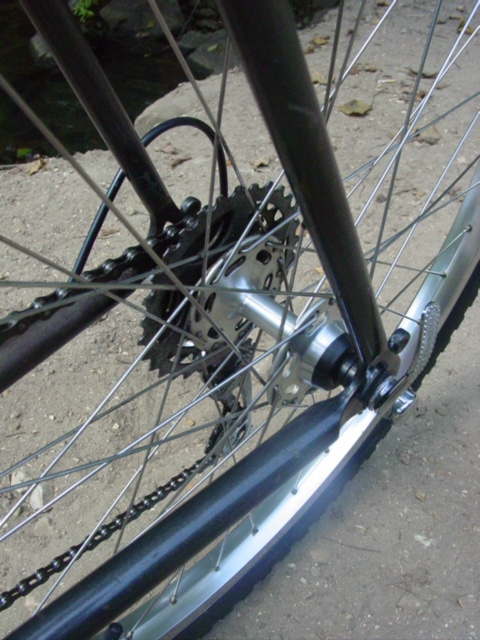

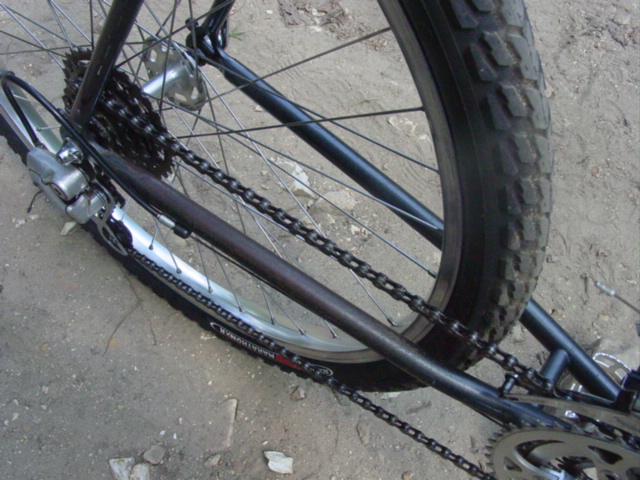

- FREEWHEEL: Shimano 600, 6-speed, (13-30), 8/1983

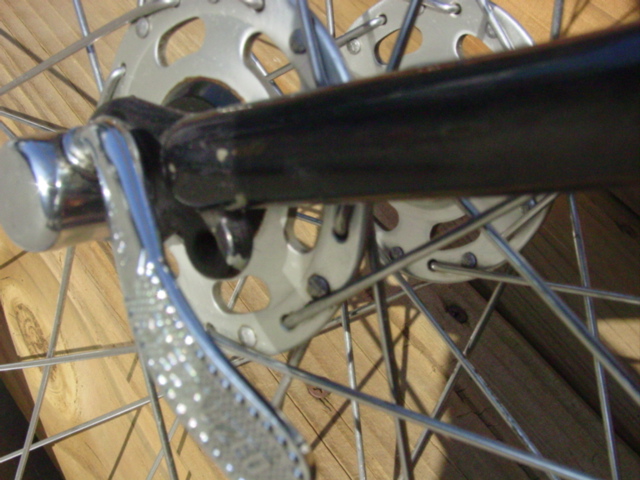

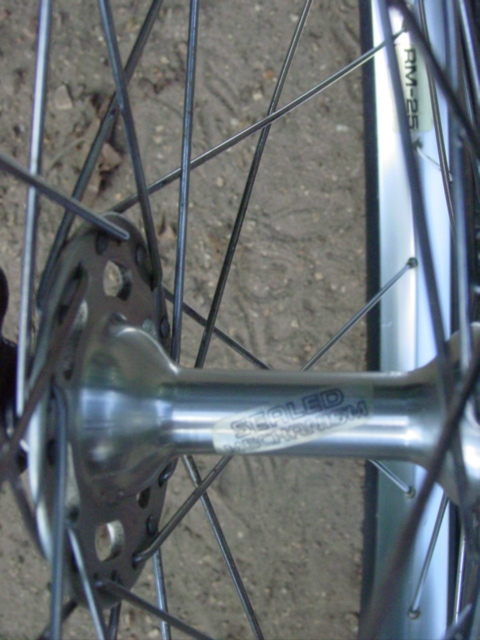

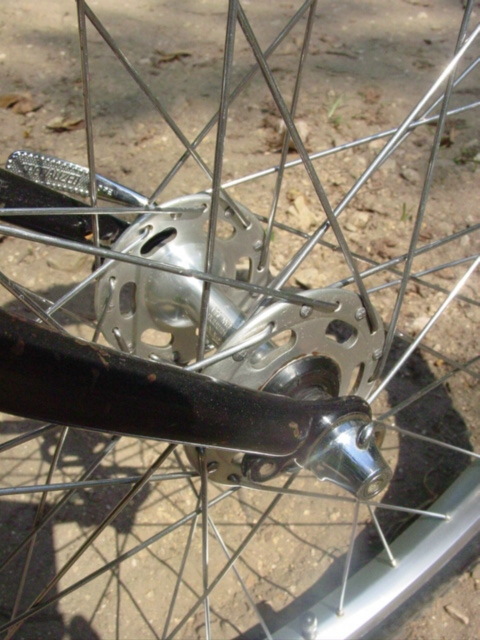

- HUBS: Shimano Deore XT, HB-MN72, 8/1983, 6/1983
- RIMS: Araya RM-25, 1985
- TIRES: Schwalbe Marathon XR*
- LEVERS: Shimano Deore XT, BL-M700, 1984

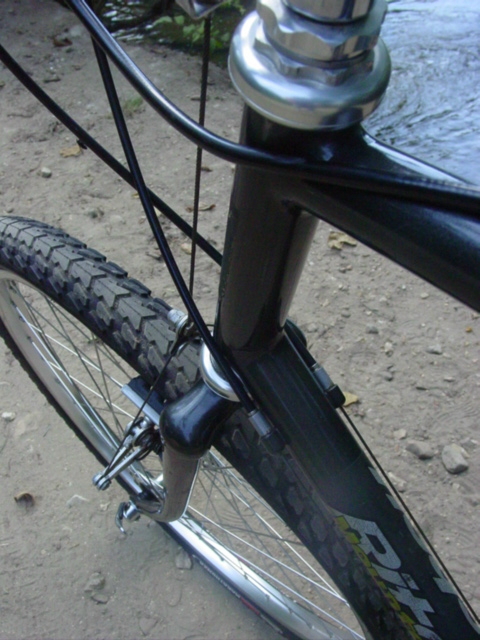

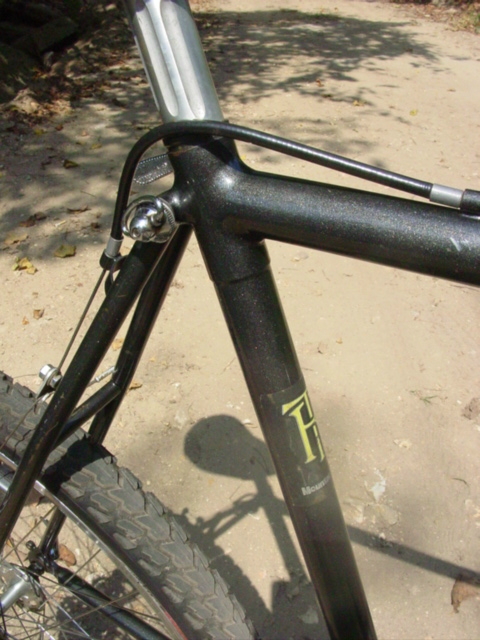

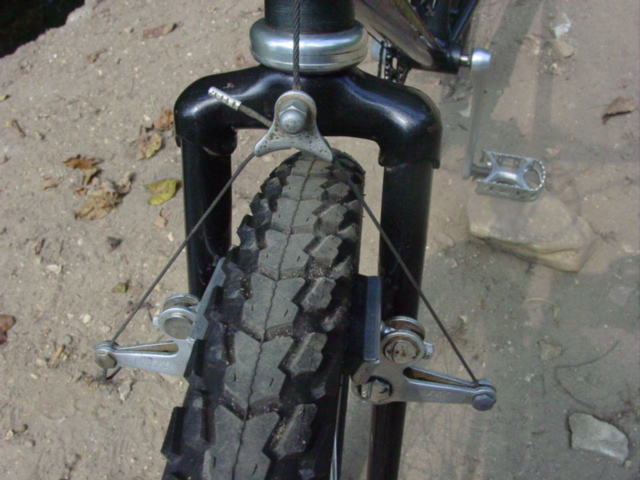

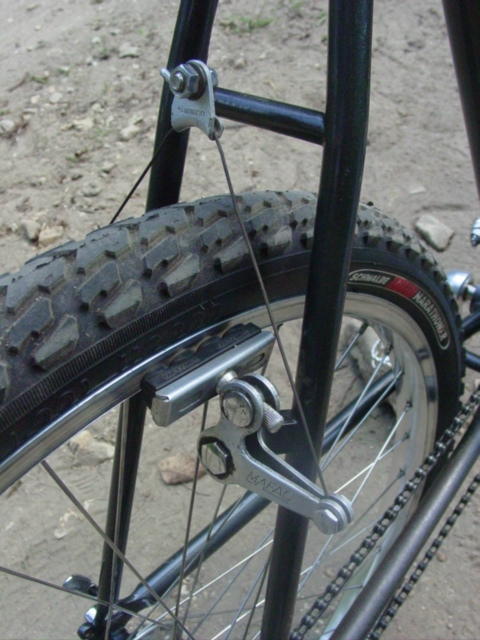

- CALIPERS: MAFAC Tandem Cantilever

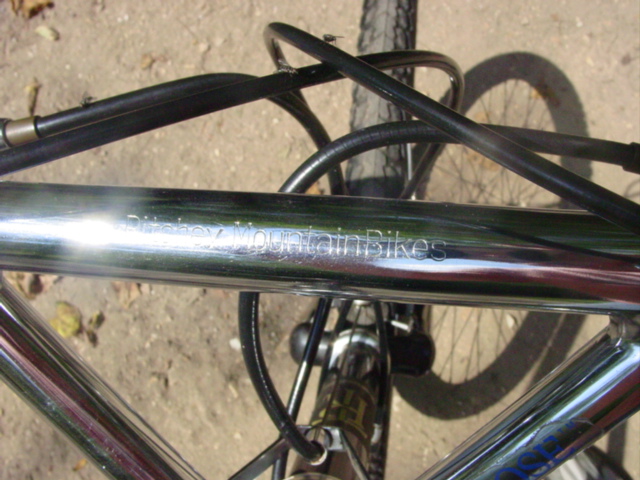

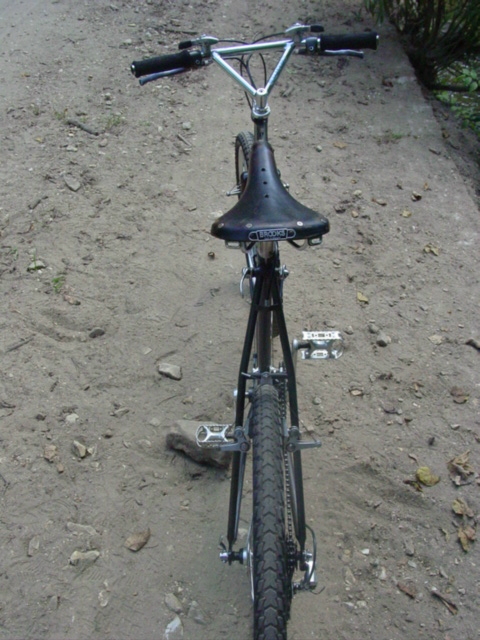

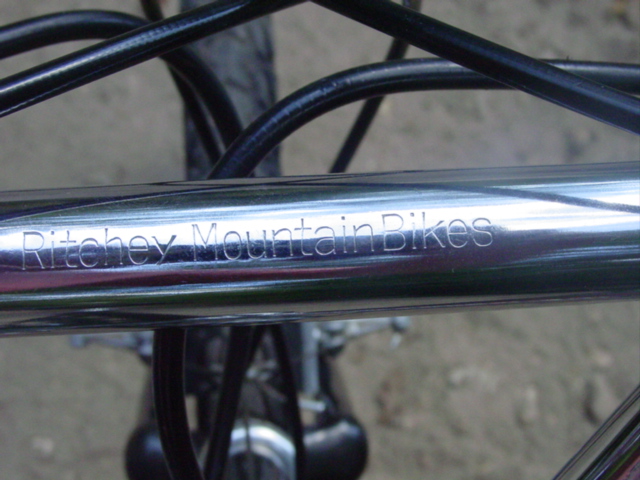

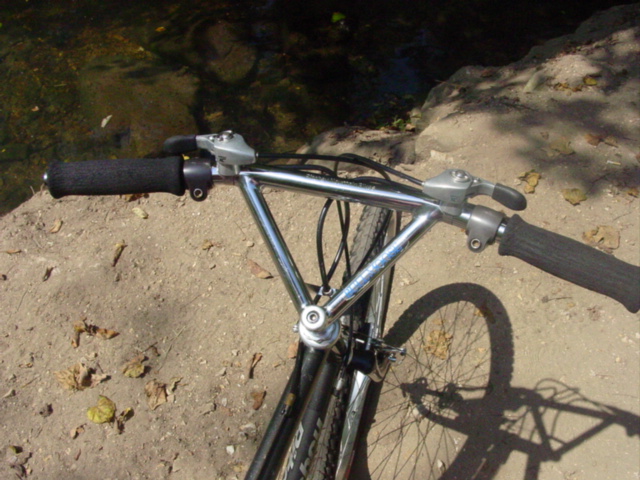

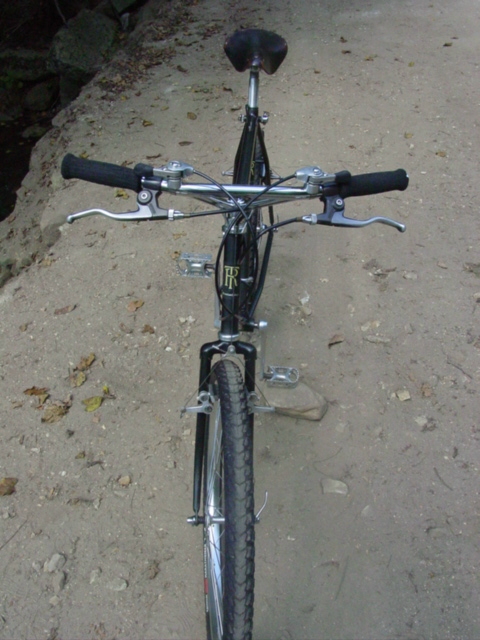

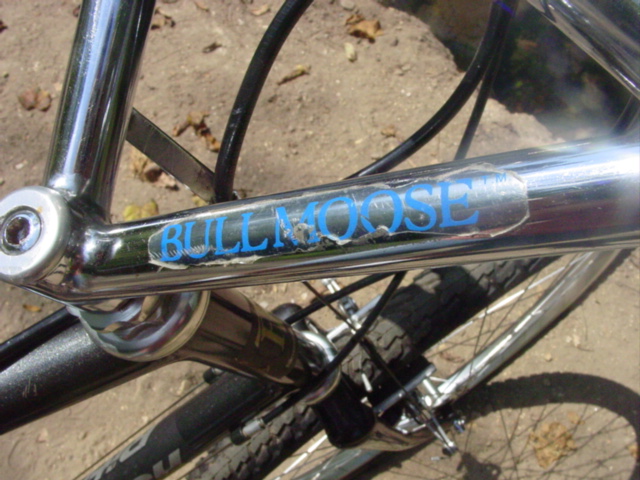

- BARS: Ritchey Mountain Bikes Bullmoose, fillet brazed steel
- STEM: Ritchey Mountain Bikes Bullmoose, fillet brazed steel

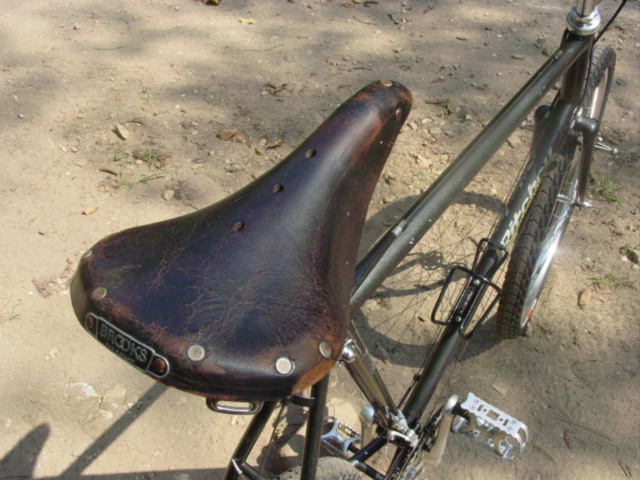

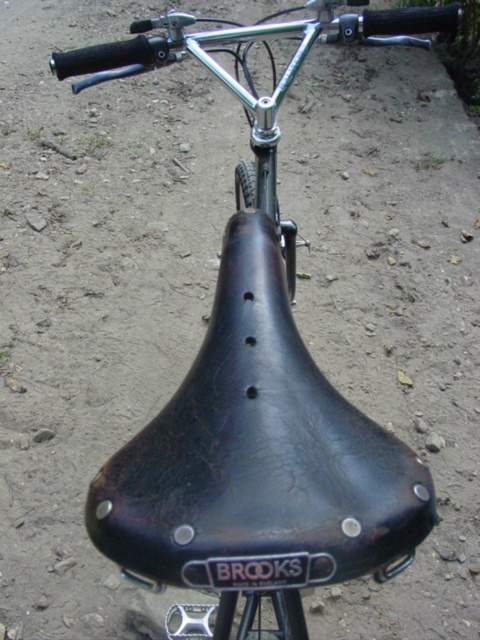

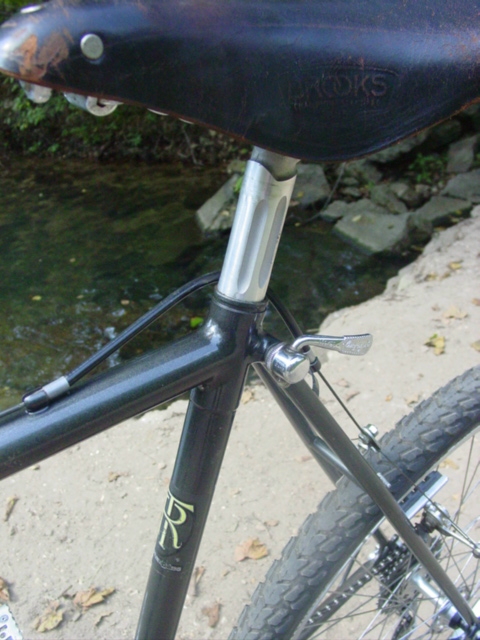

- SADDLE: Brooks B-15 Champion Standard**
- POST: SR Laprade, 1984**

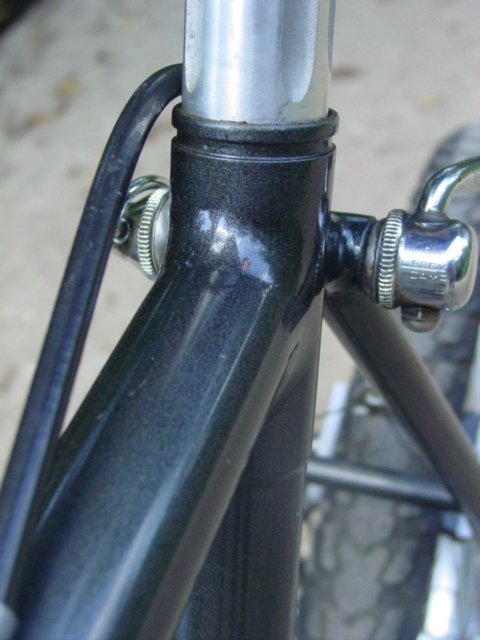

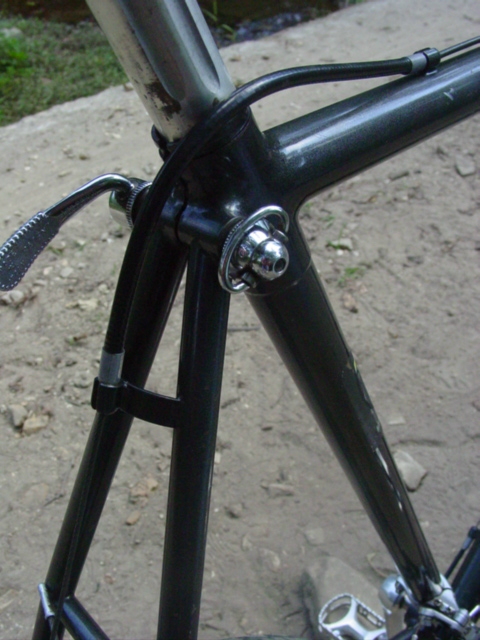

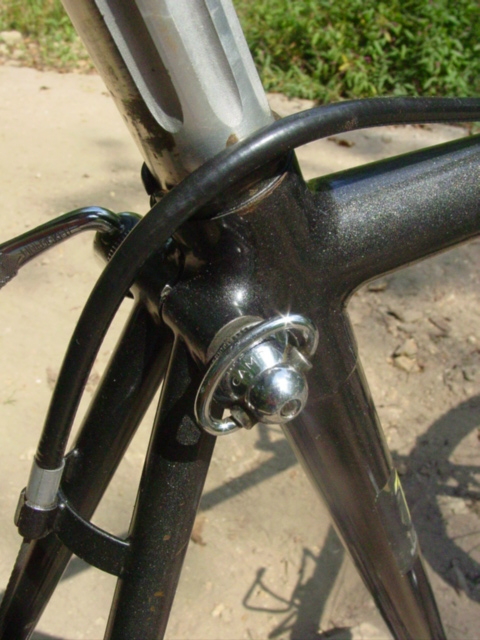

- POST Q/R: Campagnolo
Note: Asterisk (*) denotes known non-original parts. Asterisks (**) denotes known non-original (although correct) parts. I don't know the date of the SunTour XC shifters and I think they and the rims may not be original.
